COMPANY INFORMATION:
Hangzhou Bluesteel Machine CO.,LTD specialized in manufacturing and exporting:
1) wall & roof forming machine
2) step tile. Ridge cap roll forming machine
3) EPS/PU sandwich panel line
4) C&Z purlin machine
5) metal decking forming machine
6) shutter door roll forming machine
7) rain spout forming machine
8) slitting line
9) cut to length line
10) guardrail roll forming machine

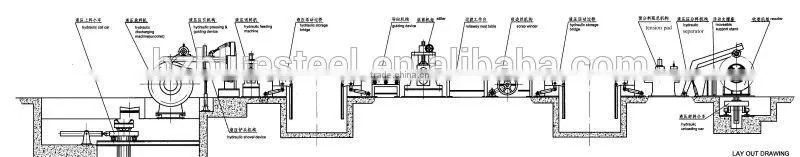

Workflow:
PRODUCT OVERVIEW:
TECHNICAL SPECIFICATION:
Material of processible coiled plate: apply for carbon steel plate δ b≤380Mpa;
- 1. Thickness of coiled plate: δ=0.3—3mm;
- 2. Width of coiled plate: slitting 1800mm;
- 3. Precision of slitting: width tolerance: ±0.1mm;
- 4. Slitting speed: 0—50m/min(adjustable) ;
- 5. Loading capacity of uncoiler: 20T;
- 6. Coil I.D: 508mm—610mm; two-step pattern
- 7. Coil O.D: ≤1600mm;
- 8. Main shaft diameter of slitter: 240mm; material 40Cr;
- 9. Width of slitting steel: ≥35mm;
- 10. Slitting blade: D240×D350×15; 42 pcs, cutting strips: 20 pcs;
- 11. Material of slitting blade: 6CrW2Si;
- 12. Hardness of blade: HRC58—60;
- 13. Recoiler I.D: D508mm, loading capacity: 20T
QUALITY CONTROL:
GUARANTEE AND SERVICE:
12 month guarantee after BL date for machine
24 hours technical support by email
Calling or door to door service
Use-friendly English software, Manual and video.
MORE PHOTOS FOR REFERENCE
STEEL COILS:
