Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Used Coil Slitting Line

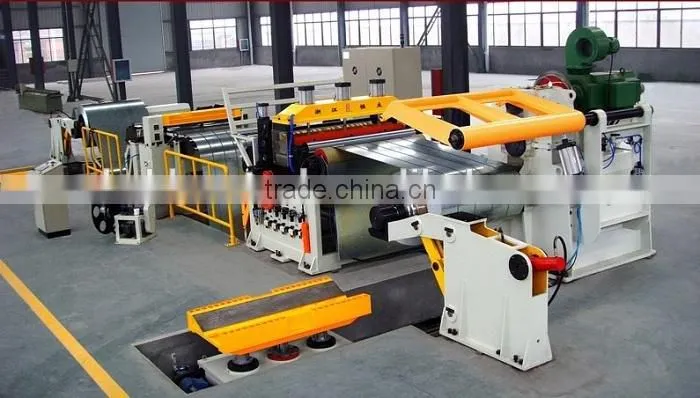

Used Coil Slitting Line
US$ 20,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
bluesteel
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal Sheet and Coil Slitting and Rewinding Machine, Galvanized Steel Coil Slitting Line for SaleUS$ 20,000 - 40,000MOQ: 1 Set -
Slitter Rewinder Machine, Metal Steel Coil Slitting and Rewinding MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Hot Roll Metal Slitting Machine Line With Decoiler and RecoilerUS$ 50,000 - 150,000MOQ: 1 Set
-
Used Steel Coil Slitting MachineUS$ 50,000 - 150,000MOQ: 1 Set
-
Galvanized Slitting Line Machine / Steel Coil Cold Roll Sheet Slitting Machine With High SpeedUS$ 20,000 - 40,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
bluesteel
Model Number
slitting line
Voltage
380V 3phase 50hz
Rated Power
300kw
Dimension(L*W*H)
36*2.2*2.2M
Weight
50000kgs
Warranty
14months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
metal slitting line with decoiler and recoilerstrong materal
high speed
plc control with automatic
metal slitting line with decoiler and recoiler
Material of processible coiled plate: apply for carbon steel plate δ b≤380Mpa;
- 1. Thickness of coiled plate: δ=0.3—3mm;
- 2. Width of coiled plate: slitting 1800mm;
- 3. Precision of slitting: width tolerance: ±0.1mm;
- 4. Slitting speed: 0—50m/min(adjustable) ;
- 5. Loading capacity of uncoiler: 20T;
- 6. Coil I.D: 508mm—610mm; two-step pattern
- 7. Coil O.D: ≤1600mm;
- 8. Main shaft diameter of slitter: 240mm; material 40Cr;
- 9. Width of slitting steel: ≥35mm;
- 10. Slitting blade: D240×D350×15; 42 pcs, cutting strips: 20 pcs;
- 11. Material of slitting blade: 6CrW2Si;
- 12. Hardness of blade: HRC58—60;
- 13. Recoiler I.D: D508mm, loading capacity: 20T
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2014
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
