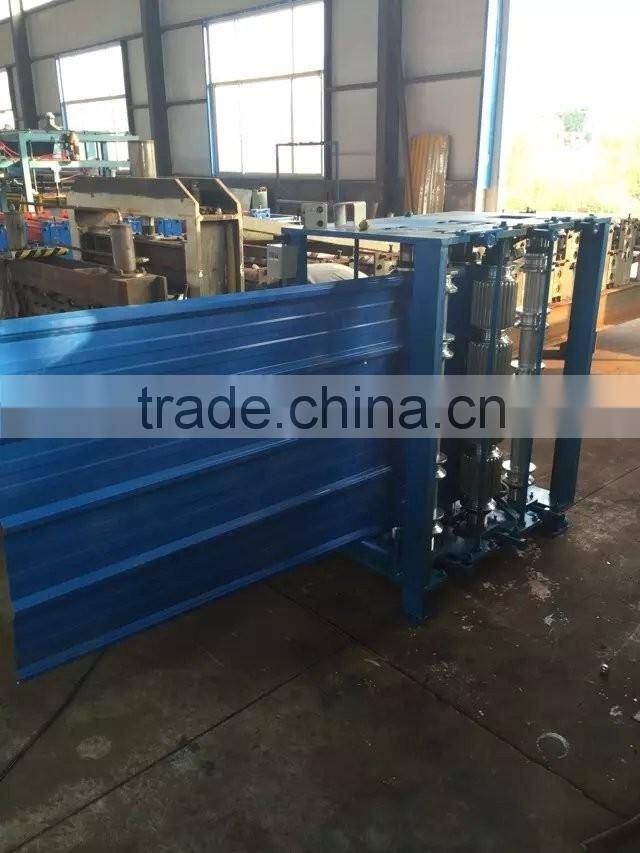

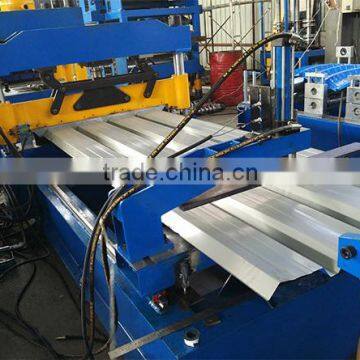

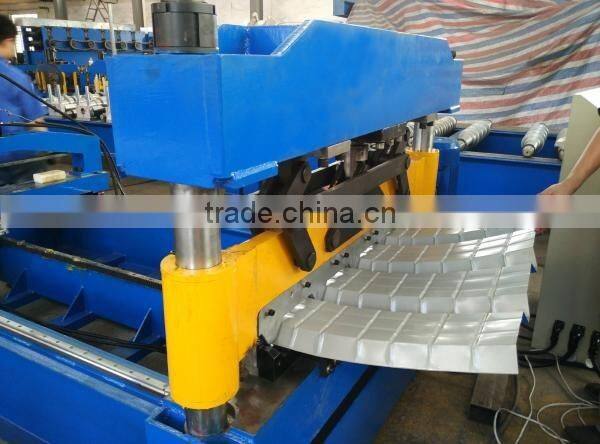

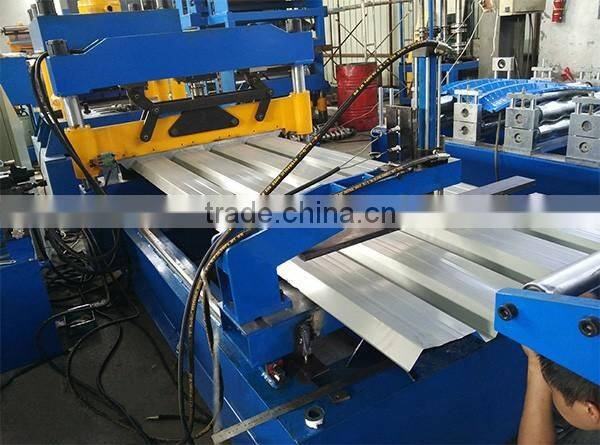

Help CenterRound Metal Sheet Roof Roller Roof Sheet Crimped Tile Making Machine , Metal Roof Panel Bend Machine
Related Products
-
Machine Arch Metal Roof Sheet Panel Bend Crimp Machine Archy Roof Sheet Cambered Vaulted Aluminum Roof Tile Making MachineUS$ 5,000 - 15,000MOQ: 1 Set -
6M Manually Metal Steel Sheet Bending And Shearing MachineUS$ 20,000 - 150,000MOQ: 1 Set
-
Automatic Sheet Metal Cutting And Bending Machine Hydraulic Aluminium Bending MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Hot Sales Galvanized Arch Metal Roof Panel Curving Machine, Corrugated Roof Sheet Crimping MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Factory Direct Small Steel Manual Forming Machine, Manual Metal Sheet Bending MachinesUS$ 20,000 - 40,000MOQ: 1 Set
metal roofing roll forming machine
aluminum roofing sheet machine price
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Adopts Mitsubishi PLC to machine controll system,use more stable machine parts.
4. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
5. Supply machine parts at cost price
6. Technician overseas serve available
1.Technical parameter:
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil |
Thickness |
0.3-0.7mm |
|
Width of steel sheet |
According to roofing profile |
|
Yield strength |
235-345Mpa |
|
Feeding Rollers material |
45#Chrome steel |
|
Crimping die material |
Cr12 mould steel |
|
Crimping speed |
12-15times/min |
|
Crimping length |
min. 25mm, max. crimping length, no limited. |
|
Min. bending radium |
300mm |
|
Crimping type |
Hydraulic |
|
Size of machine |
2500mmX1500mmX1600mm |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Electric voltage |
380V/3Phase/50HZ (or according to customers requirement |
|
Main motor power |
2.2 KW |
|
Hydraulic station power |
5.5 KW |
|
2. Components of machine:
Feeding table |
1set |
Feeding rollers system |
1set |
Hydraulic crimping system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
3. Process flow:
Feeding profiled sheet--Crimping & Bending—Outputs curving sheet
4. Type one with PLC - metal tile making machine
5.Type two without PLC -- aluminum roofing sheet roller former

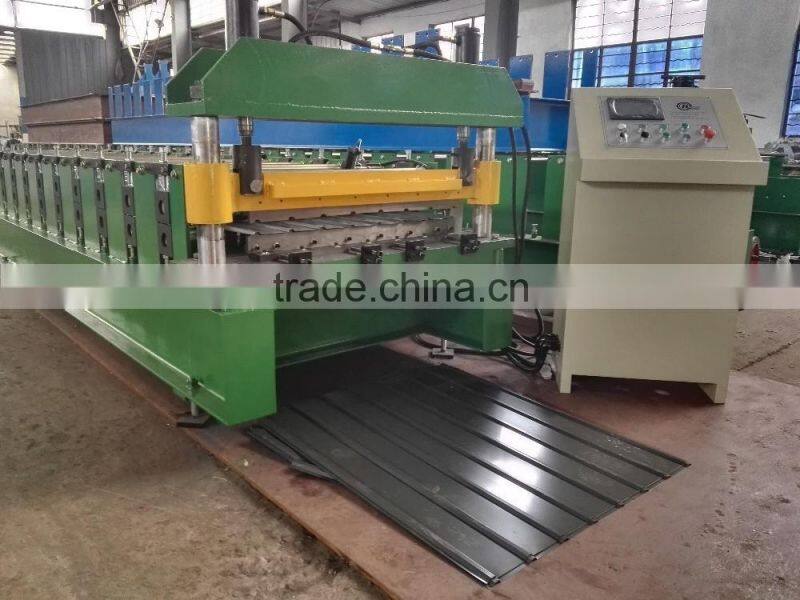

6.Metal roof tile making machine , metal roof sheet roll forming machine
