1. Introduction:
DPP-260K Automatic Al-Plastic(AL/AL) Blister Packing Machine is our advanced equipment designed under updated improvement. It adopts the integral technology applying frequency inverter for speed control and mechanism, electricity, light and air to machine. Its design is in strict compliance with GMP standard and takes lead in the blister packer's field. Featuring advanced functions, easy to operated, high output, the machine is the most ideal packing equipment for large and medium size pharmaceutical enterprises, health food and food stuff trades.
2. Performance & Characteristics:
1) Adopts top brand PLC controller with touch screen displayed in Chinese and English, frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
2) With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test, failure automatic debug and alarm, automatic protection and stop running.
3) The machine station module type design of level frame, good sight, safe and convenient operation.
4) Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.
5) The special design of moulds in rectangle shape, ladder type fixing, provide much convenience and easy to replace moulds. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft. Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
6) The machine has been designed into separated body, which is easy to move into lifts or workshops.
3. Technical Parameters:
Model |
FG-PZ260K |
Punching frequency |
AL/Plastic: 20-80times/min |
AL/AL: 15-30times/min | |
Max forming depth |
AL/Plastic: 22mm AL/AL: 18mm |
Adjustable scope of travel |
30~120mm (Made to order 30~140mm) |
Clean compressed air |
0.6-0.8Mpa |
Air consumption |
0.25-0.5m3/min (user prepared) |
Power |
380v, 50hz, 9.6kw |
Dimension |
4500x760x1620mm |
Weight |
1800kg |

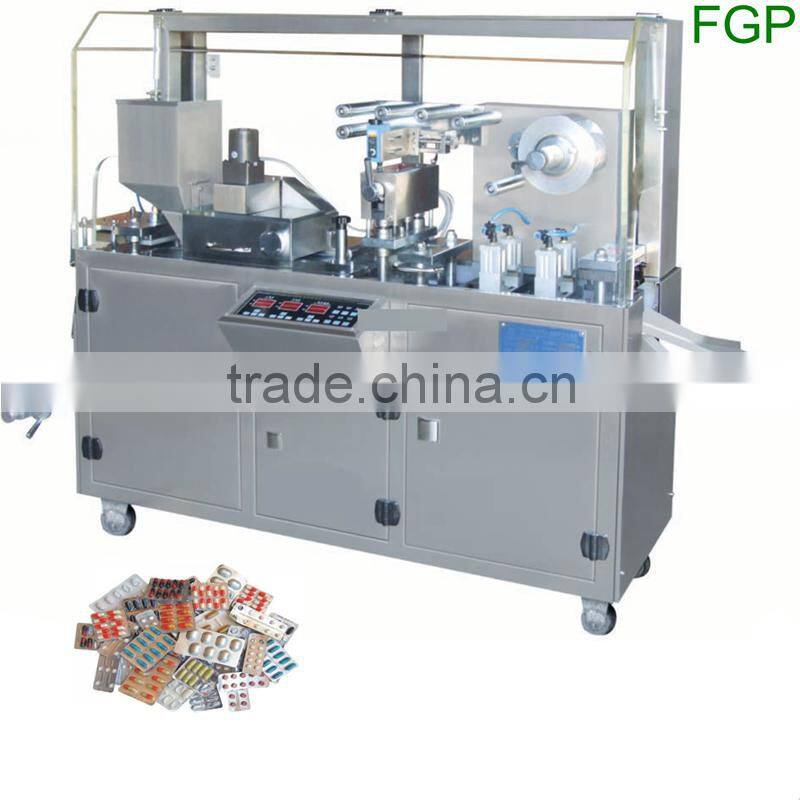

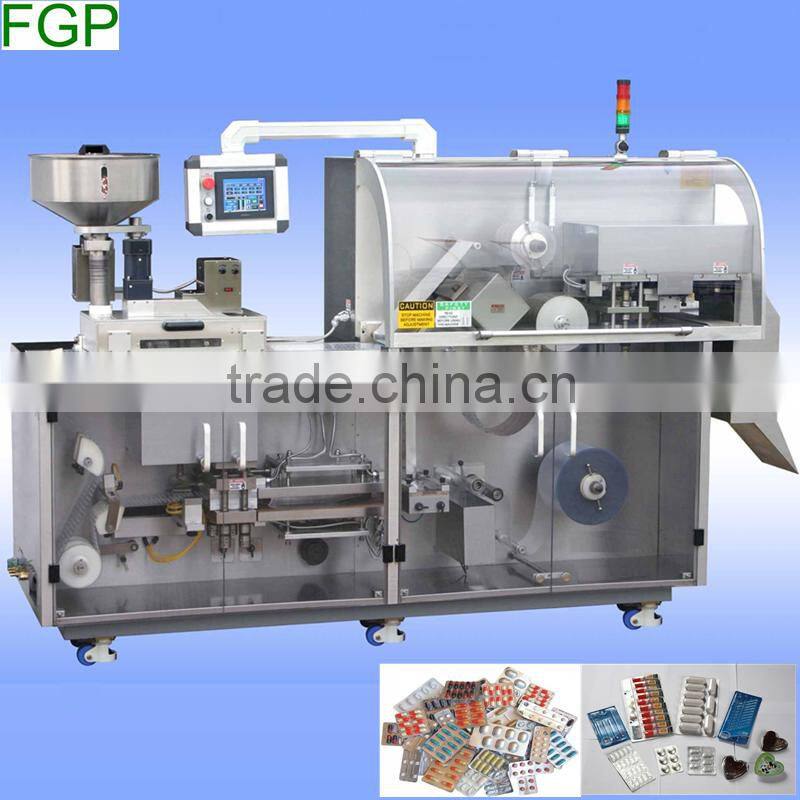

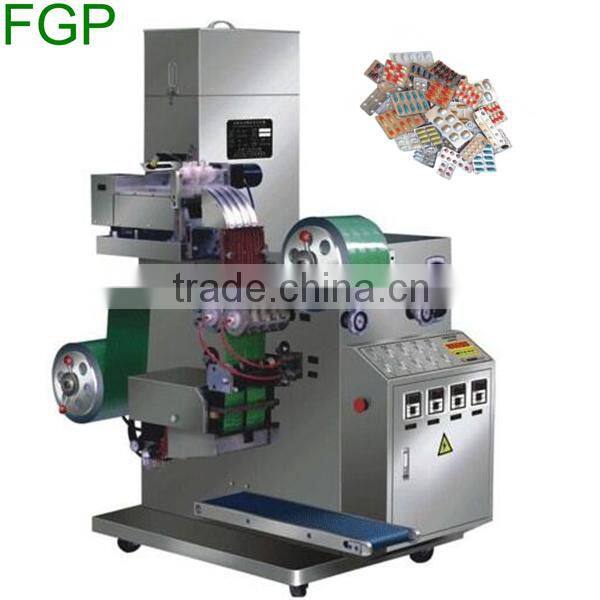

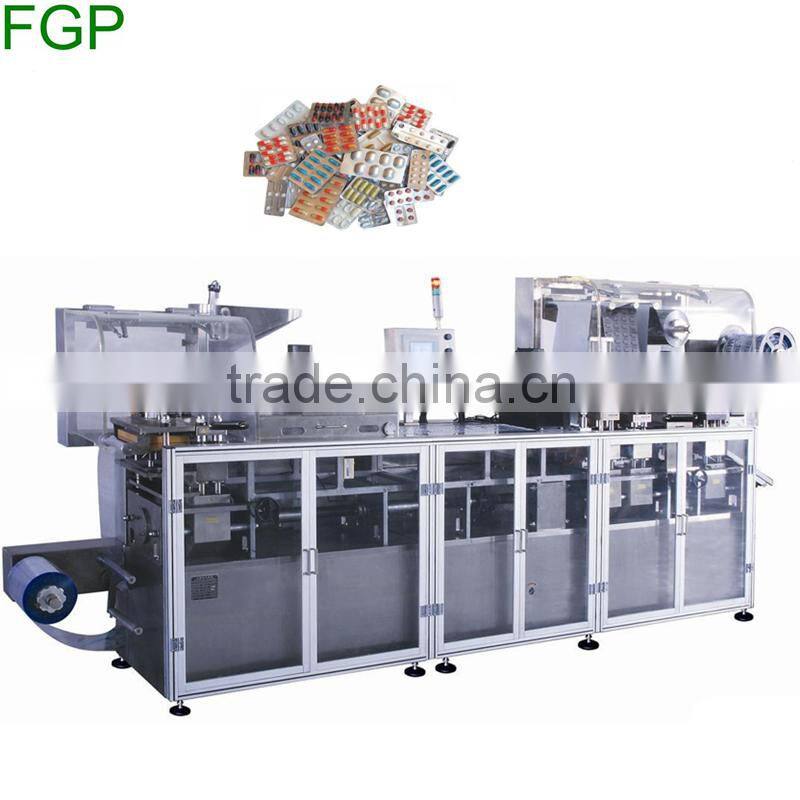

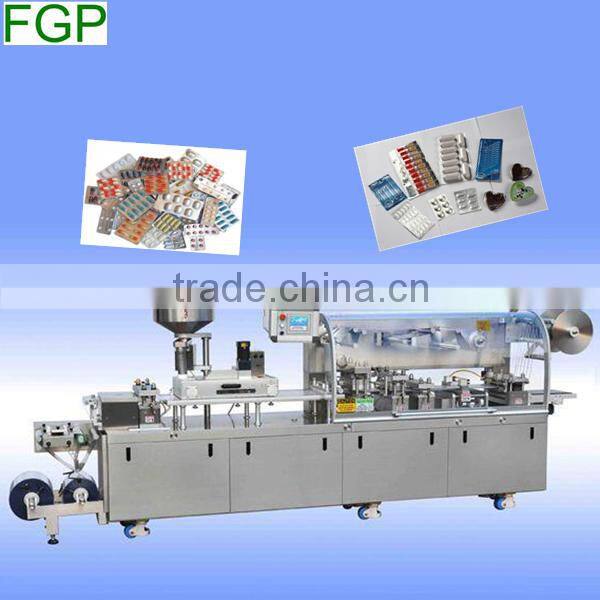

4. Sample machine photos for your reference only:
