1.Company Profile
Toppo Machinery Co., Ltd. is professional on manufacturing Automatic IBR Color Coated Metal Wall Panel Roll Former. We provide an extensive line of products, which includes roof and wall panel machine, tile roof machine, purline forming machine, floor decking machine and other associated equipments.
what makes us better than others?
1. Professional |
a.15 years' rich experience; b.Specialized in Automatic IBR Color Coated Metal Wall Panel Roll Former since 1998; c.Keeping improving the quality. |
2. Low price |
a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. In short, we can save your money from every part. |
|
3. Fully automatic, easy operation |
a. Equiped with PLC : Ensuring high accuracy and easy operation. b. Automatic and Easy Operation: You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. c.Steady Performance. |
4. OEM / ODM |
a.Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. b.Customers’ design, color & logo are accepted. |
5. TWO-Years warranty, whole life service. |
a.Keep troubles far away from you. b.Within the TWO-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems . |
2.Brief Introduction
The wall panels made by our Automatic IBR Color Coated Metal Wall Panel Roll Former are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. We can also make other profiles as you required.

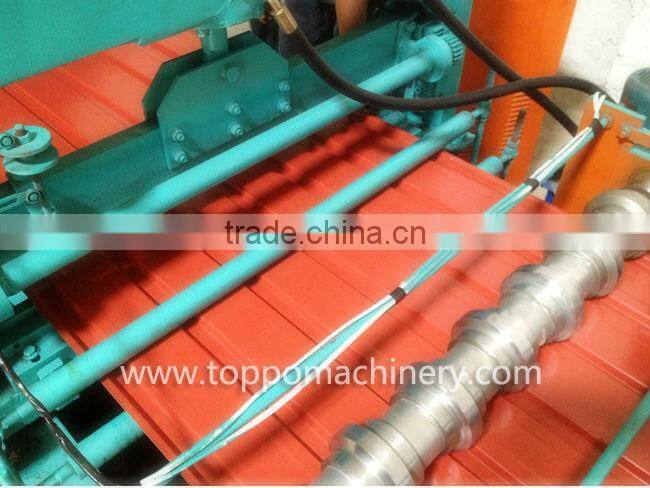

3.Working Flow for Automatic IBR Color Coated Metal Wall Panel Roll Former
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
4.Technical Details
|
a. General
| |
Model Number |
YX14-123-738 Automatic IBR Color Coated Metal Wall Panel Roll Former |
Suitable Material |
Q235 or equivalent |
Material Thickness |
0.25-0.8 mm |

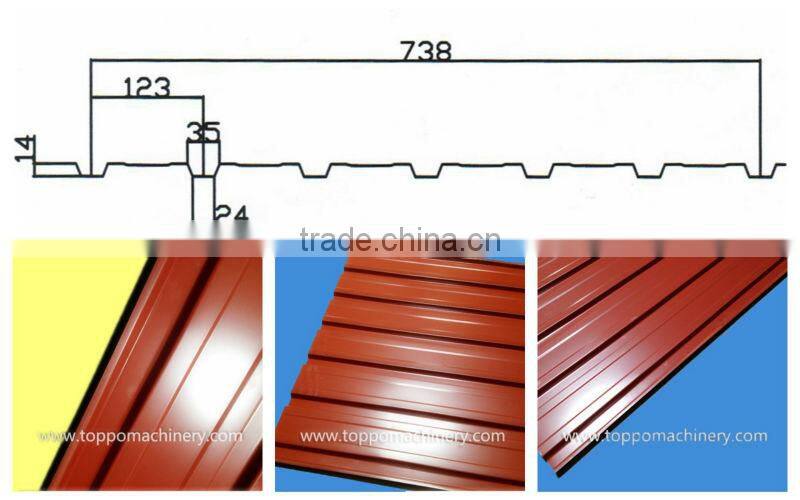

Covered Width |
738 mm |
Wave Height |
14mm |
Material Width |
914 mm
|
Dimension |
about 7.1*1.3*1.25m (L*W*H) |
Working Space |
about 17.1*2.8m (L*W) |
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
Cutting |
Automatically stop and cutting when it comes to the set length. |
Forming Speed |
0-15m/min |
|

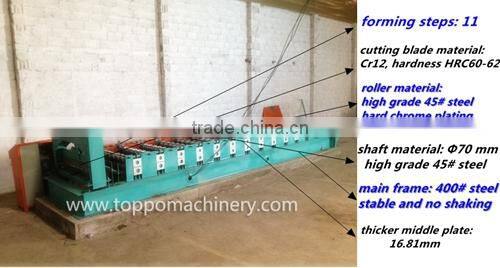

b. Components Details
| |
Roller Material |
High grade 45# steel. Hard chrome plating, 0.05mm. |
Main Frame |
400#steel. More stable and no shaking. |
Middle Plate |
16mm. We use thicker plates to ensure stability of our products.
|
Forming Steps |
14 |
Shaft Material |
Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
Cutting Blade Material |
Cr12, hardness HRC60-62.Treating process: heat treatment- plane abrasion-wire electrode cutting. |
c. Electric Components | |
Suitable Power |
380V, 50 Hz, 3 phase or according to your need. |
Screen |
5.7 inch touch screen, easy to operate |
PLC |
Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement Device |
Omron, made in Japan. It features with high accuracy and stability |
|
| |
5.Loading into container for Automatic IBR Color Coated Metal Wall Panel Roll Former
a.Need one 40ft container.
b.Main body of machine fixed to container by 8mm diameter steel wire, rollers and shaft is covered with anti-rust oil.
c.Spare parts in carton box.
6. Sales Map
Started from 1998, Toppo Machinery Co., Ltd have exported high quality Automatic IBR Color Coated Metal Wall Panel Roll Formers to more than 20 countries, including: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA...
a. TWO-Years product warranty.
b. Training and installation available
c. The technical support for the whole life
