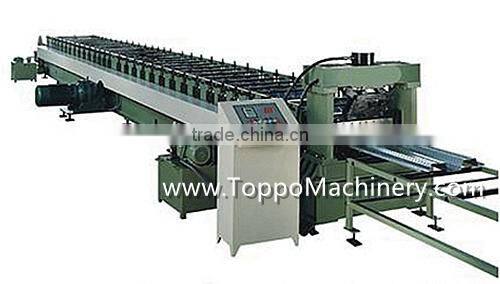

Automatic Steel Floor Decking Profile Production Line
- 30 Set / Sets per Month
- Tianjin Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Floor | Production Capacity: | 0-12m/min | Place of Origin: | Hebei, China |
Brand Name: | Toppo Machinery | Model Number: | YX51-226-678 | Power(W): | 15kw |
Voltage: | 380V, 50HZ, 3 phase | Dimension(L*W*H): | about 1.68*1.35*1.6m(L*W*H) | Certification: | CE |
Warranty: | 2 years warranty, lifelong service | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.Company Profile
Toppo Machinery Co., Ltd. has specialized in manufacturing Automatic Steel Floor Decking Profile Production Line for 15 years. We provide kinds of high quality products, such as roof & wall panel machine, roof tile machine, purline forming machine, floor decking machine and so on. All these equipments are certificated by CE. Besides, our technical engineers have kept improving both the mechanical capacity and apparance of our machines.
Kinds of Products with Good Quality
Engineers Keep Improving the Quality
what makes us better than others?
1. Professional | 15 years' rich experience! a.Specialized in Automatic Steel Floor Decking Profile Production Line since 1998; b.Keeping improving the quality. |
2. Low price | Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
3. PLC | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
4. OEM / ODM | Customers’design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
5. TWO-Years warranty, whole life service | Keep troubles far away from you! Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems . |
2.Brief Introduction

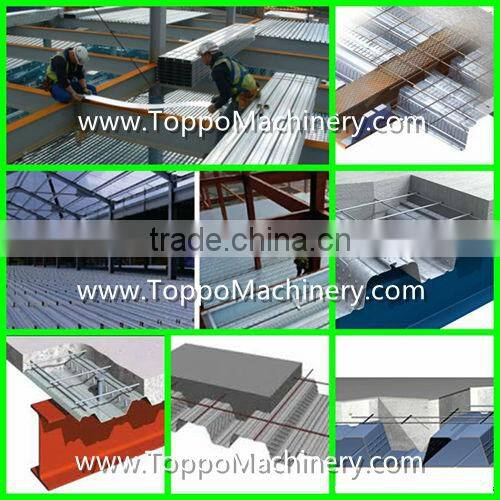

The floor decks manufatured by our Automatic Steel Floor Decking Profile Production Line are beautiful and durable. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
We can also make other profiles as you required.
3.Working Flow for Automatic Steel Floor Decking Profile Production Line
Sheet decoiling-Sheet guiding-Sheet roll forming-Sheet length measuring-Sheet cutting-Sheet surpporting
4.Technical Details
a. General | |

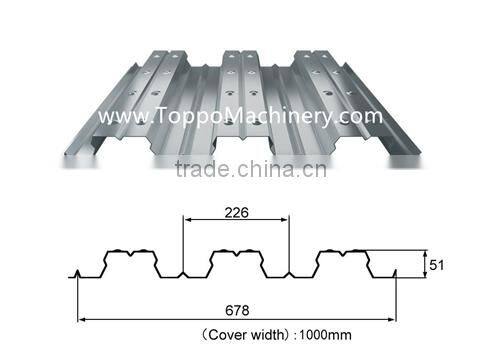

Model Number | YX51-226-678 Automatic Steel Floor Decking Profile Production Line |
Suitable Material | Galvanized steel sheet,Q235 or equivalent. |
Material Thickness | 0.8-1.5mm |
Material Width | 1000mm |
Coverd Width | 678mm |
Wave Height | 51mm |
Dimension | 1.68*1.35*1.6m(L*W*H) |
Sheet Length | Any length as you want, It is controlled by PLC which can ensure the accuracy within ±1mm. |
Cutting | Automatically pause and cut when it comes to the set length. |
b. Components Detail | |
Roller | High grade 45# steel. Hard chrome plating, 0.05mm. |
Main Frame | 400# steel. More stable and no shaking. |
Middle Plate | 20mm |
Forming Steps | 20 |
Shaft | Φ85 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. |
Cutting Blade | Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting. |
c. Electric Components | |
Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
Screen | 5.7 inch touch screen, easy to operate |
PLC | Delta DVP14ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
Frequency Converter | Delta VFD-M. It has the advantge of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
Length Measurement | Omron, made in Japan. It features with high accuracy and stability |
5. FAQ
1.How to get a accurate quotation from us?
a. Material width and thickness. b. drawing of profile.
As for the drawing, you can provide by yourself, or choose from our standard profiles.
2.How to repair&maintain our Automatic Steel Floor Decking Profile Production Line?
a.Normally,the machine can work without problem for at least 5 years.
b.If you have problem, do not change the machine by yourself. Tell us the problem, and we help you to solve it step by step.
3.What policy for broken parts?
Within the TWO-YEARS period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .after two years,you need to buy by factory cost.
6. Sales Map
Since 1998, Toppo Machinery Co., Ltd has exported high quality Automatic Steel Floor Decking Profile Production Lines to more than 20 countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on.
a. TWO-Years product warranty.
b. Training and installation available
c. The technical support for the whole life
8. Contact US
If you have any questions for the Glazed Color Roof Tile Forming Machine, send your Inquiry Details in the Below, Click "Send" Now!
Or contact me diffrect by email or chat.
Toppo Machinery Co., Ltd | |
| |
BotouCity, Hebei Province, China | |
0086-15631793989 | |
ToppoMachinery | |
www.YouT/ToppoMachinery |
