Help CenterChina Spun Pile End Plate
Related Products
Specifications

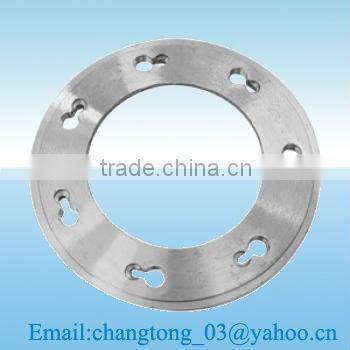

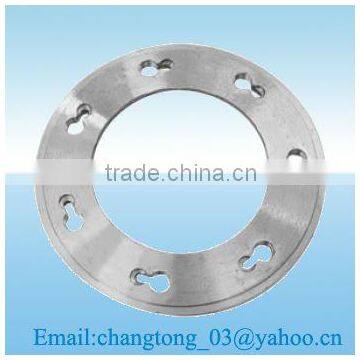

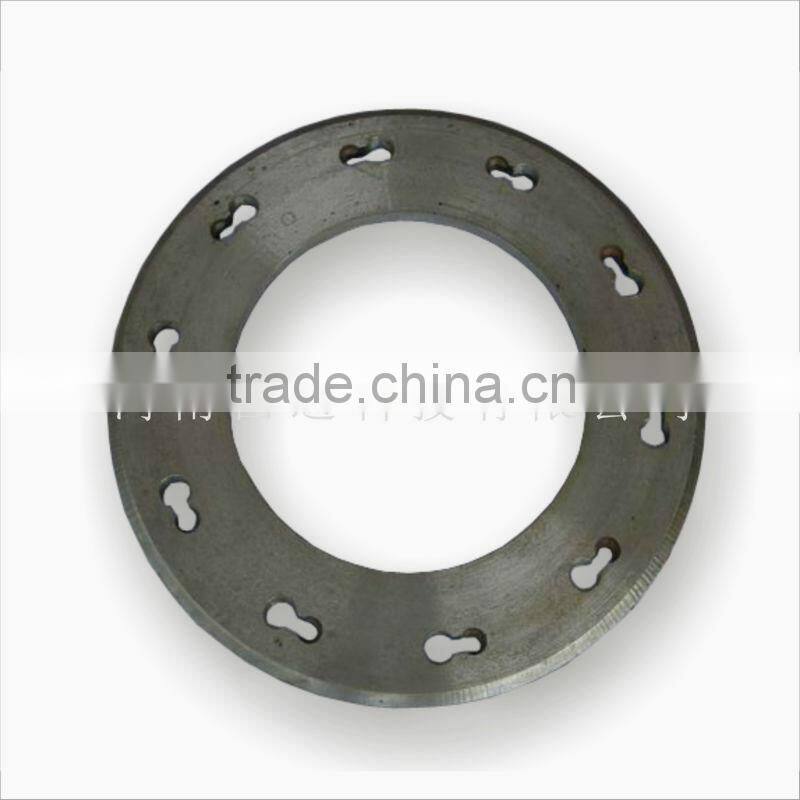

spun pile end plate1.factory offer, best price in China
2.China&Vietnam&Malaysian&Indonesian standard
3.customize available
China end plate
Applying area
PC, PHC piles such prestressed concrete piles. it's uesd for connection and fixed of the steel bar
Size range
Main diameter:400mm, 500mm, 600mm. other size need make new moulds, pls provide your drawings first.
Thickness:14mm,16mm, 18mm,20mm. other pls negotiate with me.
PC steel bar hole:7.1mm, 9.0mm, 10.7mm other size pls mention first.
PC steel bar head16-20mm, other size pls tell us.
Bolt size:M22,M27
More details pls see below chart:
| End plate specifications of Chang Tong Technology | ||||
| Outside Diameter(mm) | 400mm | 500mm | 600mm | |
| Diameter*width*thick (mm) | Width below100 | 400*60*14 | ||
| 400*60*16 | ||||
| 400*95*16 | ||||
| 400*95*18 | ||||
| 400*95*20 | ||||
| Width above 100 | 500*102*18 | 600*111*18 | ||
| 500*102*20 | 600*111*20 | |||
| 500*102*24 | 600*131*18 | |||
| 500*125*18 | 600*131*20 | |||
| 500*125*20 | ||||
| 500*125*24 | ||||

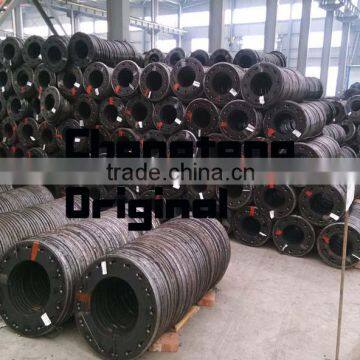

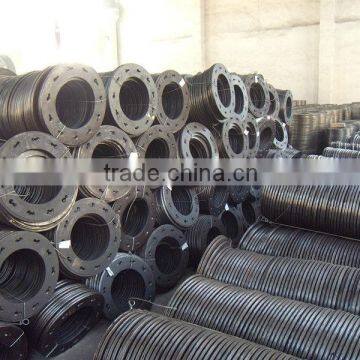

These traditional details are all stock products, delivery will be fast. Other size we need make new moulds, and delivery time will be longer.
3.Package details:

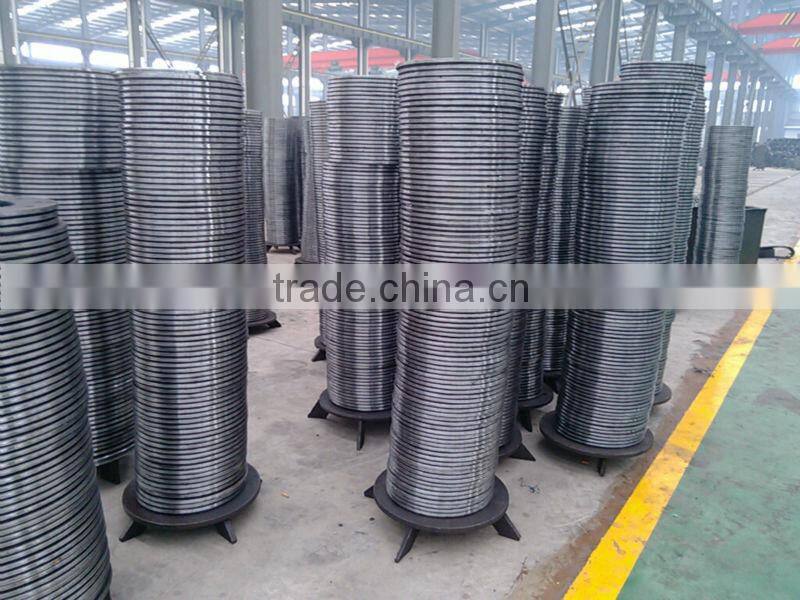

wood or steel pallet, iron cable fixed, Easy for lifting,and loading to container.
4.Industrial standard:

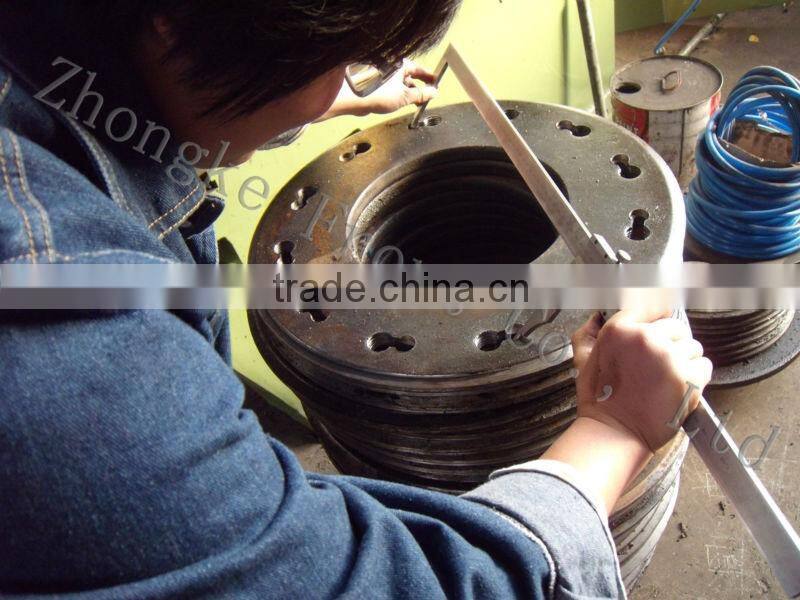

All the process and final test go according to GB/T700-2006 and Prestressed Concrete Piles Draft series 104G409 these two governmental requirements.
Also you can send your requirements to me, and our engineers will check with your side.
Phone: 86-371-55018663
Cellphone:86-13949017266
English Website:
Chinese Website:
No.9 Chaoyang Road, Industrial Demonstration Zone,Gongyi City, Henan Province,China
Zipcode:451200
Welcome pay a visit to us, or contact with us. Anytime, we will provide reply at the first time and best serve for you.
