Ozone water machine,oxygen concentrator medical ozone generator
The OZ series products are corona discharge type ozone generators, with advanced IGBT power supply and generation chambers utilizing dehydroxylation quartz glass structure.
The special back flow water design, modular circuit, anti-oxidant dielectric components, connection and pipelines have ensured the products have longer lifespan, bigger corona
discharge area, lower temperature and higher ozone concentration.
Features:
- Air-cooling, step-less Ozone output adjustment
- Special back flow prevention
- Long lifespan of the discharge bodies
- Stainless steel enclosure
- 60L/Min air-compressor integrated
- Compatible with air or oxygen source
Air source
Using the oxygen (cylinder gas or oxygen generator) air source; or using the clean dry air source to the ozone generator, but the pressure must be ≤0.2MPa(≤2kgf/cm²); when using the oxygen gas source, the medical oxygen gas regulator must be used; when inputting the compressed air from outside, it requires to meet the requirements of pressure, when not meeting the requirement, the pressure regulator must be installed.
When oxygen gas source is inputted from outside, the related using standard must be referenced.
Type |
OZ-3G |
OZ-5G |
OZ-7G |
OZ-10G |
OZ-15G |
Parameter | |||||
|
Ozone output (g/h)when the oxygen is inputted |
3 |
5 |
7 |
10 |
15 |
|
Ozone output (g/h)when the dry air is inputted |
2.5 |
3.5 |
3.5 |
7 |
9 |
Cooling type |
Air cooling |
||||
Max. ozone density (g/m33) |
Oxygen source: 25-50 dry air source: 5-15 |
||||
Length X Width X Height mm |
350×250×520 |
350×250×580 |
350×250×630 |
||
Weight kg |
11 |
12 |
12 |
13 |
13 |
Power W |
140 |
160 |
160 |
180 |
200 |
Max. Operation Current |
≤0.3 A |
≤0.35 A |
≤0.40 A |
≤0.45 A |
≤0.55 A |
Interface Dimension |
φ6.5mm, you can also select the φ5.8 * 8mm ozone-proof rubber hose attached with the machine. |
||||
Power supply |
220V 50HZ(for China) 110V 50-60HZ (Area/country except China) |
||||
Air source |
Using the oxygen (cylinder gas or oxygen generator) air source; or using the clean dry air source to the ozone generator, but the pressure must be ≤0.2MPa(≤2kgf/cm²); when using the oxygen gas source, the medical oxygen gas regulator must be used; when inputting the compressed air from outside, it requires to meet the requirements of pressure, when not meeting the requirement, the pressure regulator must be installed. |
||||
|
When oxygen gas source is inputted from outside, the related using standard must be referenced. | |||||

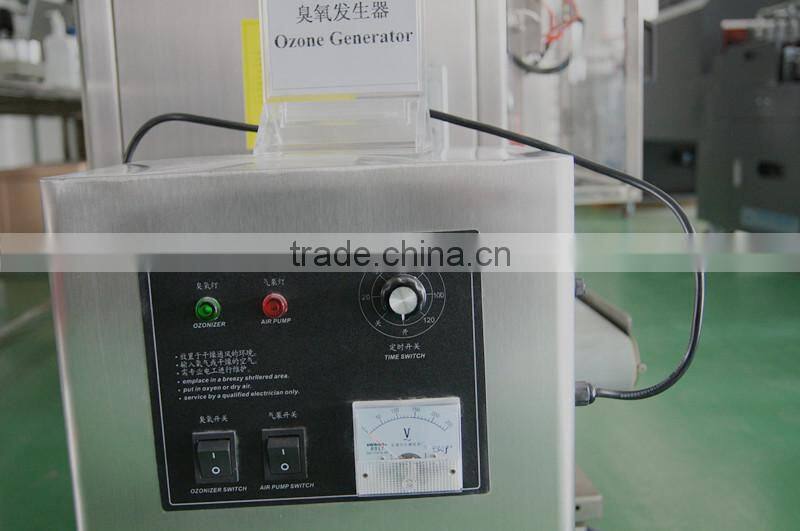

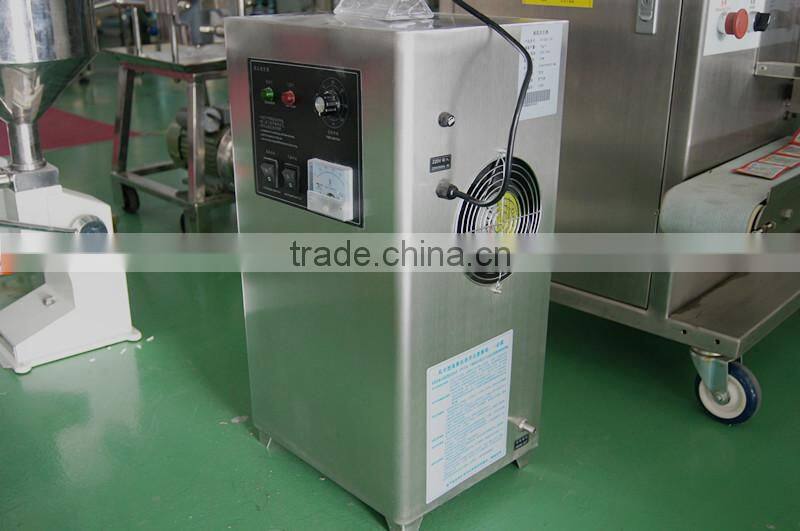

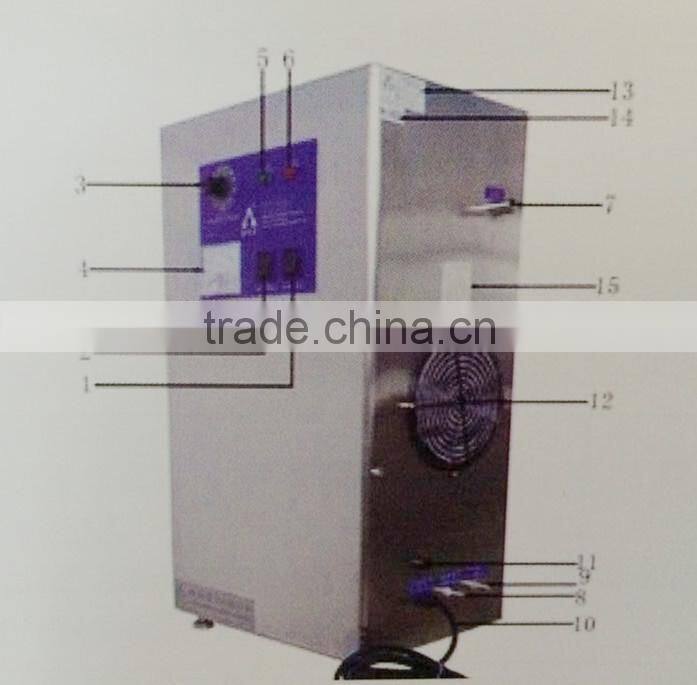

External apprerance
1 |
Switch for air pump (if eligible pressure compressed gas source is supplied from outside, there may not be air pump integrated) |
9 |
Oxygen inlet 6.5mmOzone-resisting soft duct 5mm*8mm along with equipment delivery is for choice |
2 |
Power switch for whole equipment |
10 |
Power line |
3 |
Ozone regulating turn-button |
11 |
Fuse tray 5A fuse |
4 |
Ammeter |
12 |
Fan fence net Regular maintenance: clean once every 1-3 months |
5 |
Ozone working indicating light |
13 |
Certificate on delivery |
6 |
Air pump working indicating light |
14 |
Equipment code (some are printed on external shell) Every equipment has the unique code, which has been recorded by our company before delivery. Properly keep the code; it is necessary for warranty and repair service. |
7 |
Air outlet 6.5mm Ozone-resisting soft duct5mm*8mm along with equipment delivery is for choice |
|
|
8 |

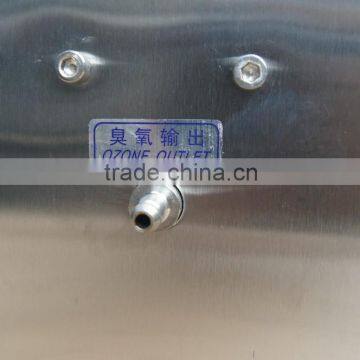

Ozone outlet 6.5mm Ozone-resisting soft duct5mm*8mm along with equipment delivery is for choice |
15 |
Table of technical parameters |
Packaging:
packing by wooden case usually,we also do other packaging as per customer's requirement.
Shipping:
· European Countries: 22-28 days
· The United States: East --13-16 days, West--21-28 days
· Brazil: 30-40 days
· Russia: 36 days
· Asia Countries: 3-5days
After-sales Service:
1. The machines' quality that we sold will be guaranteed for 1 year.
2. Provide you life-long maintenance.
3. Within 24 hours we will send service technicians to the your site.
4. Under normal circumstances, the company will be equipped with conventional spare replacement parts to meet your requirements at any time
Iternational trade:
We have more than 20 years experience in this machiney industry ,Lianhe Machinery is a scientific enterprise specialized in research,development,production and management of cosmetic,food and pharmaceutical machinery,filling machinery and packing machinery,it has complete machining equipment,perfect technological flow,powerful technical force,excellent product development and design ability as well as rich production experience.
Night of our factory
Our team
Exhibition and customers
1.A.Are you factory?How many workers do you have?
B.Yes,we are factory. One is in guangzhou and the other one is in my boss's hometown.Almost 100 person working for this 15 years old factory.
2.A.What about after sale service?
B.We provide two year warrantly for big machines like hydraulic homogenizer vacuum emulsifying mahcines and mixers series.One year for small filling machines like semi-automatic labeling machines series.
However,we provide wearing parts(not caused by improper operating) for free in the warrantly(except delivery fee)
3.A.What about install?
B.Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
4.A.What can you do if the machines meet problem?
B. The picture or video to show the problem should be provided,then we will send you teching video based on the small machines,if for the big problem for big machines ,engineers will be sent.Please check question 3 to make sure the fees.
5.A.How can you control the quality and delivery?
B.All our machines should be tested before packaging,wooden packaing is strong and safety for long delivery .
Welcome to your advice for our machines and our service,your happy my happiness.
Please no hasitate to contact with me.Or leave me message.Thank you
