Help CenterSingle Digit Display Digital Display Unit Led 7 Segment Display 1 Digit
Related Products
-
OEM & ODM Factory Produced High Quality Single Digit Led Display Common Cathode/anode Led Display 7 Segment Numeric Led DisplayUS$ 0.2 - 0.5MOQ: 1000 Pieces -
0.56 Inch Single Digit Led Display Factory Produced Colorful Common Cathode/anode Led Display Single Digit 7 Segment Led DisplyUS$ 0.2 - 0.5MOQ: 1000 Pieces
-
7 Segment Led Disply One Digit Led Display Factory Produced 0.6 Inch Colorful Common Cathode/anode Led Display Single DigitUS$ 0.2 - 0.5MOQ: 1000 Pieces
-
High Quality 2.3 Inch One Digit Numeric Led Display Single 7 Segment Led DisplyUS$ 0.2 - 0.5MOQ: 1000 Pieces
-
Large Indoor Led Screen Led Single Digital Display 3 Inch 7 Segment One Digit Led Display Common Anode/cathodeUS$ 0.1 - 0.5MOQ: 1000 Pieces
Specifications
1. low power consumption2. long using life
3. compettive price
4. customized color

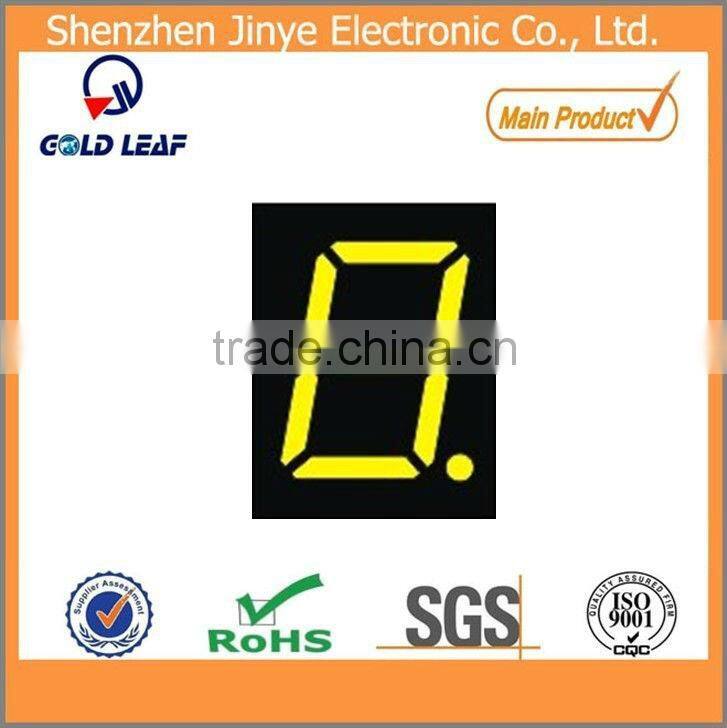

Single digit display digital display unit led 7 segment display 1 digit
Established in December, 2001, Shenzhen Jinye Electronic Co., Ltd., with ten years' establishment and development, has been grown into a professional manufacturer combining R&D, sales and service and won great reputation in LED industry.
We're specialized in producing led pixel tubes, led color displays,led dot matrix modules, led plane display,optical fiber terminals and infrared receiver etc. Our products sell well domestically and exported to overseas, like our Chinese brand Midea, Korea, Russia and many european countries.
We accept customize, just need your requirement
Contact:
• telephone: +86-0755-27580732 • fax: +86-0755-27580798
• email: • skype: jinyeelectronic
• QQ: 995875625
Features
High brightness
Luminous evenly distributed on each segment
ISO9001-2008, SGS and comply Rohs standard
Various sizes and colors upon your option
low power consumption
Easy to assemble on printed circuit board
Specification
Emitting color: green, red, blue, yellow, orange and white
Lens color: black or gray
Size:
0.28~8 inch(1 digit)
0.28~2.3 inch (2 digits)
0.25~0.80 inch (3 digits)
0.20~0.80 inch (4 digits)
0.28~0.35 inch (5 digits)
0.24~0.30(6 digits)
PCB Polarity: common anode/cathode upon your requirement
(Ta=25°C)Absolute Maximum Ratings:
Power Dissipation……………………………………….. 50mW
Peak Forward Current………………………................... 100mA
Reverse Voltage……………………………………....... .. 5V
Operating Temperature……………………………........ -25°C~+85°C
Storage Temperature………………………………........ -30°C~+85°C
Storage Humidity……………………………………..... 45~85%
(Ta=25°C)Electrical-Optical Characteristics:
Parameter |
Test CONDITING |
Symbol |
Min |
Type |
Max |
Unit |
Luminous Intensity |
IF=20mA |
IV |
- |
10 |
- |
mcd |
DC Forward Voltage |
IF=20mA |
VF |
2.9 |
3.2 |
3.6 |
V |
DC Reverse Current |
VR = 5V |
IR |
- |
- |
100 |
uA |
Wavelength Characteristic |
IF=20mA |
λp |
- |
465 |
- |
nm |
|
Suggestion Forward Current
|
- |
IF(Sug) |
5 |
10 |
20 |
mA |
Our adventage:
1. Your inquiry related to our products will be replied in 24 hours
2. Experienced staffs to answer your inquiries in fluent English
3. Providing OEM and ODM service for more than 10 years
4. Protection of your sales area, ideas of design and all your private information
5. No matter big order or small order, we will serve you with best quality and best service
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin
7. Life span: 80000-100000 hours.
Payment Terms:
- T/T or L/C FOB Shenzhen
- PAYPAL Western Union
Sample: Available Lead Time: within 10 days after receiving the 30%deposit
Warranty:
1 years warranty, we will send free in the next order if it is our mistake.
About us:
We promise:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. Our products using life: 50000 hours. High brightness and low power consumption
8. If our products have any problem , we will send free in the next order if it is our mistake.
