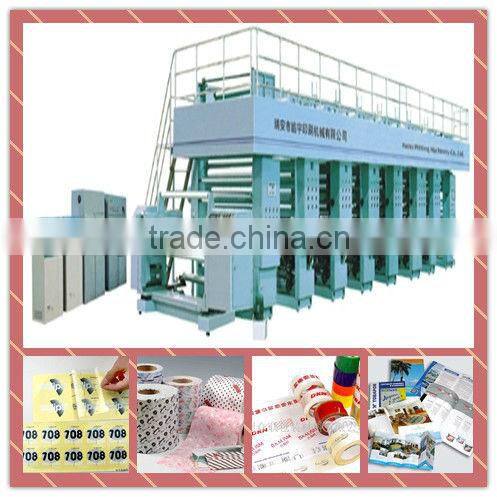

Help CenterYS-A 6color 9units Computerized Control High Speed Rotogravure Printing Machine
Related Products
-
YS-ZF800 ROTOGRAVURE PRINTING MACHINENegotiableMOQ: 1 -
YS-ZF Series Gravure Printing MachineNegotiableMOQ: 1
-
YS-AF1300type Rotogravure Printing MachineNegotiableMOQ: 1
-
YS-ZF1500 Middle Speed Rotogravure Printing MachineNegotiableMOQ: 1
-
YS-GE High-speed Rotogravure Printing MachineNegotiableMOQ: 1
Specifications
it is suitable for any reel form packing material printing,function
The machine is suitable for glassine paper, BOPP, PET,PVC,PE,NYLON,aluminum foil and paper etc with roll type multi-color continuous printing, it is widely used for high quality printing production.
,main parameter
type |
YSA1300 |
YSA1600 |
Printing width |
1300mm |
1600mm |
Roll width |
1320mm |
1620mm |
Color units |
6color 9units |
6color 9units |
Roll diameter |
600mm |
600mm |
Paper core inner dia. |
76mm |
76mm |
Printing plate dia. |
110 300mm |
110 300mm |
registration precision |
0.15mm |
0.15mm |
Printing speed |
50 180m/min |
50 180m/min |
Machine speed |
200m/min |
200m/min |
Total power |
135kw |
145kw |
overall machine weight |
Approx 15000kg |
Approx 18000kg |
dimension |
13500*2650*2600mm |
13500*2950*2600mm |
,machine spec.
1 Adopt new type computer auto-register system, register scan head can track with high speed online
2 Overall machine is permutation and combination type, adopt PLC control, it is by man machine interface to setting parameter and tension display.
3 Unwinding , feeding, discharging and rewinding 4units, all adopt closed loop tension control
4 Each unit by computer registration system (vertical) by independent microcomputer processor control
5 Press printing roller adopt arm swing and guide roller together, double cylinder down press type
6 Doctor blade frame adopt JAPAN FUJI frame type, tri direction adjustment, pneumatic pressurizing, pressure size adjust freely
7 Rewinding , unwinding double station rotation frame, air shaft load and unload shaft, non-stop manual link material
8 sealing type oven, Energy conservation and fast drying, auto-consent temperature control system, inner cycle drying box, exhaust emission with two times wind back hot air device.
9 drying box exit with cooling fan, to make the base material can radiating on time, to reduce the base material puling, to increase printing speed.
10 shaftless pneumatic conic plate, for exchanging the plate to save time and convenient
11 high precision gear drive box, adopt proprietary technology
12 fully automatic computer registration device, can choose static inspecting menu.
MACHINE PHOTO
PRODUCTION PHOTO
MACHINE PARTS
OUR FACTOY
5 OUR SERVICE
1. Purchase Service
HAOYU COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
HAOYU COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
HAOYU COMPNAY copperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all HAOYU Company machines.HAOYU Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.visa charge,and 100USD/DAY/PERSON as salary.
4.Clients Training Services
HAOYU Company advise The buyer could send own technican come to HAOYU factory to learn how to operate machines.HAOYU Company technician will teach and train the lerners hand by hand till he can operate machine by himself.
Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
HAOYU Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken ,Just a pictures or a videos.
The new free parts will reach within 3-7 Express working days .
SHOULD ANY FURTHER INFORMATION BE REQUIRED ,PLEASE FEEL FREE TO CONTACT WITH US
Telephone:0086-577-65165266
Fax:0086-577-65186255
Mob.:0086-13958857367
Website:
