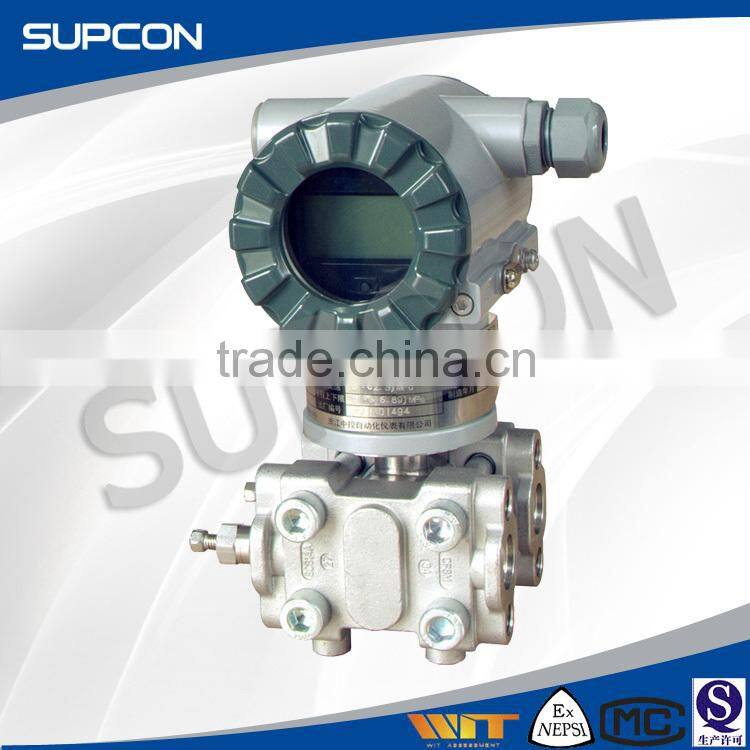

With Quality Warrantee Factory Directly Big Selling Differential Pressure Transmitter

High accuracy
±0.15% accuracy for all calibrated spans is the standard feature for differential pressure (flow) transmitter covering 4 to 250kPa. The compositive monocrystalline piezoresistive sensor assures this accuracy for all elevated or suppressed calibration ranges without additional adjustment.

Unique hydroseal diaphragm
Permeation of hydrogen into the detecting unit through seal diaphragm can be suppressed thanks to the unique seal diaphragm which employs coating of gold.

Application flexibility
Various options that render the CXT suitable for almost any process applications include:
–Full range of hazardous area approvals
– Built-in RFI filter and lightning arrester
– 5-digit LCD meter with engineering unit
– Stainless steel electronics housing
– Wide selection of anticorrosion materials

Span, range
Static pressure Span (kPa) Range (kPa)
Type (MPa) Min. Max. LRL URL
SKC 33 -0.1~16 0.4 40 -40 +40
SKC 35 -0.1~16 2.5 250 -250 +250

Process temperature, Lower range limit
Fill Fluid 13th digit code Process temperature Lower range limit
Silicone oil Y, G, N (-20~120)℃ 2.7kPa abs
Fluorinated oil W, A, (-10~80)℃ Atmospheric pressure
Note: For explosion proof units, process temperature is (-20~120)℃.

Performance Specifications for Square Root Output
Accuracy rating Output Accuracy
(50~100)% ±0.15%
(20~50)% ±0.375%
(10~20)% ±0.75% Temperature effect
Effect per 28℃ change between the limits of -20℃ and +85℃
Low flow cut-off for square root output
Customer configurable for any point between 0 to 20% of output

Physical Specifications
Process-wetted parts material
Material code Process cover Process-wetted body
Diaphragm Wetted sensor body
C CF8M 316L SST 316 SST

Remarks: Availability of above material design depends on ranges. Refer to "Ordering Code".
Non-wetted parts material
Electronics housing
Low copper die-cast aluminum alloy finished with polyester coating (silver), or CF8M, as specified.
Electronics housing cover
Low copper die-cast aluminum alloy finished with polyester coating (atrovirens), or CF8M, as specified.
Environmental protection
IEC IP67
Mass (weight)
Transmitter approximately 3.1 to 3.6kg without options
Electrical connections
½-14NPT or M20×1.5 conduit, as specified.
External terminal
M4 screw
Process connections
¼-18NPT
Mounting
On 50A(2B) pipe using mounting bracket, direct wall mounting or direct process mounting.
Transmission unit position
The transmission unit can be turned at 90° or 180°in the clockwise or counterclockwise direction.
