Home > Electrical & Electronics > Transmitter > Pressure Transmitter > Hot Selling Factory Directly Submersible Pressure Transmitter

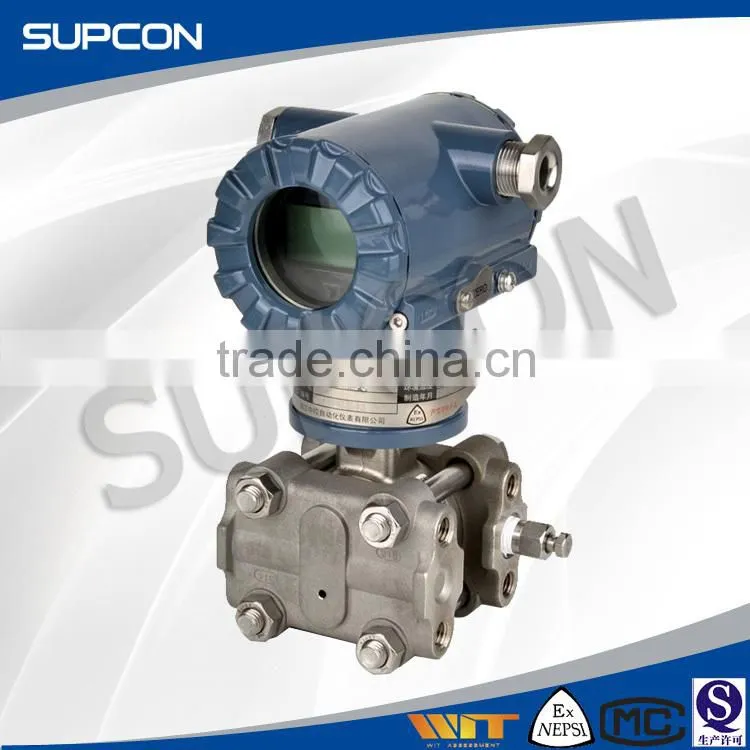

Hot Selling Factory Directly Submersible Pressure Transmitter

Name: Hot Selling Factory Directly Submersible Pressure Transmitter
Brand: SUPCON
SKU: 126057153

Hot Selling Factory Directly Submersible Pressure Transmitter thumbnail-1

Hot Selling Factory Directly Submersible Pressure Transmitter photo-1

Negotiable MOQ: 1 Case (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

SUPCON

Model Number:

CJT FPFA DIRECT MOUNTED FLANGED GAGE ABSOLUTE PRESSURE TRANSMITTER

Contact Supplier Request Quote Chat Now

Zhejiang Supcon Instrument Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai NingBo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name SUPCON

Model Number CJT FPFA DIRECT MOUNTED FLANGED GAGE ABSOLUTE PRESSURE TRANSMITTER

Performance Specifications

Range, Sensor Limits and Overpressure Limits

Range Code	Span (kPa)		Range (kPa)		Overpressure (MPa)
Range Code	Min.	MAX.	LRL	URL	Overpressure (MPa)
3	0.75	7.5	-7.5	7.5	7
4	0.935	37.4	-37.4	37.4	10
5	4.67	186.8	-100	186.8	10
6	17.24	690	-100	690	10
7	51.7	2068	-100	2068	10
8	172.25	6890	-100	6890	10
9	500	20000	-100	20000	32
0	1000	40000	-100	40000	50

Accuracy

For range code 3: ±0.1% of span

For range code 4~8:

For spans not greater than 10:1 of URL: ±0.1% of span

For spans greater than 10:1 of URL: ± [0.1+ 0.1 × (URL / span -10)] % of span

For range code 9, 0:

For spans not greater than 10:1 of URL: ±0.2% of span

For spans greater than 10:1 of URL: ± [0.2+ 0.2 × (URL / span -10)] % of span

Stability

For range code 3~8: ±0.1% of URL for 12 months

For range code 9, 0: ±0.2% of URL for 12 months

Span Turn-down Capacity

For range code 3: Up to 10:1

For range code 4~8: Up to 40:1, less than 10:1 is recommended.

Temperature Effect

For range code 3: ±0.2%URL/10℃

For range code 4~8:

For spans not greater than 10:1 of URL: ±0.1%URL/10℃

For spans greater than 10:1 of URL: ±0.2%URL/10℃

For range code 9, 0:

For spans not greater than 10:1 of URL: ±0.3%URL/10℃

For spans greater than 10:1 of URL: ±0.6%URL/10℃

Overpressure Effect

For range code 3~8: ±0.1% of URL

For range code 9, 0: ±0.2% of URL

Physical Specifications

Wetted Materials

Isolating diaphragms:

316L SST, Hastelloy C

Drain/Vent valves:

316 SST

Process flanges and adapters:

316 SST

Wetted o-rings:

Nitrile rubber

Non-wetted Materials

Fill fluid:

Silicone oil, Fluorinated oil

Nuts and bolts:

Stainless steel

Electronics housing:

Low-copper aluminum

Cover o-rings:

Nitrile rubber

Process Connections

Flanged process connection: ¼-18NPT

Weight

About 3.5kg (Excluding options)

Connector (Optional)

Oval flange:

½-14 NPT female thread oval flange

T-shaped adapter:

M20×1.5 T-shaped male thread connecting block with ø14 induced pressure tube welded behind

Mounting bracket: Bend Bracket, Pipe Mounted (2 in.), Flat Bracket, Pipe Mounted (2 in.)

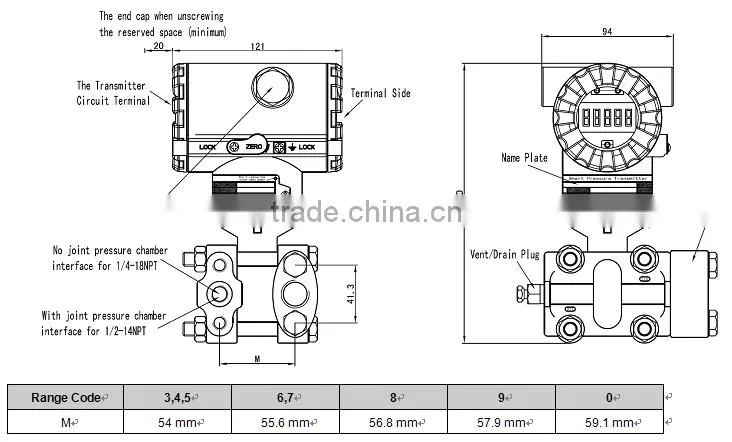

Dimensions

Typical Mounting

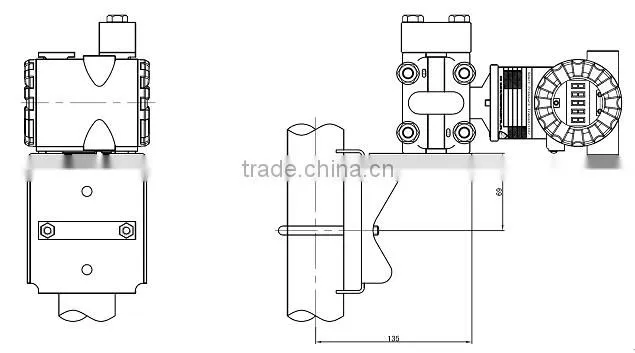

Flat bracket, pipe mounted

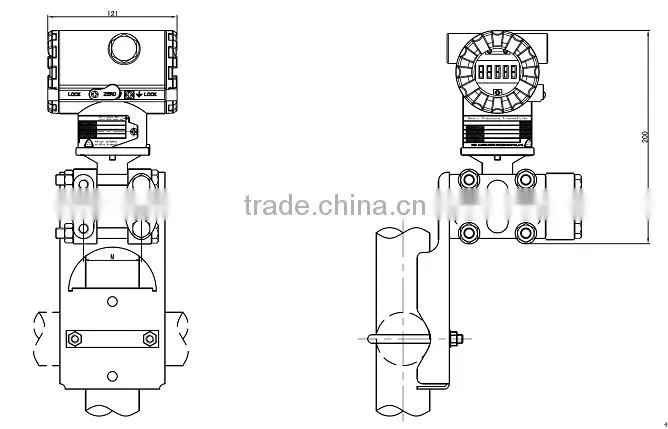

Bend bracket, pipe mounted

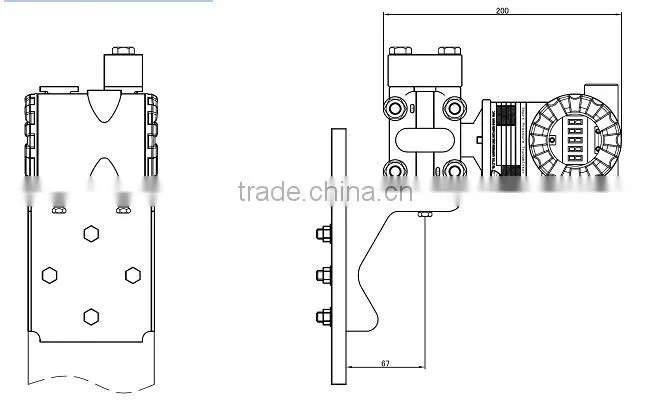

Bend bracket, panel mounted
