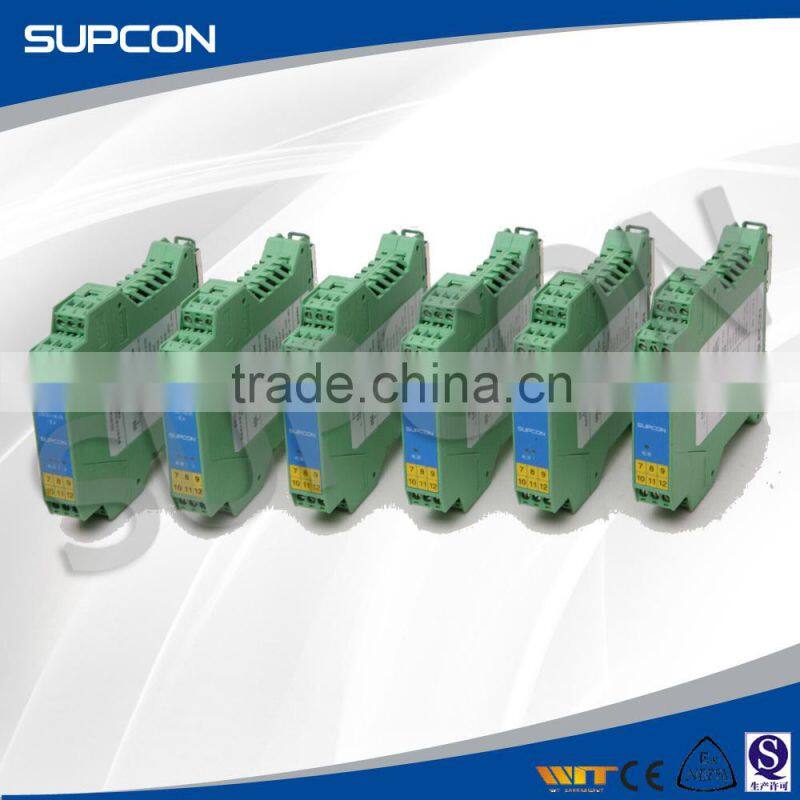

Help CenterSB3042 Repeater Power Supply Signal Isolators
Related Products
-
SB3044 REPEATER POWER SUPPLY Isolated BarrierUS$ 45 - 65MOQ: 20 Pieces -
SB3045 REPEATER POWER SUPPLY Isolated BarrierUS$ 135 - 136MOQ: 20 Pieces
-
SB3046 ISOLATING DRIVER Safety IsolatorsUS$ 135 - 136MOQ: 20 Pieces
-
SB3049 ISOLATING DRIVER Isolated BarrierUS$ 45 - 60MOQ: 20 Pieces
-
SB3075 Temperature Converter Safety IsolatorsUS$ 45 - 60MOQ: 20 Pieces

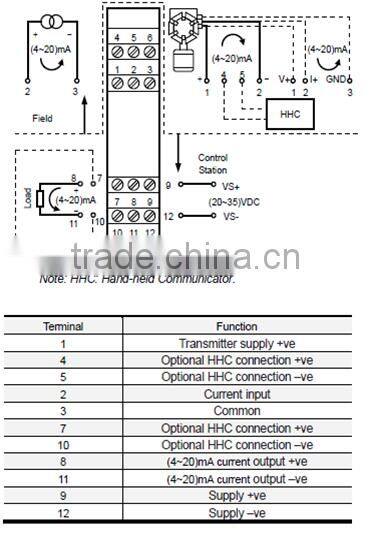

The SB3042 provides a fully floating dc supply for energizing a conventional 2- or 3-wire 4/20mA transmitter located in the field and
repeats the current in another floating circuit to drive a control-station load. For smart 2-wire transmitters, the SB3042 allows bi-directional
HART communications signals superimposed on the 4/20mA signal.
Dimension
114.5mm×99.0mm×17.5mm
Number of Channels
1
Voltage available for transmitter and lines
16.5V minimum at 20mA Note: maximum open-circuit voltage is 28V.
Input and output signal range
4 to 20mA
Control-station side circuit load resistance
0 to 650Ω
Output circuit ripple
<40μA peak-to-peak
Transfer accuracy at 20°C
Better than 16μA
Temperature drifts
<1μA/°C
Response time
Settles to within 10% of final value after typically 20ms
Digital signal bandwidth
10Hz to 12kHz
LED indicators
One provided for power indication
Power supply
Voltage: (20~35)VDC Current: (with 20mA transducer load) 90mA at 20V 80mA at 24V
60mA at 35V Power: 1.92W typical at 24V with 20mA signal
Isolation
250V AC/DC between control station and filed circuits
| Item Name | SB3042 REPEATER POWER SUPPLY | |||||||||
| Material | Plastics | |||||||||
| Size | 114.5mm×99.0mm×17.5mm | |||||||||
| Color | Green | |||||||||
| Process |
Casting,Stamping,Polishing,Filling Silicon Oil, Painting,Assembly,Calibrating,Packaging |
|||||||||
| Custom Desigh | Welcome | |||||||||
| Service | OEM&ODM | |||||||||
| MOQ | 20 pcs | |||||||||
| Sample | Available | |||||||||
|
Sample Cost,The cost will be returned after placing an order |
USD130 | |||||||||
| Sample Lead Time | 7-15 Days | |||||||||
| Payment Terms | T/T, LC at sight,west union,paypal | |||||||||
| Packing | carton package with protection material | |||||||||
| Production Time | 15-30 Days | |||||||||
| Delivery Port | Ningbo or Shanghai | |||||||||
