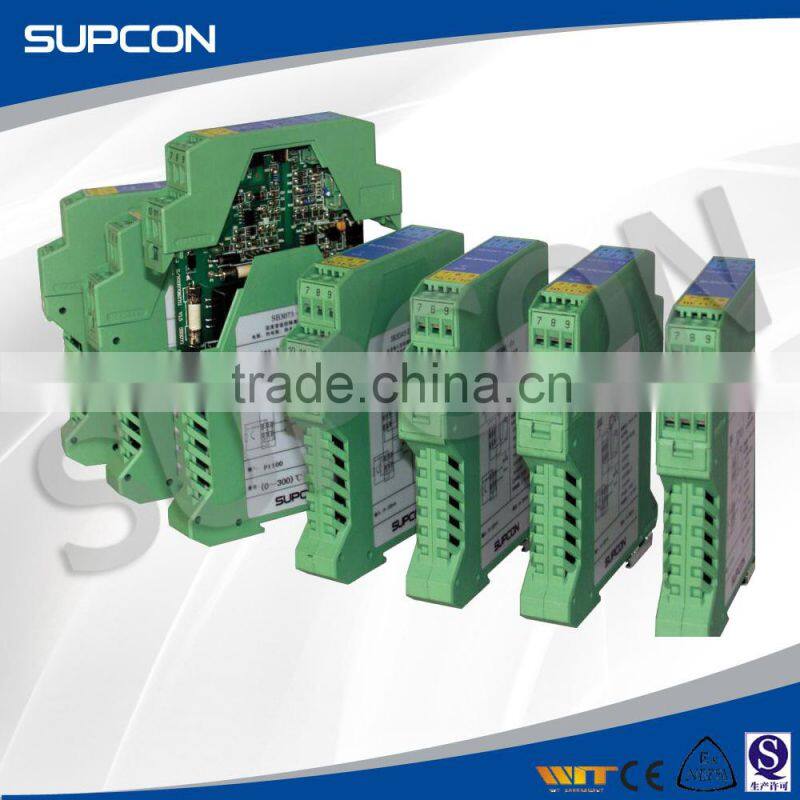

Help CenterSB3046 ISOLATING DRIVER Safety Isolators
Related Products
-
SB3049 ISOLATING DRIVER Isolated BarrierUS$ 45 - 60MOQ: 20 Pieces -
SB3075 Temperature Converter Safety IsolatorsUS$ 45 - 60MOQ: 20 Pieces
-
HD5516 SWITCH, PROXIMITY DETECTOR INTERFACE Isolated BarrierUS$ 150 - 151MOQ: 20 Pieces
-
HD5526 SOLENOID/ALARM DRIVERS Safety IsolatorsUS$ 150 - 151MOQ: 20 Pieces
-
HD5546US$ 150 - 151MOQ: 20 Pieces

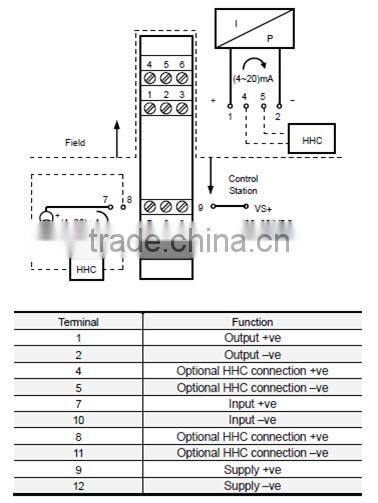

The SB3046 accepts a 4/20mA signal from a controller located in the control-station area to drive a load in the field. It permits bidirectional transmission of digital signals to and from an operator station or hand-held communicator.
Dimension
114.5mm×99.0mm×17.5mm
Number of channels
1
Input and output signal range
4 to 20mA
Field side circuit load resistance
Min 100Ω Max 800Ω (16V at 20mA) Note: Circuit de-energized If output load resistance < 100Ω.
Input and output circuit ripple
<40μA peak-to-peak
Transfer accuracy at 20°C
Better than 16μA
Temperature drifts
<1μA/°C
Digital signal bandwidth
10Hz to 12kHz
Response time
Settles to within 10% of final value after typically 20ms
LED indicators
One provided for power indication
Power supply
Voltage: (20~35)VDC Current: 70mA at 20V 60mA at 24V 45mA at 35V Power: 1.44W typical at 24V with 20mA signal
Isolation
250V AC/DC between control station and filed circuits
| Item Name | SB3046 ISOLATING DRIVER | |||||||||
| Material | Plastics | |||||||||
| Size | 114.5mm×99.0mm×17.5mm | |||||||||
| Color | Green | |||||||||
| Process |
Casting,Stamping,Polishing,Filling Silicon Oil, Painting,Assembly,Calibrating,Packaging |
|||||||||
| Custom Desigh | Welcome | |||||||||
| Service | OEM&ODM | |||||||||
| MOQ | 20 pcs | |||||||||
| Sample | Available | |||||||||
|
Sample Cost,The cost will be returned after placing an order |
USD130 | |||||||||
| Sample Lead Time | 7-15 Days | |||||||||
| Payment Terms | T/T, LC at sight,west union,paypal | |||||||||
| Packing | carton package with protection material | |||||||||
| Production Time | 15-30 Days | |||||||||
| Delivery Port | Ningbo or Shanghai | |||||||||
