Hart protocol pressure transmitter

Specifications

Combine the modern digital chip technology on basis of metal capacitive transmitter. High accuracy, long-term Stability.

Brief introduction:

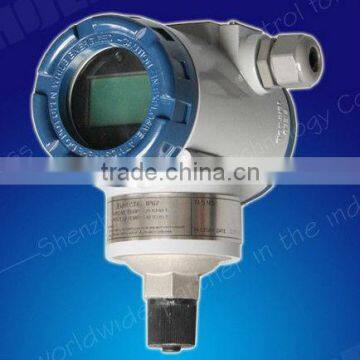

RP61 smart pressure transmitter is a new product developed by VIRVO Company which combines the modern digital chip technology on basis of metal capacitive transmitter. The signal conversion of sensor use isolated digital capacitive electro circuit to replace the traditional analog signal amplification electro circuit and A/D converting circuit; besides VIRVO Company make use of digital compensation technique to compensate the temperature and static pressure, thus improving the measurement accuracy, reducing temperature drift. Our transmitter has the advantage of long-term stability, high reliability and strong self-diagnostic capacity. It is mainly used for measuring the absolute pressure and gage pressure. And the RP61 is divided into two kinds:RP61-G for measuring gage pressure and level, RP61-A for measuring the absolute pressure, both of them adopt the composite silicon sensor.

Specifications:

Superior Performance

High Reference Accuracy:±0.075% of Calibrated Span(The option: ±0.04% of Calibrated Span)

Long-term Stability (0.125% URL for 3 years)

High Range ability (100:1) (for the range 4-0)

Flexibility

Data Configuration with HART Configuration.

Zero Point Adjustment

Reliability

Continuous Self-Diagnostic Function

Automatic Ambient Temperature Compensation

Fail-mode Process Function

EEPROM Write Protection

CE EMC Conformity Standards

(EN50081-2, EN50082-2)

Transfer Function

Self-Compensation

Self-Diagnosis and Others

CPU&Analog Module Fault Detection

Communication Error

Fail-mode Handling

LCD Indication

Temperature Measurement of Sensor Module

Explosion-proof Approval &Intrinsic Safety Approval: ATEX,FM,FM Canada, GOST, KOSHA, KTL,etc.

Technical Parameters:

Accuracy	±0.075% of Span(0.2URL≤Span≤URL)
Stability	±0.01% full scale/ per year
Temperature factor	±(0.025%URL+0.125%Span)/28
Vibration factor	In the case of 200Hz of any axle, the error is ±0.05%/g of the max scale
CE certification	89/336/EEC, EMC standard
Output	4-20mADC support HART protocol digital signal
External power supply	12-36VDC
250Ω loaded	17.4VDC
24VDC	For 550Ω loaded max
Damping time	0.12 second
Starting time	3 second
Temperature of medium	-40—104°C
Storage temperature	-40—85°C
Material of liquid contacting parts	Isolated diaphragm: 316L, stainless steel T, Monel, tantalum, Hastelloy alloy. Demanding special material, please contact our technical department.
Material of non-liquid contacting parts	Filling liquid: CTFE, silicone oil Threaded bolt: stainless steel Electronic shell:Epoxy polyester paint, copper(little) aluminum alloy, conform to NEMA 4X and NEMA7, IP67 O-ring: Teflon, viton Nameplate:304 stainless steel
Connection	1/2 NPT, M20×1.5 provide special customized production
Electrical connection	1/2 NPT conduit
Measuring range(pressure):	7kPa—70MPa
