High Quality Pressure Needle Valve
US$ 4 - 40
/ Piece
50 Pieces(Min. Order)
- Shenzhen
- T/T D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Needle | |
| Pressure | High Pressure | Power | Manual | |
| Material | Stainless Steel | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | 1/8"-2" | |
| Place of Origin | Beijing, China | Model Number | pressure needle valve | |
| Brand Name | Phoein |
Product Description
Specifications

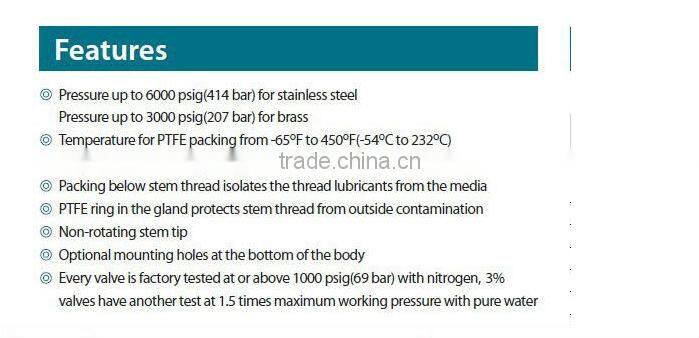

1.high quality pressure needle valve2.Instrument needle valve
ing pressures up to 6000 psig (318 bar)
High quality pressure needle valve
1.Working pressures up to 6000 psig (413 bar)
2.Temperatures from 65 to 450°F (53 to 232°C) with PTFE packing;
3.up to 1200°F (648°C) with Grafoil® packing
4. stainless steel; alloys and C-276; and titanium materials
5.Packing below stem threads
6.Soft seat
7.Standard soft-seat tip term (Non-rotating)
8.OEM accepted
2.Temperatures from 65 to 450°F (53 to 232°C) with PTFE packing;
3.up to 1200°F (648°C) with Grafoil® packing
4. stainless steel; alloys and C-276; and titanium materials
5.Packing below stem threads
6.Soft seat
7.Standard soft-seat tip term (Non-rotating)
8.OEM accepted
Parameter:
Name | high pressure needle valve |
Structure | needle |
Material | Stainless steel |
Port size | 1/8"-2" or DN15-DN100 |
Brand name | TF or OEM |
Pressure | High prussure |
Certificate | ISO9001:2008 and TS |
Package | Carton or wood case |
Origin | Jiangsu .China |
Pictures:
