Chemical Raw Materials Flowmeter/gas Rotameter Flow Meter

FOB Price

US$ 200 - 2,000 / Set

1 Set(Min. Order)

Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	VIRVO
Model Number	ZF60 series

Product Description

chemical raw materials flowmeter/gas rotameter flow meter

Product Description

Brief introduction:

Metal rotameter is an instrument that linearly indicates flow value when the floater moves up and down and transmits its position to the external indicator in the form of magnetic coupling to make pointer of indicator move followed floater. ZF60 series metal rotameter adopts design of modularity and intelligent indicator or on-site display, and it has the advantages of reliable operation, wide application and easy installation and so on.

Features:

1. Distinctive modularity design

2. Explosion-proof

3. Support 4-20mA two-system or HART protocol

4. Alarming switches can be optimized

5. Lithium batteries power supply is optional

Structural materials:

Code	Measuring Tube	Flange	Floater
SS	304/304SS,304L/304LSS 316/316SS,316L/316LSS 317/317SS,317L/317LSS	304/304SS,304L/304LSS 316/316SS,316L/316LSS 317/317SS,317L/317LSS	304/304SS,304L/304LSS 316/316SS,316L/316LSS 317/317SS,317L/317LSS
SP	1Cr18Ni9Ti With PTFE liner	1Cr18Ni9Ti	PTFE Hastelloy-B1,B2,C4,Ti
HT	Hastelloy-B1,B2,C4	Hastelloy-B1,B2,C4	Hastelloy-B1,B2,C4
TT	Ti	Ti	Hastelloy-B1,B2,C4,Ti
Note: PTFE: polytetrafluoroethylene, Ti: titanium alloy

Physical specifications:

Procedure Linkage:	Flange connection, standard: DIN2501, ANSI, JIS, etc.
Procedure Linkage:	Installation form of sanitary clamp and screw thread connection, please consult our company when order
Nominal Pressure:	DN15~DN50: standard 1.6~4.0Mpa
Nominal Pressure:	DN65~DN250: standard 1.6Mpa(Max. DN80, PN4.0……DN250, PN2.5
Electrical Interface:	M20×1.5, 1/2NPT adapter (optional)
Wiring:	16AWG (1.5mm diameter)
Protection Class:	IP67
Panel Size:	234×185×155mm
Nameplate:	304 stainless steel

Technical parameters:

Power:	13.5V—30V DC
Signal Output:	4—20mA,HART
Load:	250--500Ω
Linearity:	±0.2 %FS
Repeatability:	±0.1 %FS
Hysteresis:	±0.1 %FS
Temperature Ratio of Signal:	±0.5 %/10K FS
Signal Output (max):	21.5mA
Response Time (99%):	About 1.5 s
Output Under Breakdown:	≤3.6mA( NE 43 standard)
Temperature of Medium:	-104°F--248°F

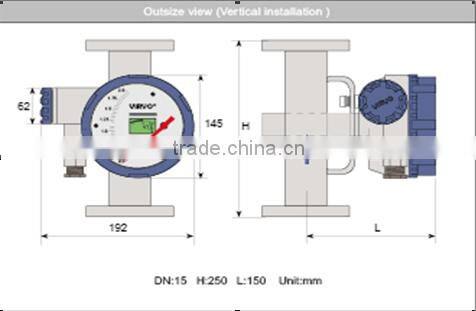

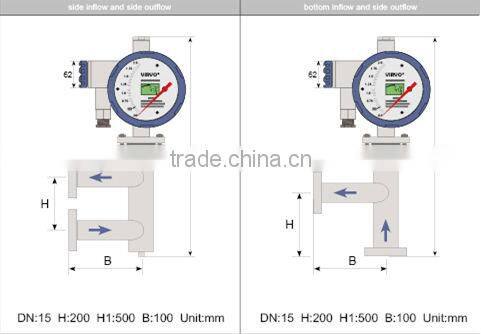

Dimension diagram:

Packaging & Shipping

Packaging: Neutral cartons/package: size and the product weight will be determined by the buyer's different design requirement. If we get the detail data of your required product, we will tell you size and the product weight as soon as possible /standard factory package.

Shipping: Seven working days for delivery or according to users' needs.

Our Services

All of our products have one year quality guarantee.

And if you have interests in our products or any questions about our products,please don’t hesitate to contact us,our sales team can provide the information what you want to know,If we are not online, please leave your name and your contact details,as email,MSN, yahoo, skype and your telephone number,we will contact you as soon as possible in 24 hours.

FAQ

Please provide following parameters, then we can help you choose the most suitable product and model:

1. What is the pipe size?

2. What is the measured medium?

3. What is the flow range of medium?

4. What is the temperature and pressure of medium?

5. What kind of connection do you need?
