1. Description:

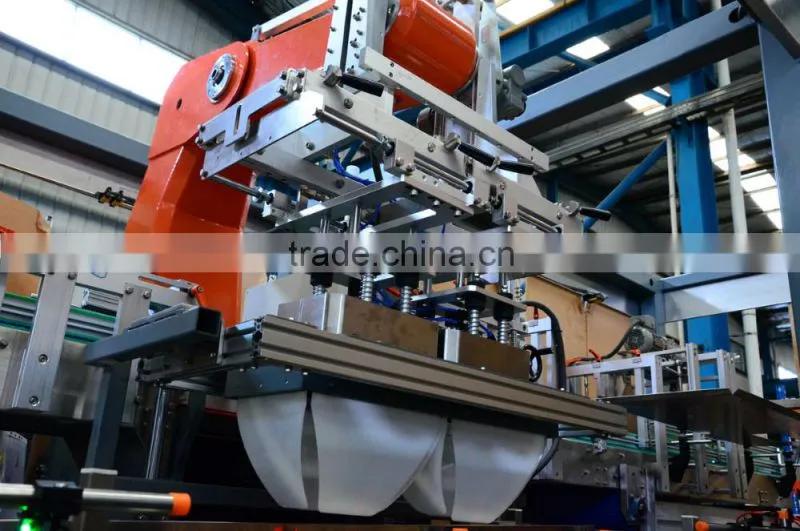

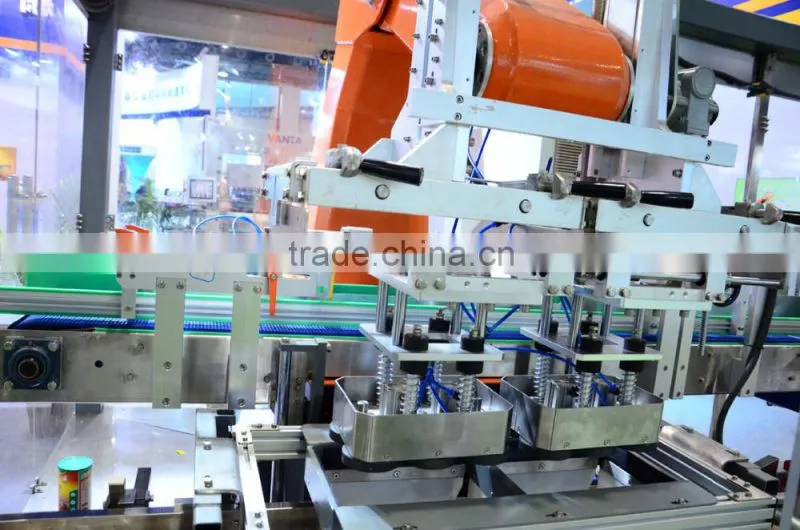

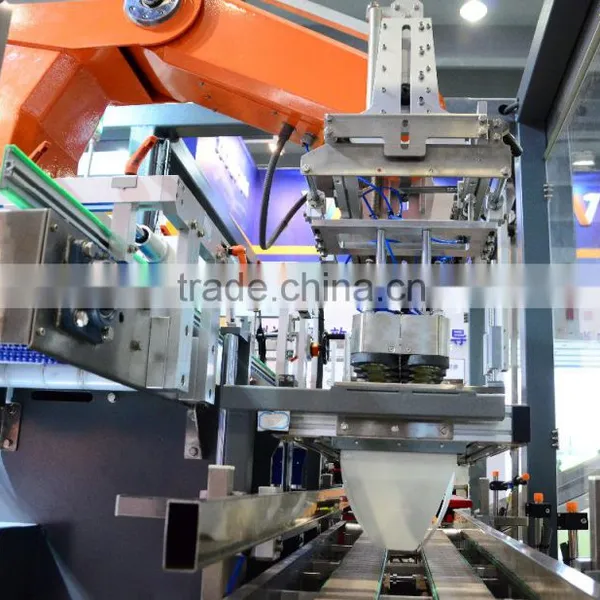

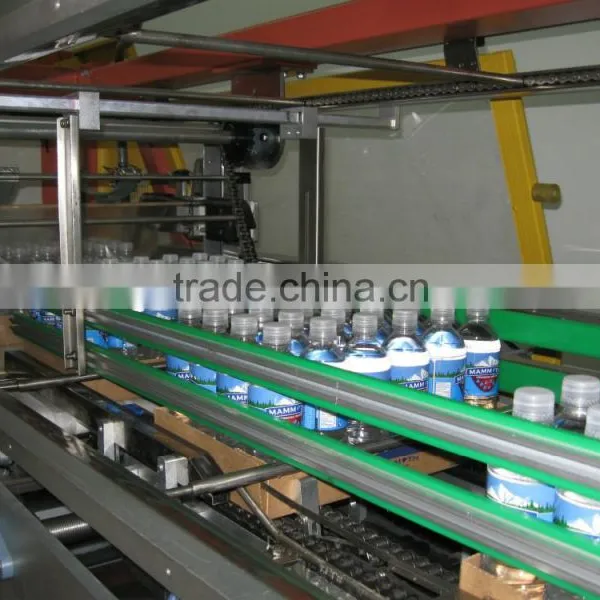

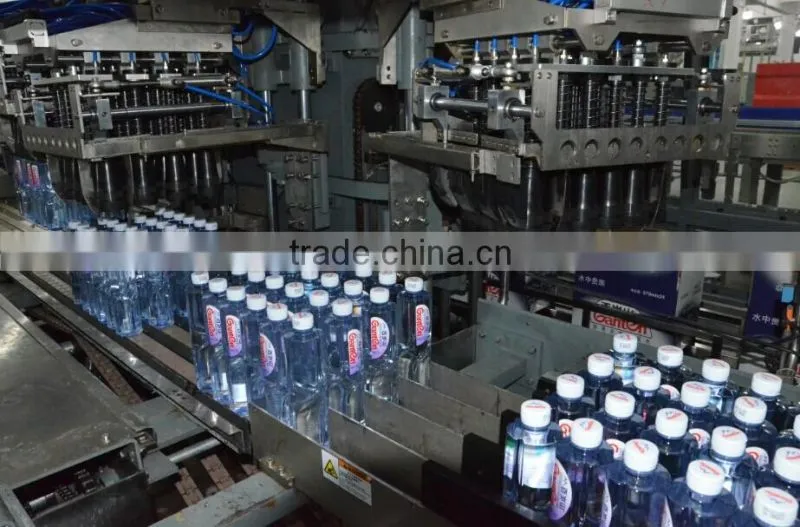

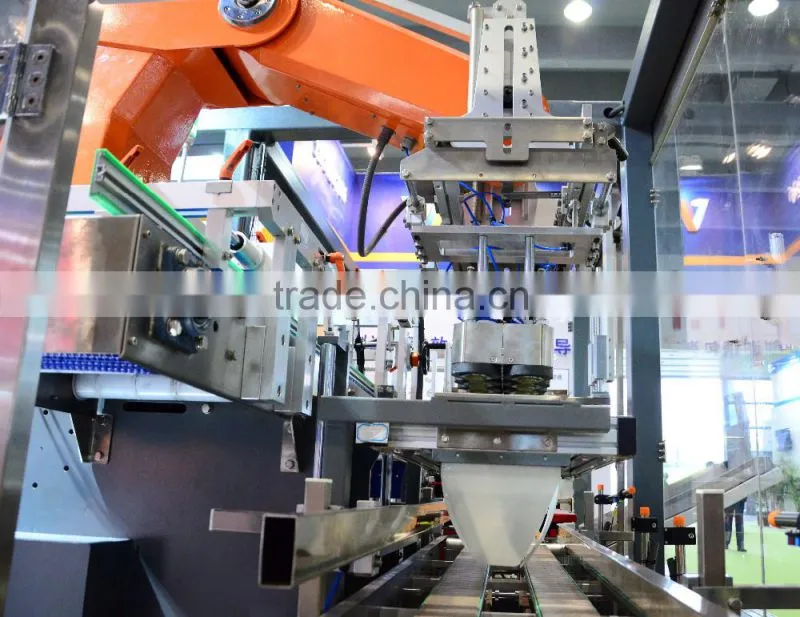

Automatic Cartoning Machine Pick and Place Carton Packer is a fully automatic packaging equipment. He has 2 lines. The upper line transport the products while the blow one fold the carton case, the feed the product into the carton. Automatic Cartoning Machine is used to put the container evenly into the plastic case or carton in a certain arrangement. It can meet a variety of different container sizes, including PET bottles, glass bottles, round bottles, oval bottles, square bottles, cans, and other bottles, and extensively used in packaging production line of beer, beverage and foodstuff industry.
http://youtu.be/jcx5-YdV-pw
2. Equipment datasheet:
| Model | HZX1206D |
| Capacity(CPM) | Max. 60 CPM (43000BPH line) |
| Lane | Double case lanes |
| Application | Beer, water, milk, seasoning etc. |
| Bottle material | glass, PET, metal |
| Bottle shape | around, square, oval |
| Bottle size(mm) | Ø55~85mm (different pick heads need according to different bottle) H230~330mm |
| Case size (max.) | 550×350×360 (L x W x H, mm) |
| Equipment dimension | 3530×2865×2650 (L x W x H, mm) |
| Power consumption | 9Kw |
| compressed air |
(a)pressure:0.6MPa (b)consumption:250NL/min |
| Main Power supply | 3P AC380V 50/60Hz |
| Auxiliary power supply | AC220V; DC24V |
| Equipment weight | 3.8T |
| Equipment noise level | ≤85 dB(A) |
3. Competitive Advantage:
3.1 A lower investment cost.
3.2 Faster return on investment.
3.3 High-quality and advanced device configuration, use the international generic accessories.
3.4 Reliable main drive gear and synchronous bottle blocking, bottle grabbing and bottle guiding system.
3.5 Reliable bottle input, bottle counseling, synchronous bottle transporting, sub-bottle system.
3.6 Expand production, reduce material waste and improve yield.
3.7 Equipment with flexible application and easy to operate.
3.8 Synchronous adjustment, easy change-over, and time-saving.
3.9 User-friendly interface.
4. Packing Product:
