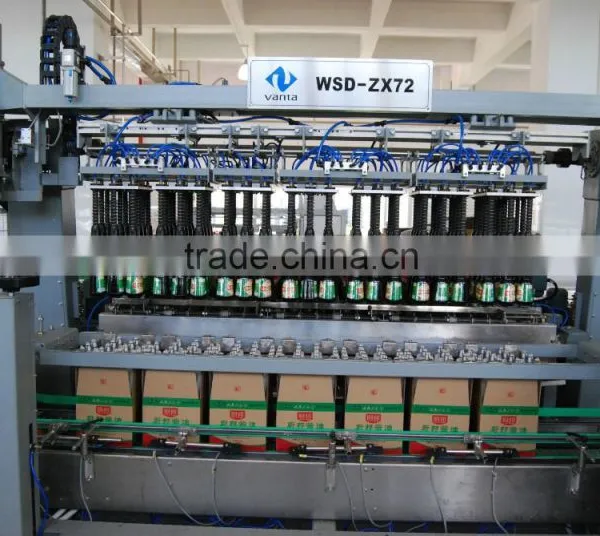

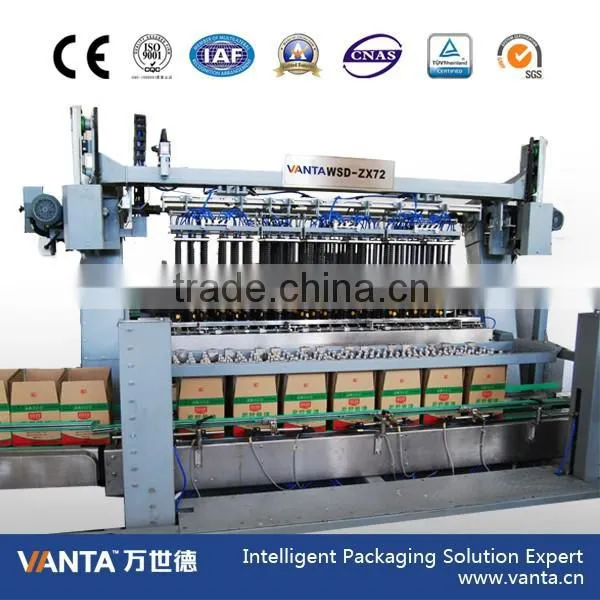

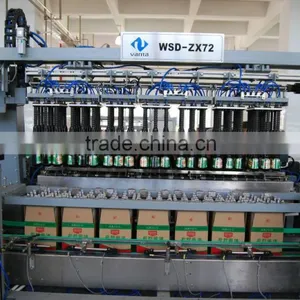

Help CenterPick and Place Packer Case Packing Machine (ZXJ72)
Related Products
-
Automatic Pick and Place Machine Carton Packing Machine Bottle Packer (ZXJ96)NegotiableMOQ: 1 Set -
Double Lanes Pick and Place Carton Packer (HZX120S)NegotiableMOQ: 1 Set
-
Automatic Glass Bottle Pick and Place PackerNegotiableMOQ: 1 Set
-
Auto Packer Machine Rotary Pick and Place Packer for High Capacity Line (HZZX144)NegotiableMOQ: 1 Set
-
Automatic Cartoning Machine SMT Pick and Place Carton PackerNegotiableMOQ: 1 Set
http://youtu.be/ZX0-wvMbGkI
1. Description:
Packer is a fully automatic packaging equipment which is used to put the container evenly into the plastic case or carton in a certain arrangement. It can meet a variety of different container sizes, including PET bottles, glass bottles, round bottles, oval bottles, square bottles, cans, and other bottles, and extensively used in packaging production line of beer, beverage and foodstuff industry.
2. Equipment datasheet:
| Model | ZXJ72 |
| Capacity(CPM) | Max.30 CPM (28000 BPH line) |
| Application | Beer, water, milk, seasoning etc. |
| Bottle material | glass, PET, metal |
| Bottle shape | around, square, oval |
| Bottle size(mm) | Ø55~85mm (different pick heads need according to different bottle) H230~330mm |
| Case size (max.) | 550×350×360 (L x W x H, mm) |
| Equipment dimension | 4700x2386x2570 (L x W x H, mm) |
| Power consumption | 8.5Kw |
| compressed air | (a)pressure:0.6MPa (b)consumption:280NL/min |
| Main Power supply | 3P AC380V 50/60Hz |
| Auxiliary power supply | AC220V; DC24V |
| Equipment weight | 4.5T |
| Equipment noise level | ≤80 dB(A) |
3. Competitive Advantage:
3.1 A lower investment cost.
3.2 Faster return on investment.
3.3 High-quality and advanced device configuration, use the international generic accessories.
3.4 Reliable main drive gear and synchronous bottle blocking, bottle grabbing and bottle guiding system.
3.5 Reliable bottle input, bottle counseling, synchronous bottle transporting, sub-bottle system.
3.6 Expand production, reduce material waste and improve yield.
3.7 Equipment with flexible application and easy to operate.
3.8 Synchronous adjustment, easy change-over, and time-saving.
3.9 User-friendly interface.
4. Products:
