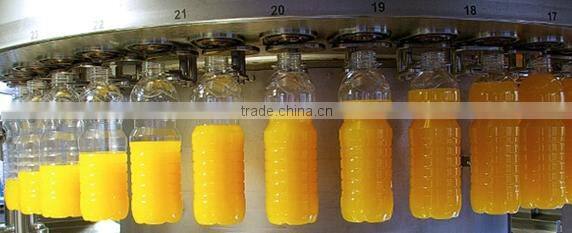

Help Center3 in 1 Juice Filler Hot Filling Machine (GZH18000)
Related Products
-
15000bph 3 in 1 Hot Filler for Bottled WaterNegotiableMOQ: 1 Set -
Bottle Filling Machine Juice Filler Machine (GZH12000)NegotiableMOQ: 1 Set
-
High Speed Rotary Water Filler for Multi Bottle Size (GZ36000)NegotiableMOQ: 1 Set
-
Aseptic Mineral Water Filling Machine Price (GZ24000)NegotiableMOQ: 1 Set
-
Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)NegotiableMOQ: 1 Set
1. Description
Vanta's GZH series filling line is specially designed for bottling synthetic juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 12000BPH to 36000BPH.
2. Datasheet
| Water filling machine model | WSD-GZH18000 |
| Capacity (BPH) | 18000 |
| Filling volume (L) | 0.35-2 |
| Rinser-filler-capper quantity | 40-40-12 |
| Bottle size (mm) | Φ50-Φ90 H 150-310 |
| Filling accuracy (%) | ±2 |
| Pneumatic pressure (mpa) | 0.5 |
| Air consumption (L/min) | 600 |
| Rated voltage (V) | 380 |
| Motor power (kw) | 7.5 |
| Rinsing water consumption ( /h) | 2 |
| Filling water consumption ( /h) | 9 |
| Dimension (LXWXH mm) | 4070X3200X3250 |
| Weight (kg) | 11000 |
3. Competitive advantages
3.1 It employs PLC, frequency convertor, human-machine interface and imported famous brand components
3.2 It can be connected with UHT, CIP and bottle tilting sterilizing system.
3.3 Its structure is reasonable and firm, the running state is stable.
3.4 The suspension bottle neck catcher allows the machine change the bottle type easily.
3.5 Safe protective devices ensure safety of operator and machine.
3.6 The magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage.
3.7 The module of screw capper adopts inner grooves which increase the success capping rate.
3.8 The micro negative-pressure gravity backflow filling principle increases the filling accuracy and reduces the contamination.
3.9 The unique control device keeps the backflow volume under 5%.
3.10 There is no plastic seal ring at the fill valve. This avoids any dust enter inter the bottle.
3.11 High quality air filter ensures the working airflow reaches the sanitation criteria.
4. Product:
