Home > Packaging & Printing > Packing Machinery > Filling Machine > Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)

Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)

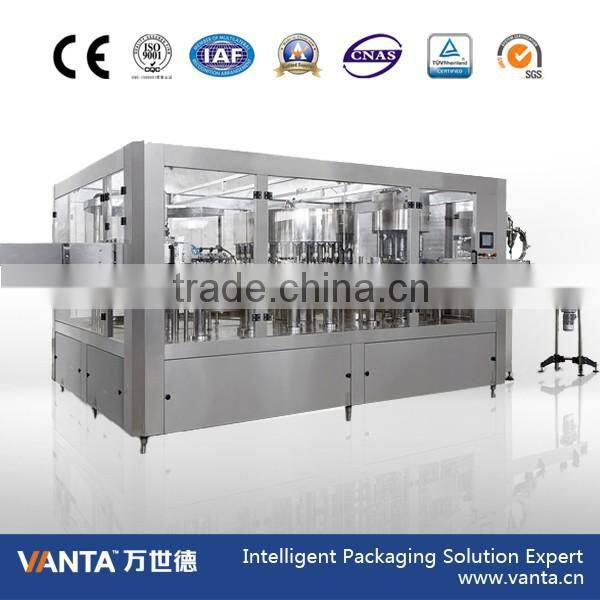

Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000) photo-1

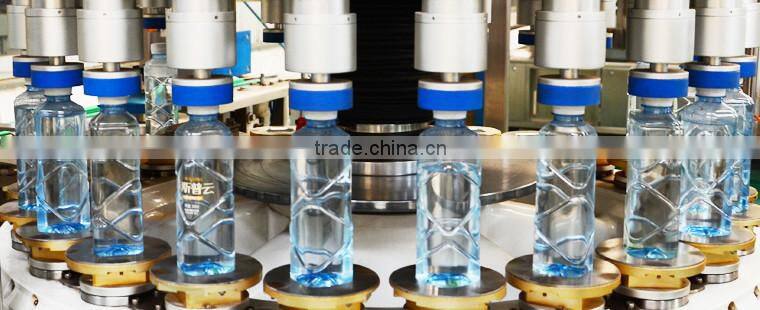

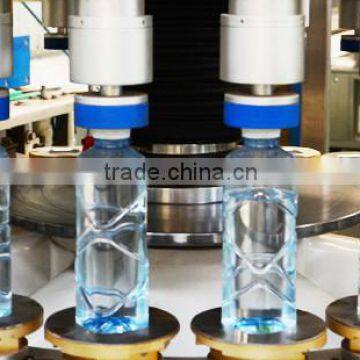

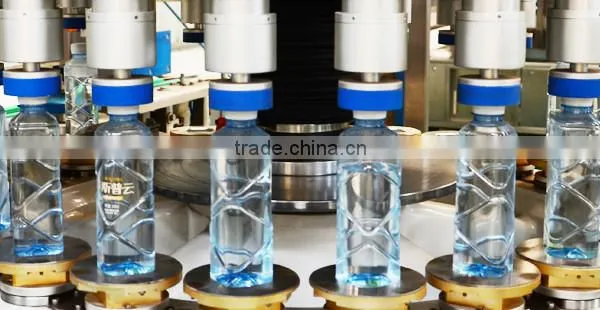

Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000) photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 7.5KW
Place of Origin Guangdong, China
Brand Name VANTA
Model Number WSD-GZ18000
Dimension(L*W*H) 4070X3200X3250mm
Weight 11T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Machine Video

Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)  http://youtu.be/Pqg2z3oVxEs



Product information

Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000) 1.    Description

Vanta's 3-in-1 filling machine is in combination with rinsing, filling and capping technology. It is innovated and designed in the requirement of still pure water and mineral water and  based on introducing and fusing advanced technologies from Germany and Italy.Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)



Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)

2.    Datasheet

Water filling machine modelWSD-GZ18000
Capacity (BPH)18000
Filling volume (L)0.35-2
Rinser-filler-capper quantity40-40-12
Bottle size (mm)Φ50-Φ90
H 150-310
Filling accuracy (%)±2
Pneumatic pressure (mpa)0.5
Air consumption (L/min)600
Rated voltage (V)380
Motor power (kw)7.5
Rinsing water consumption ( /h)2
Filling water consumption ( /h)9
Dimensions (LXWXH mm)4070X3200X3250
Weight (kg)11000




3. Competitive advantages
3.1  It adopts human-machine interface control technology.
3.2  The main components are imported from international famous brand.
3.3  The suspension bottle neck catcher structure allows the machine change the bottle type easily.
3.4  Spring type rinsing catcher can wash both inside and outside of the bottle.
3.5  The magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage.
3.6  Uses rotary cap unscramble, without damage of cap surface or noise. The photoelectric sensor is installed to detect missing cap.
3.7  Safety protection device ensures the safety of operator and machine.
3.8  High quality air filter ensures the working airflow reaches the sanitation criteria.



4. Product:

Automatic Filling Machinery 3 in 1 Filling Machine Moloblock (GZ18000)
