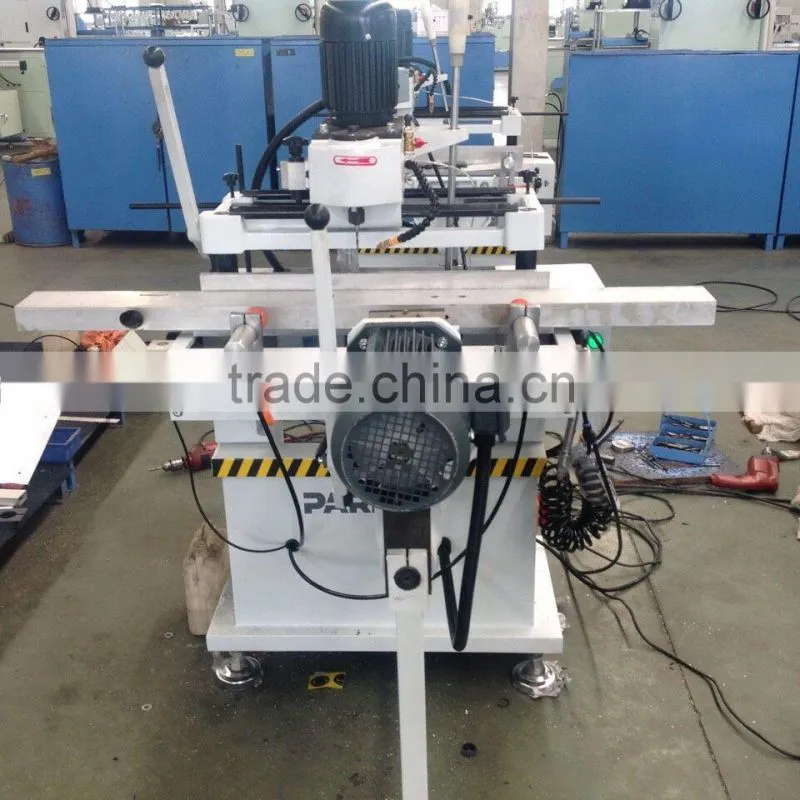

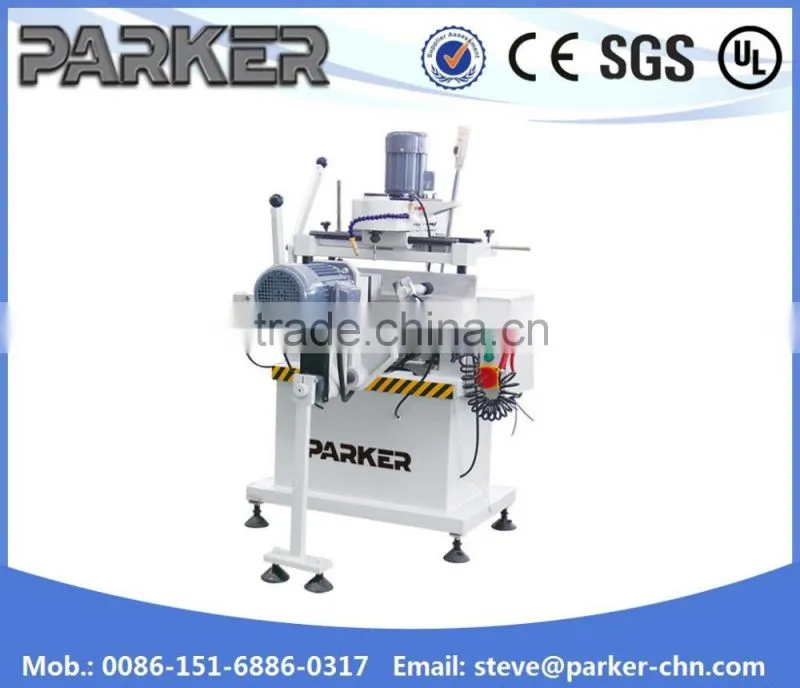

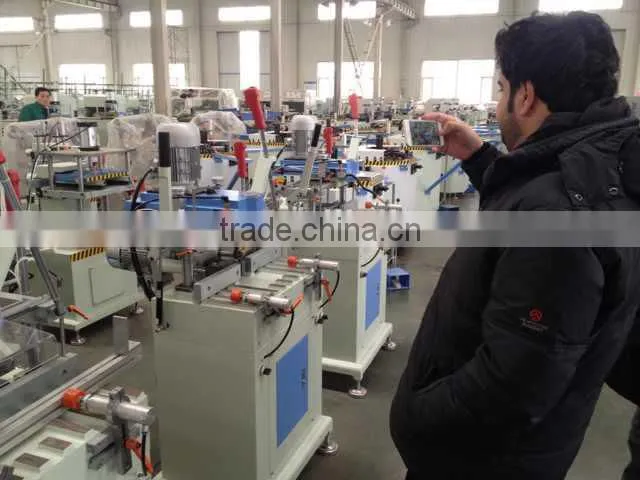

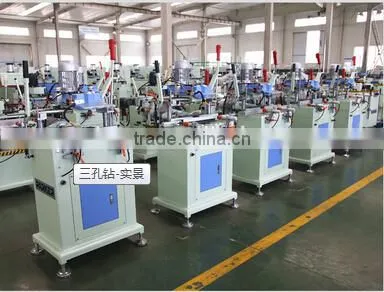

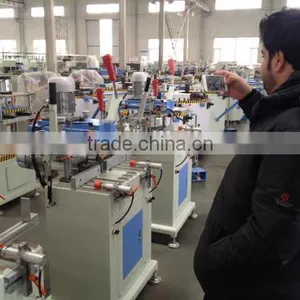

Alu-PVC profile copying-drilling machine- copy router machine with triple spindle -Chinese cnc copy router machines

Model: LFZ3

Features:

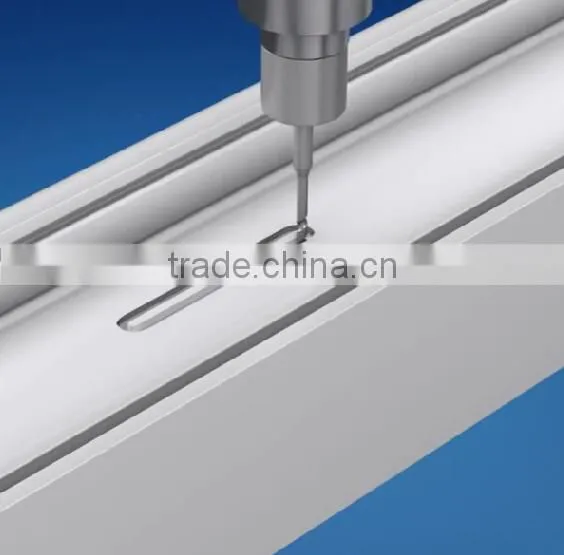

1. For processing lock holes, grooves and water-slots on aluminium and UPVC profiles.

2. copy routing and drilling on vertical and horizontal planes simultaneously.

3. Operate and maintain conveniently and simply.

4. Compact structure and small volume.

5. An air gun with long pipe for cleaning.

Parameters:

Model······································································ LFZ3

Power······································································380V/50HZ/0.75Kwx2+1.1Kw

Rotary speed···························································· 2800rpm/min

Air pressure······························································ 0.5-0.8MPa

Diameter of milling ·····················································Φ5mm

Diameter of drilling····················································· Φ10mm and Φ12mm

Copying range····························································290x90mm

Surface straightness··················································· ±0.1mm

Surface roughness····················································· Ra12.5μm

Overall dimension ······················································1100 x1000 x 1500mm

Weight······································································  270Kg
