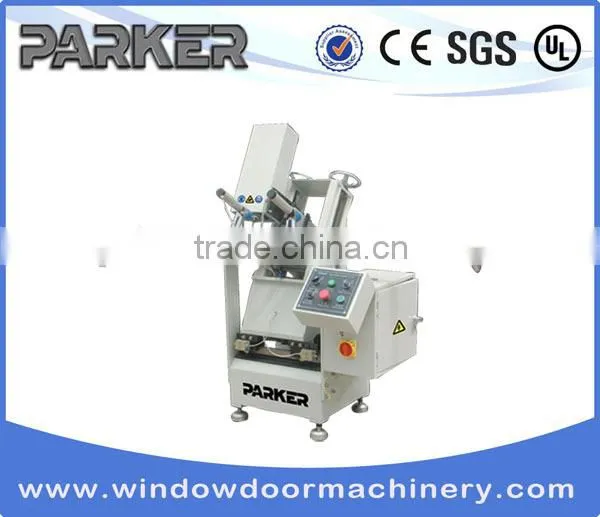

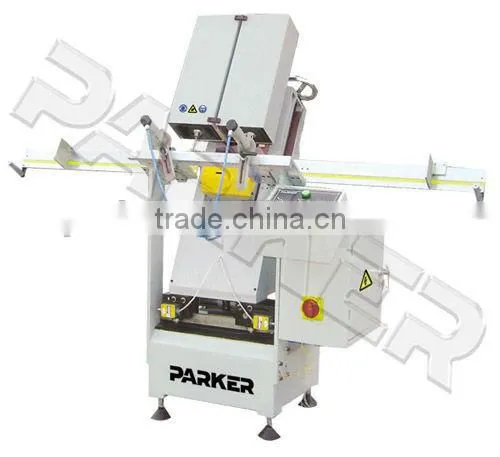

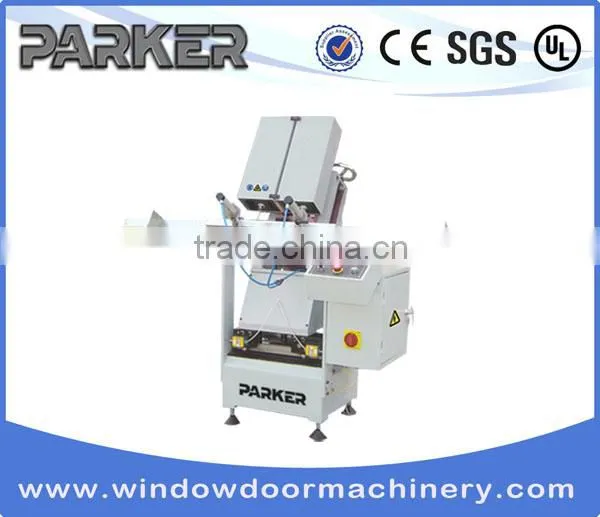

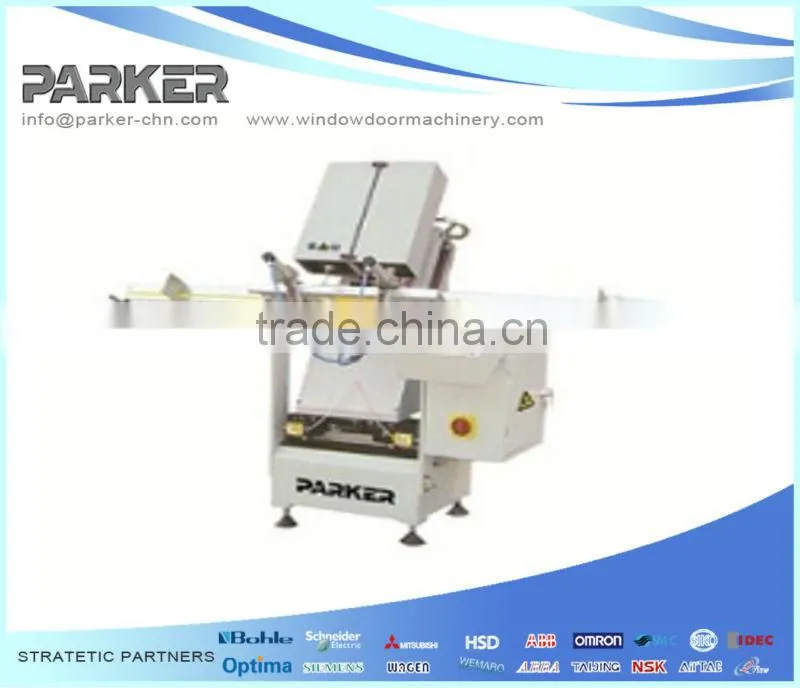

Auto Water-Slot Routing Machine for PVC profile
water-slot milling machine with cnc
pvc window-door water channel hole making machine
Model: SCX02-3×60
Features:
•This machine mainly consists of machine heads, hand driven lift mechanism, profile-holding worktable, machine framework, and electric chest. The whole machine is normally equipped with three machine heads: right machine head, middle machine head, and right machine head.
•According to different requirements, we can select different allocations such as allocations of left machine head, middle head, low machine head), allocation (middle machine head, right machine head, and low head machine), and so on. All the working combination of every machine heads can be completed through the select switch on the electric chest.
•This machine uses module structure. During running, all the machine heads can single work, or selected interlock work, which is free to select, easy to control. It is mainly used for processing water slot on PVC profile.
Parameter:
Voltage······························································ 220V 50HZ
Total Power·························································1.14KW
Air pressure·························································0.5-0.8MPa
Air consumption····················································95L/minMax.
Milling depth·························································30mm
Milling length·························································60mm
Diameter of milling cutter·········································Φ5mm
Overall dimension···················································2100mm x 860mm x 1500mm
Weight··································································210KG
