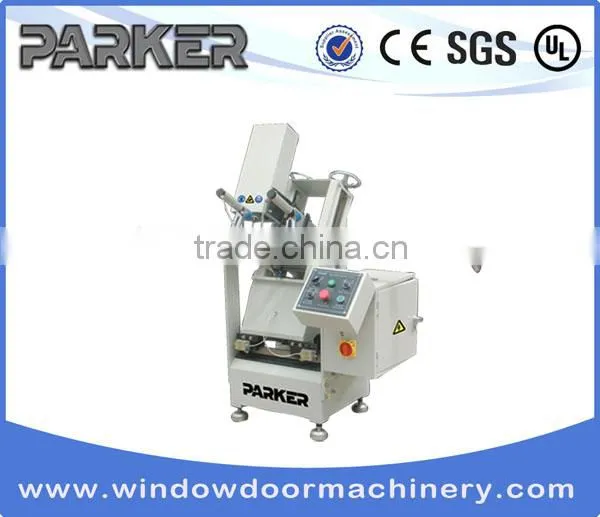

upvc profile window door automatic water-slot routing machine

Model: SCX02-3*60

Features:

1. This machine mainly consists of machine heads, hand driven lift mechanism, profile-holding worktable, machine framework, and electric chest. The whole machine is normally equipped with three machine heads: right machine head, middle machine head, and right machine head.

2. According to different requirements, we can select different allocations such as allocations of left machine head, middle head, low machine head), allocation (middle machine head, right machine head, and low head machine), and so on. All the working combination of every machine heads can be completed through the select switch on the electric chest.

3. This machine uses module structure. During running, all the machine heads can single work, or selected interlock work, which is free to select, easy to control. It is mainly used for processing water slot on PVC profile.

Parameter:

Voltage: 220V 50HZ

Total Power: 1.14KW

Air pressure: 0.5-0.8MPa

Air consumption: 95L/min

Max. Milling depth: 30mm

Milling length: 60mm

Diameter of milling cutter: Ø 5mm

Overall dimension: 2100mm x 860mm x 1500mm Weight: 210KG

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.

During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.

Packaging & Shipping

  Plastic package,Wooden pallet or as required.
