CNC Glass Cutting machines/straight line glass cutting line/round glass cutting machinery
- 10 Set / Sets per Month
- Qingdao
- T/T
Product Details
| Condition: | New | Machine Type: | Glass Cutting Machine | Production Capacity: | 0-150m/min |
| Place of Origin: | Shandong, China | Brand Name: | PARKER | Model Number: | RGC-CNC |
| Voltage: | 380V 50HZ | Power(W): | 380V/50HZ/15-20KW | Dimension(L*W*H): | 15000*2500*1500MM |
| Weight: | 5000kg | Certification: | CE | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

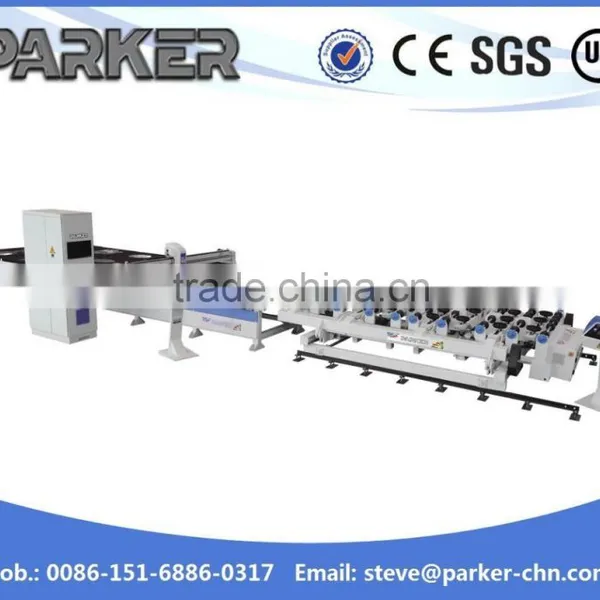

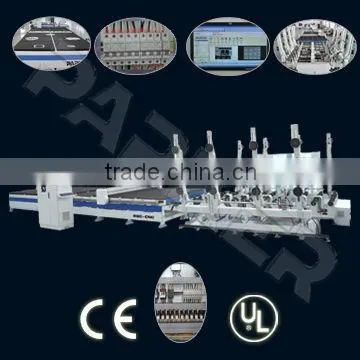

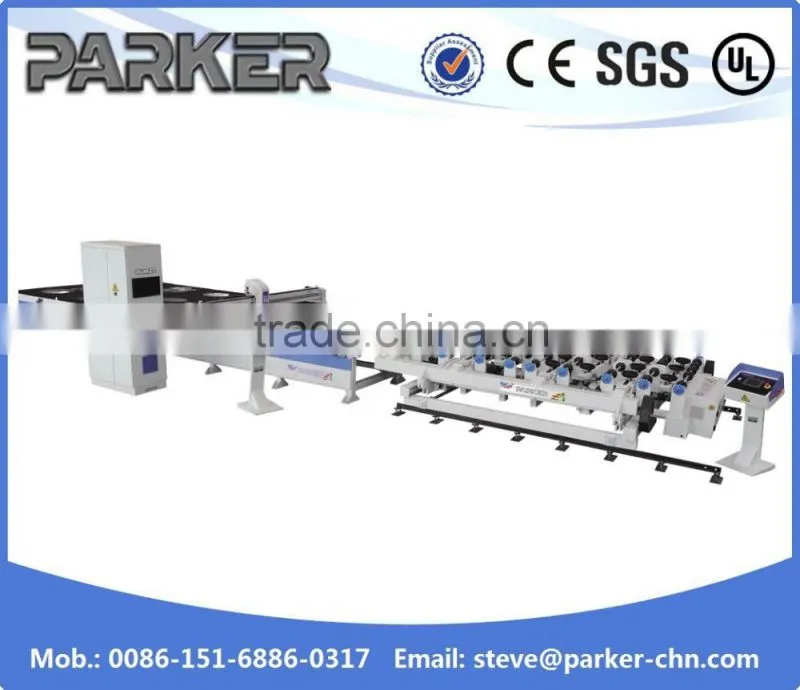

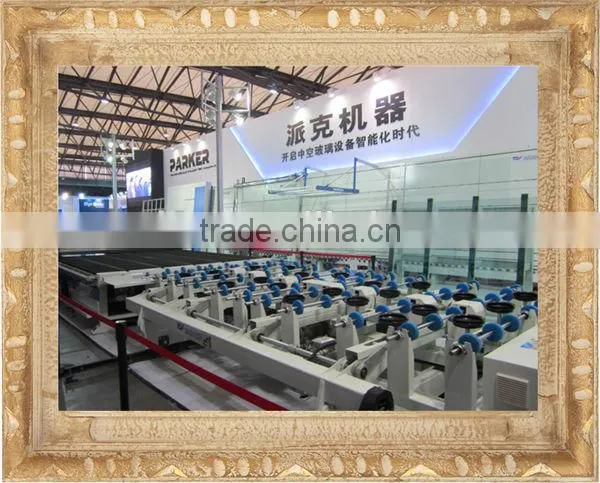

CNC Glass Cutting Produce Line
shape glass cutting machine
Model: RGC-CNC
Features:
ØThree sections: double turning arms multi-position glass loading seciton, automatic cutting section and flotation severing section.
ØAdopt OPTIMA software, ADVANTECH industrial personal computer and OMRON servo motor.
ØIt’s widely used for architectural glass, furniture glass, auto glass, solar glass and so on.
ØGlass orientation: photoelectronic scanning orientation and mechanism orientation
ØUnique shape of glass can be scanned by photoelectronic scanning function and saved in CAD format.
ØIt’s convenient to draw and operate with 300 kinds of picture templates.

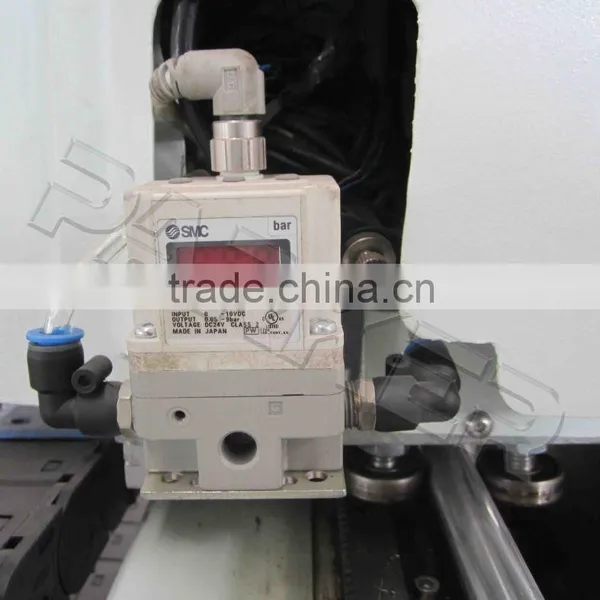

ØCutting operation: use air pressure and the spring SMC precision digital module. The cutter head rotate 360º, available for any shape cutting.
ØConveying device: synchronous belt transmission automatically.
Parameters:
Name | CNC glass cutting produce line |
Model | RGC-CNC |
Power | 380V/50HZ/15-20KW |
Glass loading section | |
Power | 380V/50HZ/9KW |
Max loading size | 2440x3660mm |
Min loading size | 1500x1500mm |
Loading thickness | 2-19mm |
Loading weight | 900Kg |
Air pressure | 0.5-0.8Mpa |
Glass cutting section | |
Power | 380V/50HZ/5KW |
Air pressure | 0.8Mpa |
Max. cutting size | 3660x2500mm |
Cutting bridge speed | 0-150m/min |
Cutter head speed | 160m/min |
Cutting thickness | 2-25mm |
Cutting accuracy | ±0.20mm |
Cutter head location error | ±0.15mm |
Electrical:
Rock and Opinion rail rack system:YYC

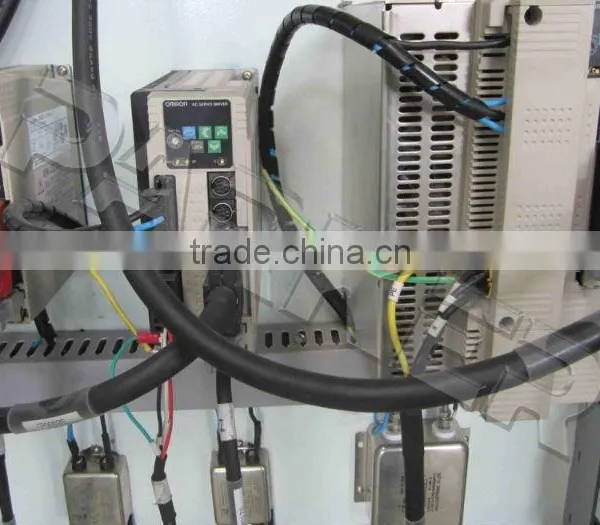

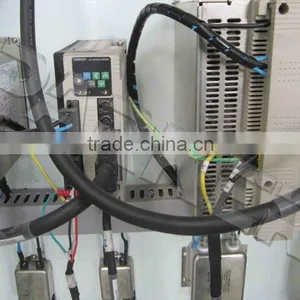

Servo Motor: OMRON
Software : OPTIMA
Driving belt: Martexwell
Electric parts: Schneider.
