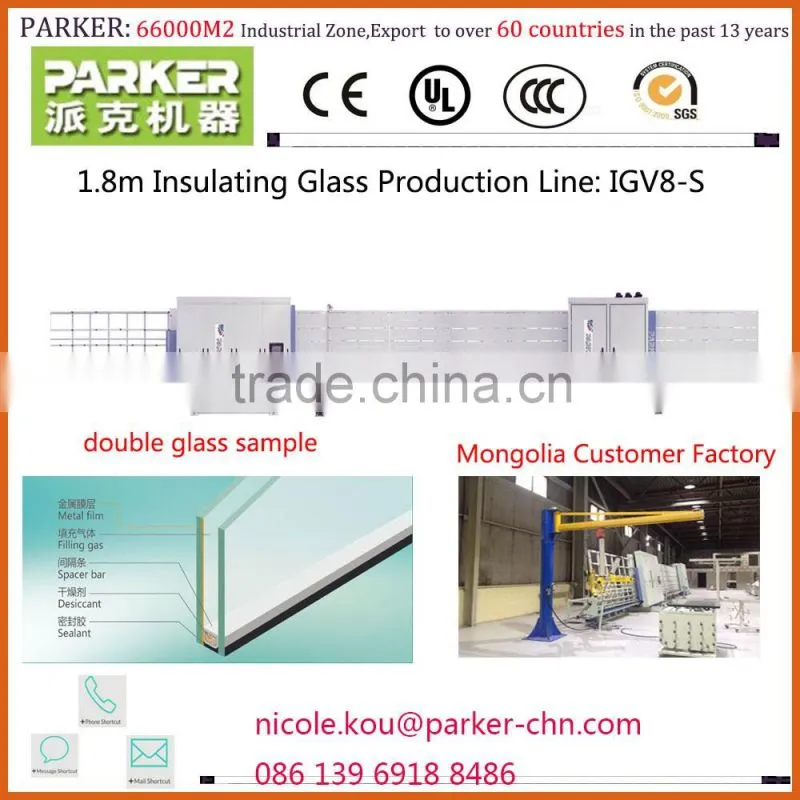

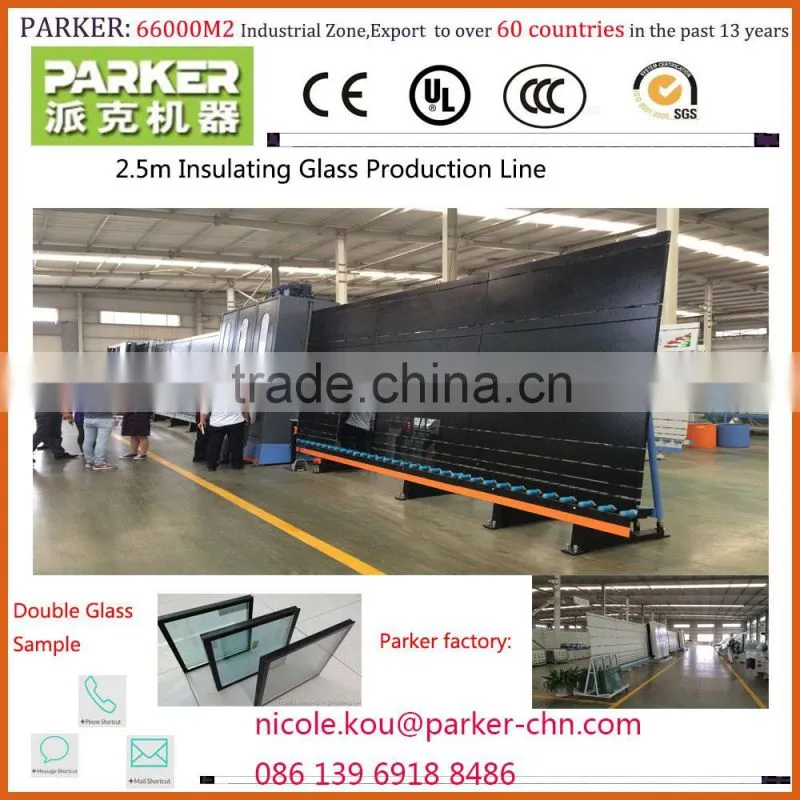

Automatic Insulating Glass Production Line,double glazing glass production line/ Double/Triple Glazing Glass Production Line
B: Video Links:
1) Parker Machinery Co.,Ltd China Real Brief Video Links:
/watch?v=Yk4Hkw7joTg
1) Insulating Glass Prodution Line IGV-22S Video Links:Model: IGV-22
https://youtu.be/dY2GddFaSPs

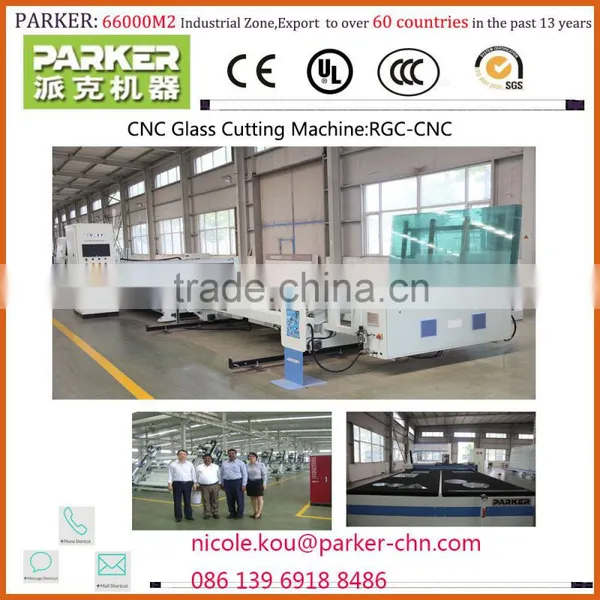

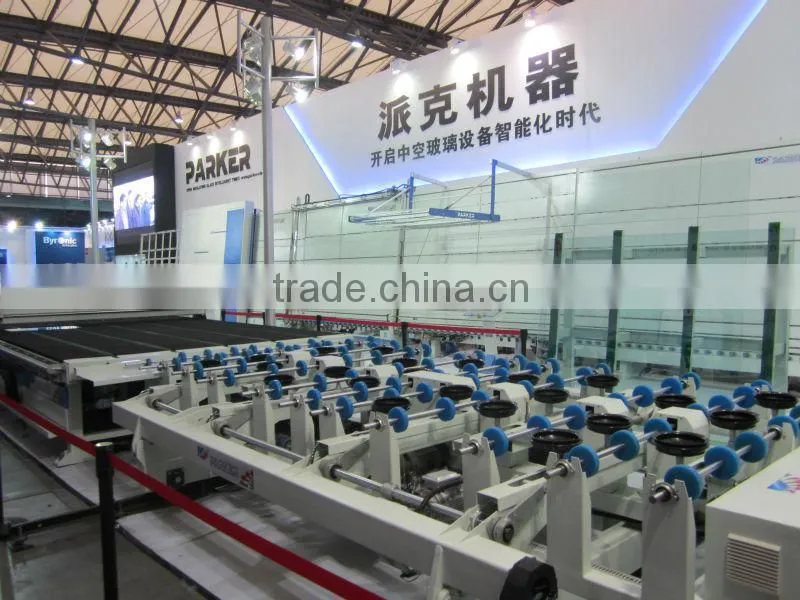

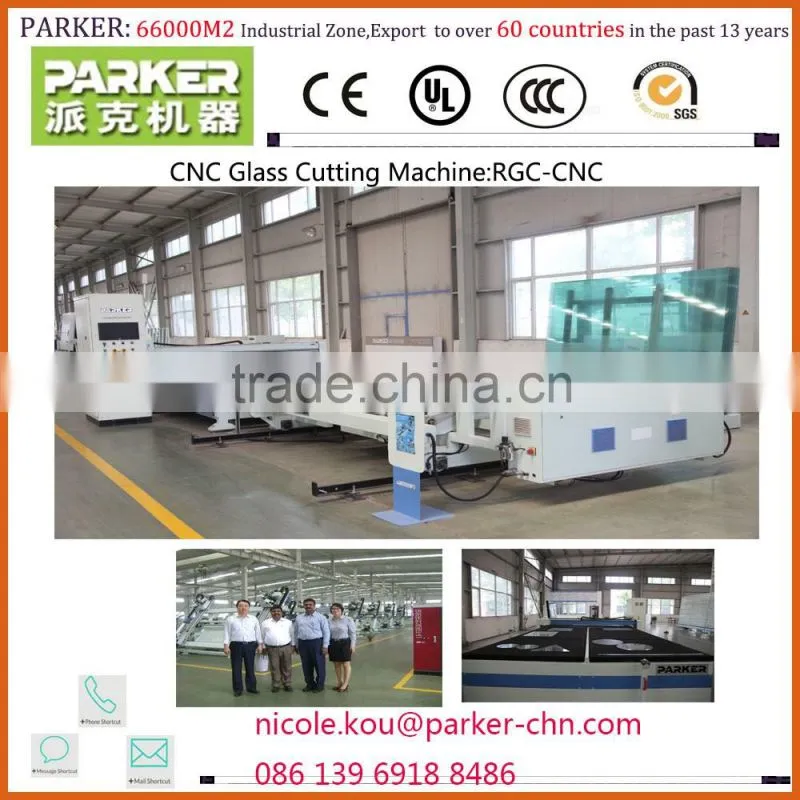

2) CNC Glass Cutting Machine for insulating glass production line Video Links:Model:RGC-CNC
https://youtu.be/4gjdLziQtPg
3)Molecular Sieve Filling Machine for insulating glass production line Video Links:Model:EMSF
https://youtu.be/_1sN2FyvPVs
4)LOW-E/ Coated Glass Film Removing Machine for insulating glass production line Video Links:Model:A4 (any shape!!)
https://youtu.be/bKwu4p8stFQ
5) Rotary Coating Machine for insulating glass production line Video Links:Model:RCT-5
https://youtu.be/roSTQqFjPi4

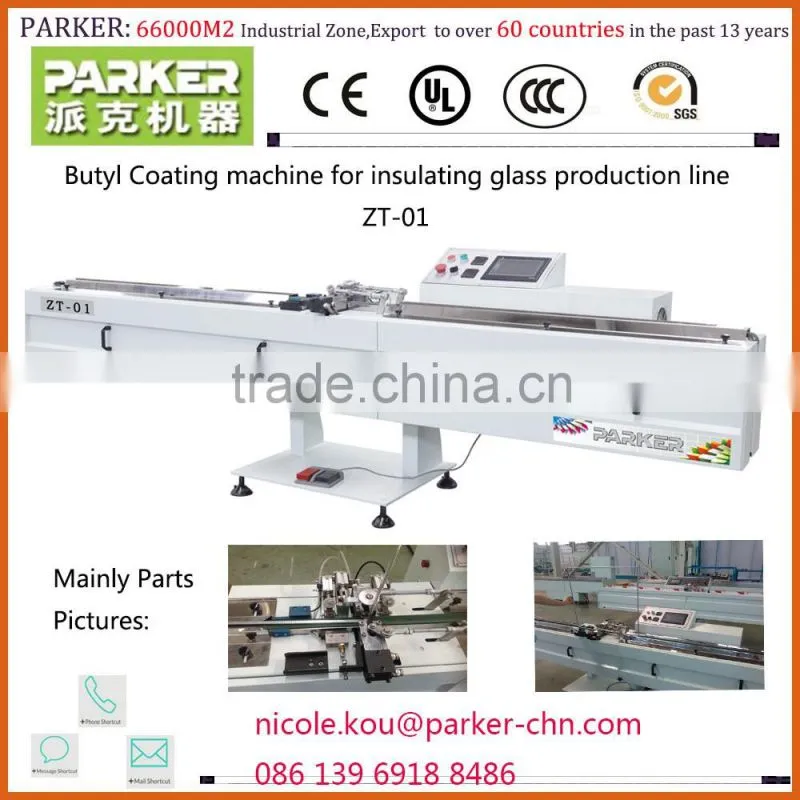

6)Butyl Coating/Hot Melt Glue Coating Machine for insulating glass production line Video Links:Model:ZT-01
https://youtu.be/fg6UgHHbwDc

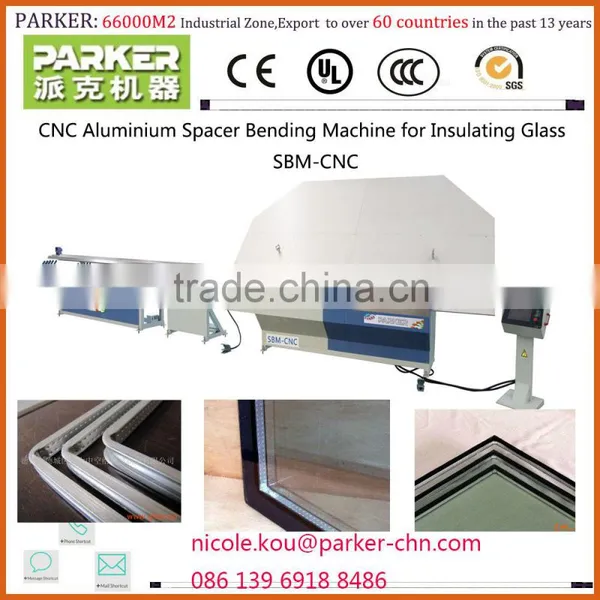

7)CNC Spacer Bar Bending Machine for insulating glass production line Video Links:Model:SBM-CNC
https://youtu.be/8wL-SdBwWaI
Insulating Glass Production Line Specification:
1:Double Glass Glazing Production Line
2:Processing Glass Size: Max:2200x3000(first time),2200x4800mm(second time)
Min:250x480mm
3:Glass Type:Float,Coated Glass
4:Processing thickness insulating glass:12-60mm
Insulating Glass Production Line Parameter:
|
380(+-6%-10%)V 50-60HZ |
|
18KW |
|
160L/min |
|
2200mm x 3000mm |
|
480mm x 250mm |
|
12-60mm |
|
50m/min |
|
20150mm x 2800mm x 3300mm |
|
8-12m/min |
|
6° |
|
3-12mm |
Insulating Glass Production Line Features:
- Ø Germanic technology is adopted in the whole line and main components are imported from world famous brand since it will be stable, convenient to maintain, and easy to handle.
- Ø Insulating glass like standard glass, overlength glass, coated glass, low-E glass, big and small glass, step glass, special shape glass, triple glass, etc can be produced.
- Ø The carbon steel plate with high strength and accuracy is adopted as the whole back plate, since it’s laser cut and CNC bent with high strength and easy to install.
- Ø The convey part is equipped with safe guard for easier maintenance and safety.
Insulating Glass Production Line Input section
Insulating Glass Production Line Washing and drying section.
- Ø This section is equipped with stainless steel to prevent any rust.
- Ø 7 motors are equipped. There are 6 motors supplying 6 brushes and 1 motor supplying the rubber. There are 3 separated tanks outside each pair of brushes with thermostatic heating system to improve the cleaning effect. The first pair of brush won’t work when low-E or tempered glass processed for protection the film controlled by a switch.
- Ø Germany industrial plastic(avoid getting rusty) bearings are used so there is no need to maintain daily.
- Ø This machine adopts high pressure fan, equipped with special air knife with bigger angle others which can improve the drying effect. Multistage frequency conversion control is exclusively used, and multi-speed revolution optimization function can realize all kinds of size of glass movement.
- Ø Big color touching screen can lively monitor working stage of each section, equipped with self-diagnosis function, easy to maintain, also with remote diagnosis function.
Insulating Glass Production Line Inspection section
Insulating Glass Production Line Assembly Pressing section
- Ø Servo motor and ball screw is adopted for locations and pressing for the high accuracy.
- Ø There are 22 suckers with sensor switch under each in the pressing cabinet. The glass will touch the sensor switch when coming by, then the sucker up the touched sensor switch will suck the glass. Other suckers with sensor switch not touched won’t work.
- Ø The distance between two boards of the pressing cabinet can be adjusted automatically according to the thickness and size of the glasses.
Output section
Tilting section

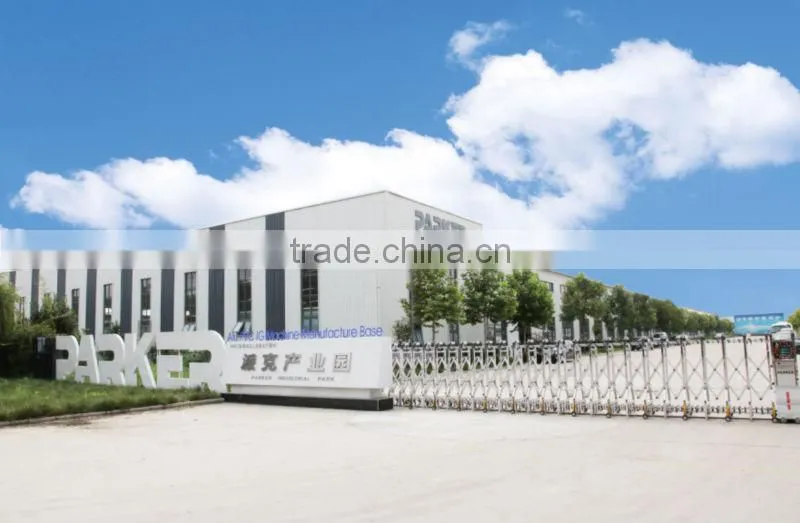

About Us:

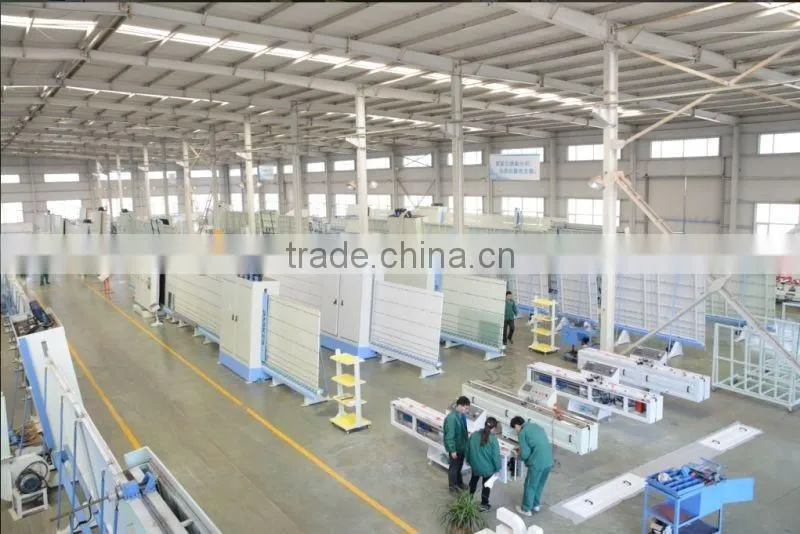

We are a manufacture founded in 2000. 66000M2 Industrial Zone,export to over 60 countries in the past 13 years.:
We have passed BV , SGS ,CE,UL,and Intertek authentication .
Welcome to visit our factory in Jinan City,Shandong Province,China .
Or check the video regarding our factory on website: .
All of our products are made according to customers’ requests .
Parker Machinery Co., Ltd China:
Mainly provides
1)aluminum window door machine,
2)insulating glass machine,
3)PVC window and door machine,
4)curtain wall equipment for aluminum profile,stainess steel, curtain wall etc.
With advanced technological equipment, tremendous technical strength and reliable product quality, aluminum curtain wall high speed copy routers are highly appraised by customers from over 100 countries and districts.

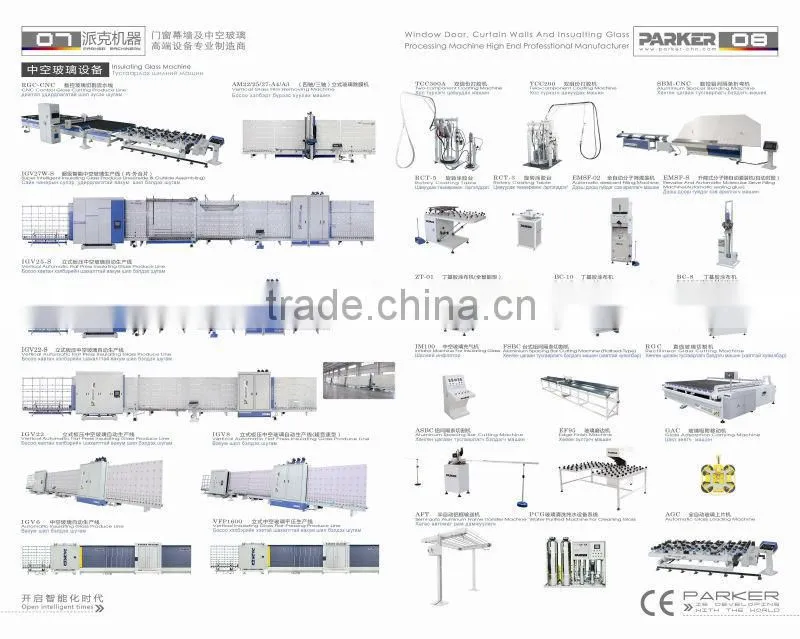

1.Insulating glass production line, model:IGV22(S),IGV25(S),IGV27(S)
2.Butyl extruder machine for insulating glass production line/double glazed glass line:
Model:ZT01 or BC-10,BC-8
3.Two component glue coating machine for insulating glass production line/double glazed glass line: , Model:TCC300A
4.Rotary coating table for insulating glass production line/double glazed glass line: ,
Model:RCT-5 or RCT-3
5.Alu-spacer cutting machine for insulating glass production line/double glazed glass line: , Model:SBM or ASBC

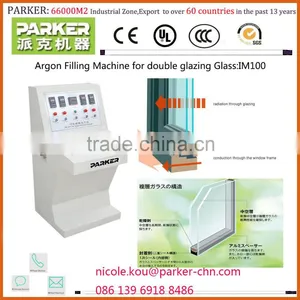

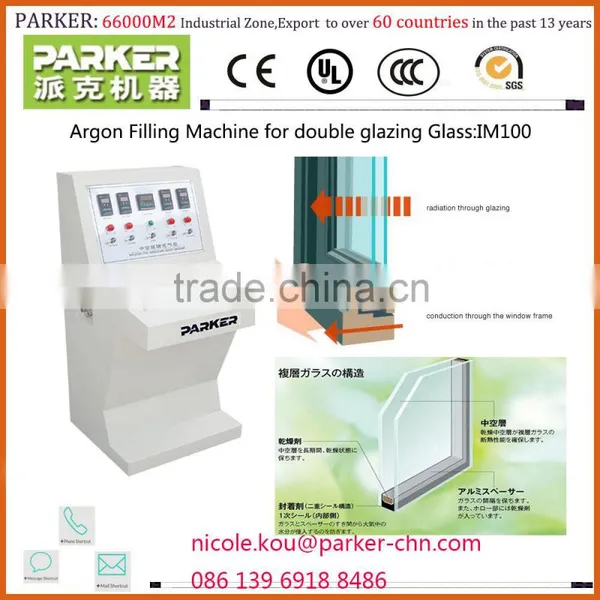

6.Argon filling machine for insulating glass production line/double glazed glass line:
Model:IM100
7.Alu-spacer-frame transfer machine for insulating glass production line/double glazed glass line:
Model:AFT

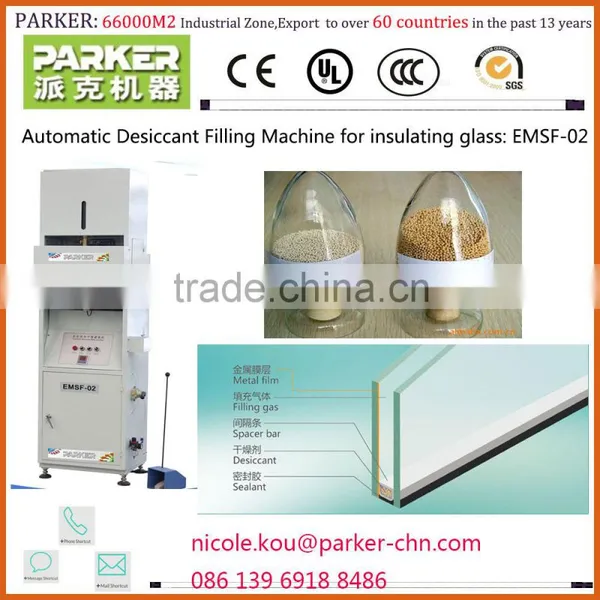

8.Desiccant filler machine for insulating glass production line/double glazed glass line: , Model:EMSF-02,EMSF-S
9.Glass edge finishing machine for insulating glass production line/double glazed glass line: , Model:EF95
Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line , Insulating Glass Production Line
