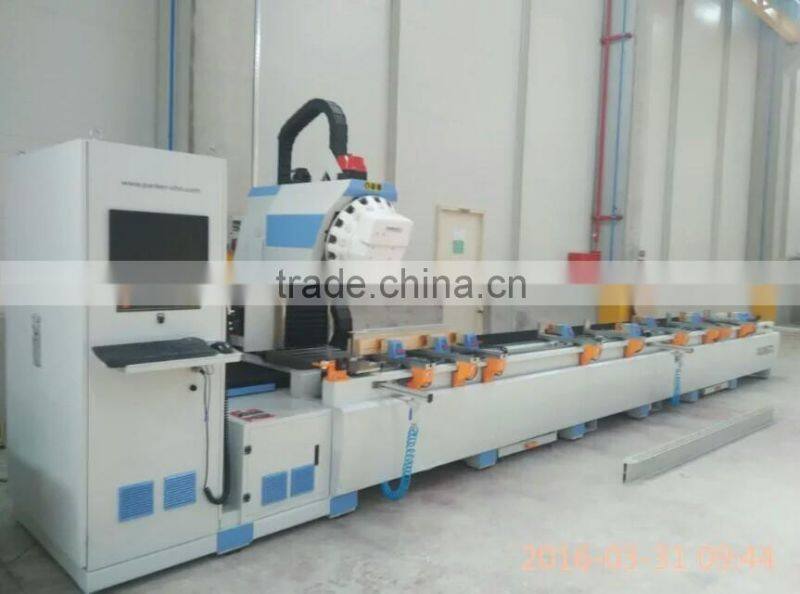

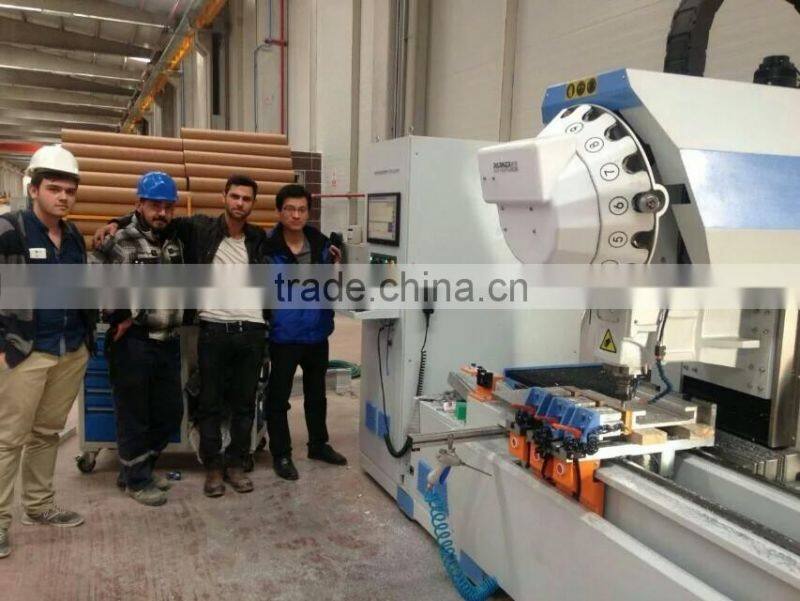

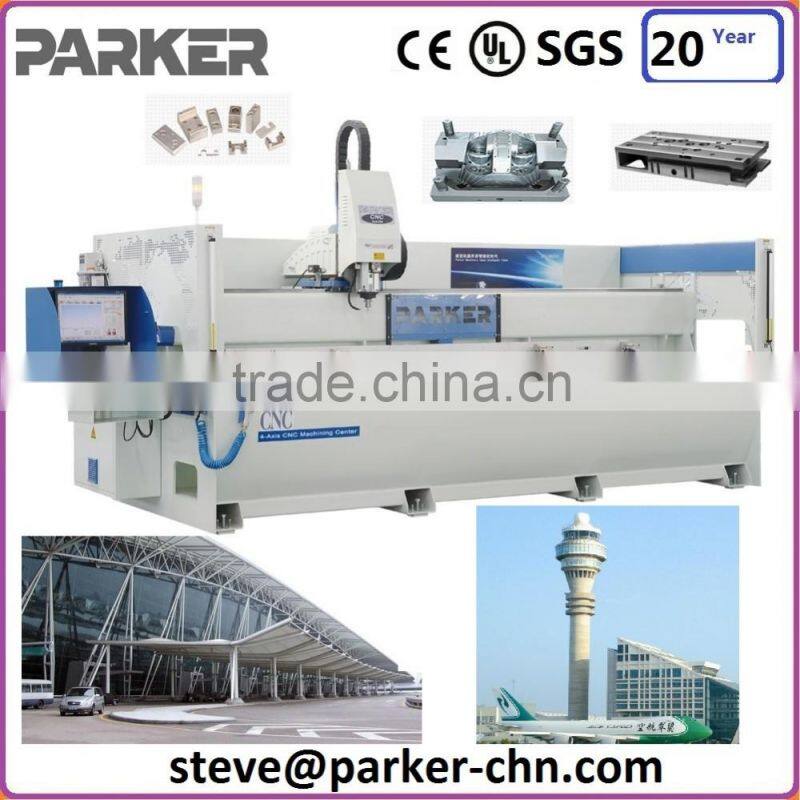

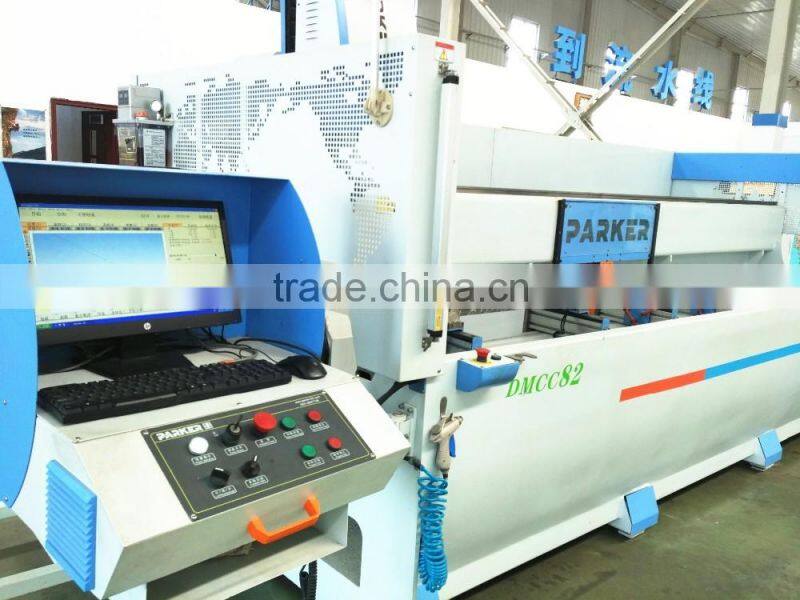

Unitized curtain wall machining center four axis
CNC four axis machining center unitized curtain wall machine center ce parker
Specifications

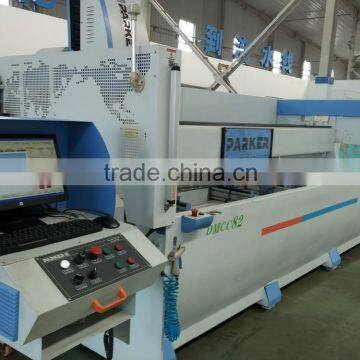

1.4 axis CNC machining center DMCC82
2.8 cutters in the magazine tool
3.milling and drilling
ing speed:120m/min
Features:
1.For curtain wall, aluminium profile and so on.

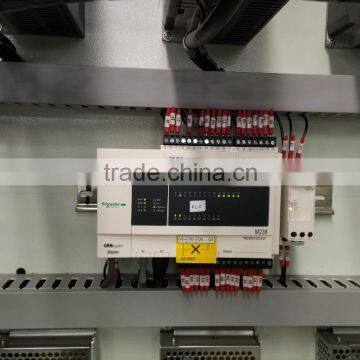

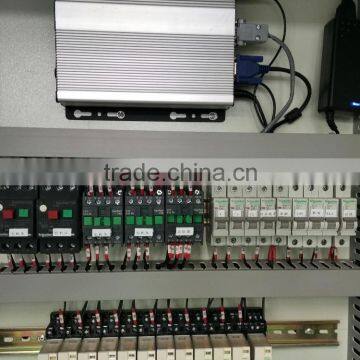

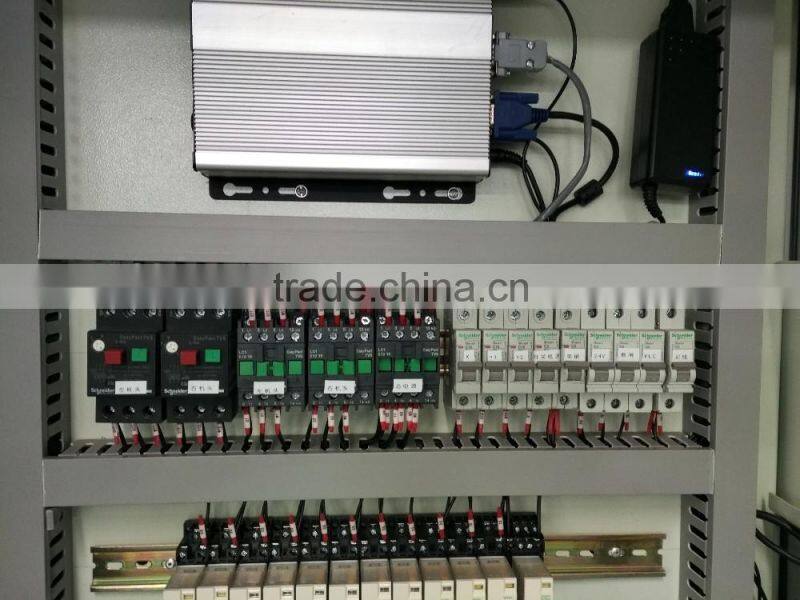

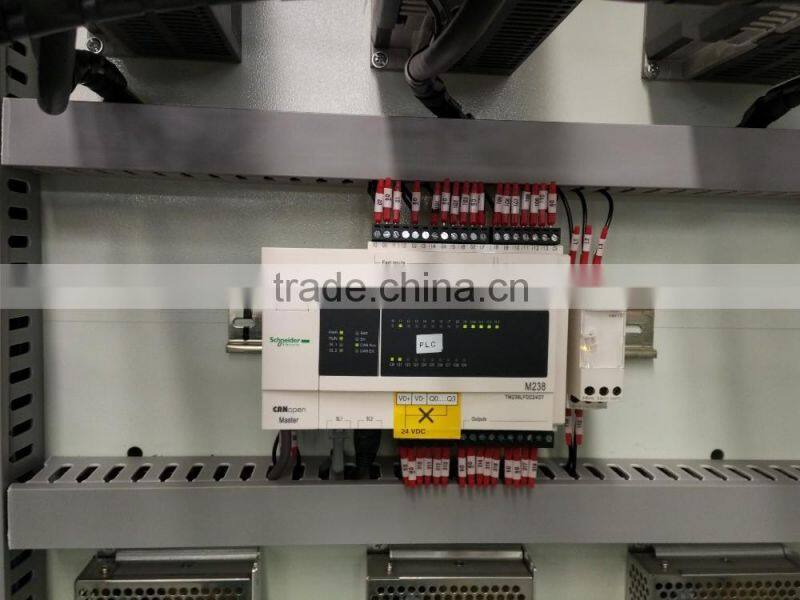

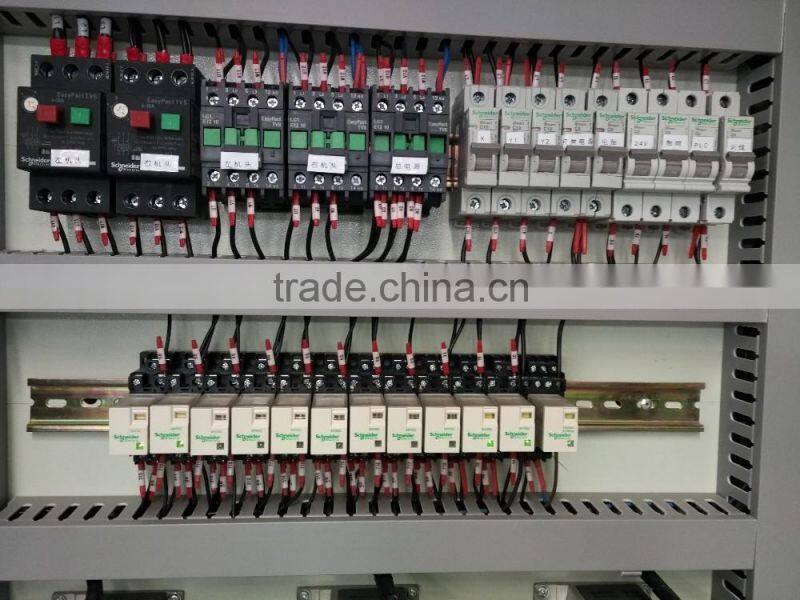

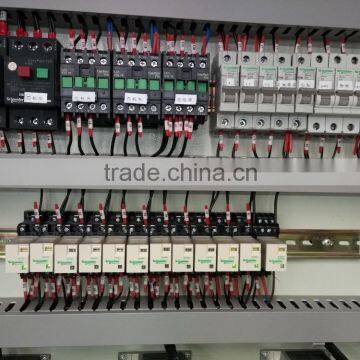

2.Drilling and milling functions.Electric system Schneider
3.Spindle: Italy HSD spindle, 18000 rpm/min.
4.Industrial personal computer: Taiwan ADVANTECH.

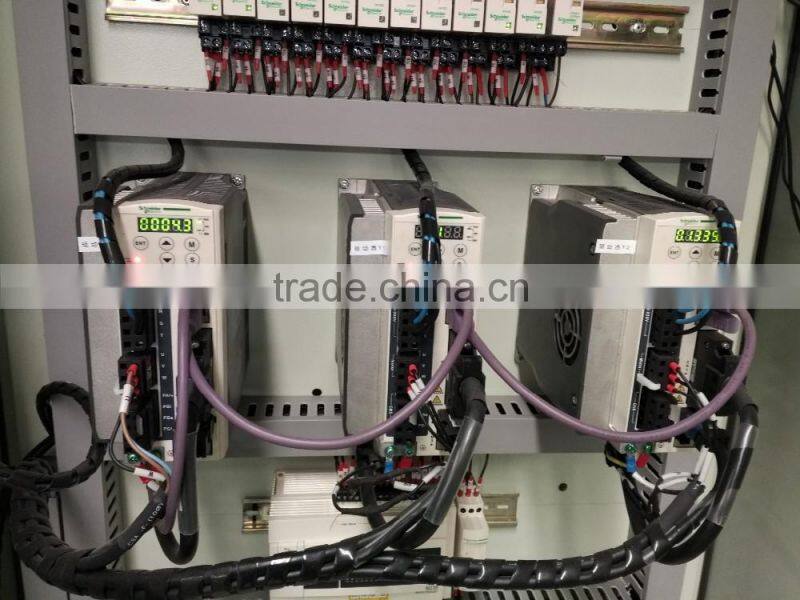

5.Servo motor and driver: Japan OMRON.
6.Ball screw and square guide rail:Japan ABBA.
7.A axis rotate the workpiece between -90°and +90°according to request, so it is available to columnar workpiece.
8.Half dry cooling system, with plant oil, no damage to workers and environment.
9.Continue to work from the breakpoint.
10.Equipped with professional software CAD-CAM.
11.Light curtain to protect workers effectively.
12.Lock Knife block is convenient to change cutters.

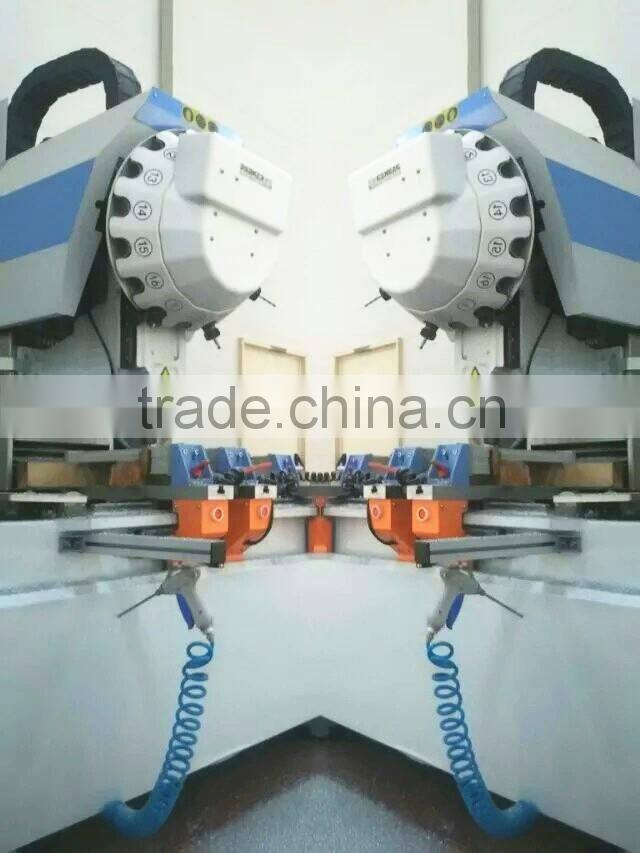

13.Add a door to the tool magazine, with 8 pcs of cutters
14 PARKER OWN PATENT
Parameters:
Name |
4 axis CNC machining center |
Model |
DMCC82 |
Power |
380V/50Hz/11kw voltage can adjust |
Air pressure |
0.5-0.8Mpa |
x axis stroke |
3600mm |
X axis speed |
120m/min |
Y axis stroke |
380mm |
Y axis speed |
80m/min |
Z axis stroke |
400mm |
Z axis speed |
60m/min |
Max. processing speed |
3m/min |
Location error |
±0.05mm |
Resetting error |
±0.02mm |
Processing error |
±0.1mm |
Surface roughness |
Ra12.5μm |
Overall dimension |
5380x1890x2240mm |
Weight |
3000kg |
