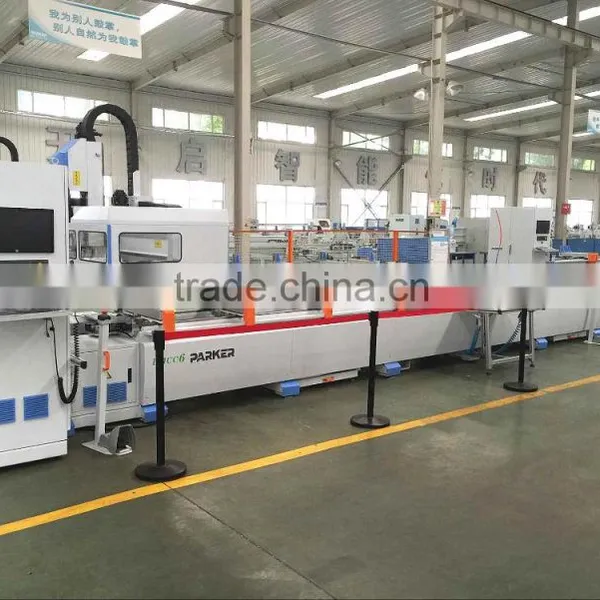

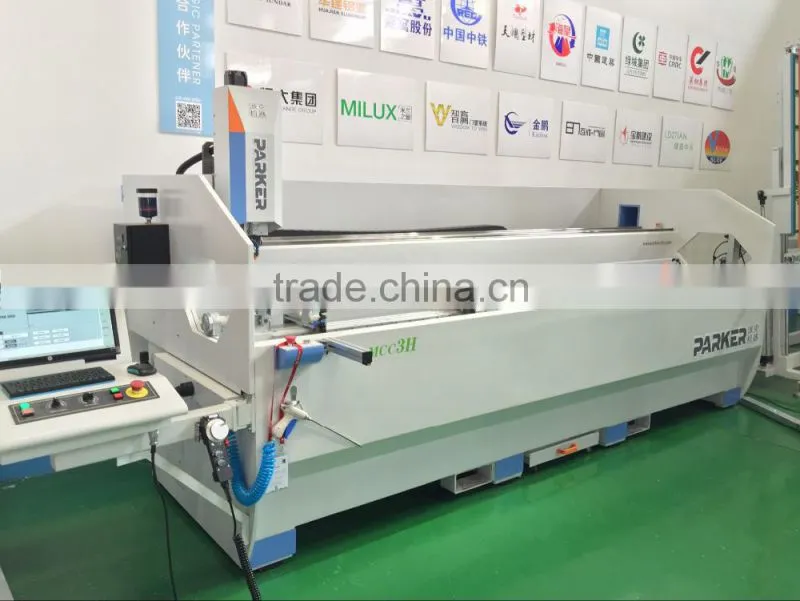

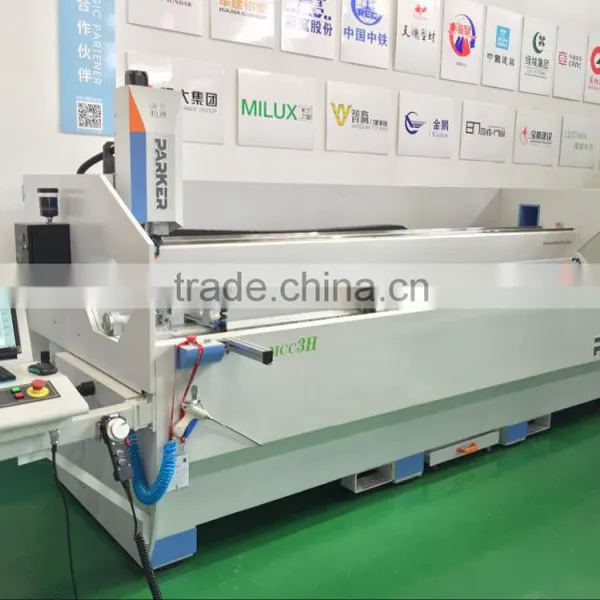

4 Axis cnc Milling Machine Milling Drilling Machine center
PARKER MACHINERY CO.,LTD CHINA. REAL FACTORY SHOW VIDEO LINKS:
https://youtu.be/_SfRQ79ljh8
4/3 Axis cnc Milling Machine Milling Drilling Machine center
https://youtu.be/Ic6lYlCD5AU
Aluminum profile cnc machining center main usage:
Processing launder, taping, milling, mounting hole, lock hole,hardware hole ,water slot ,pulley grove and other slots, cnc drilling and milling machine
Model: DMCC3
Parameter:
Name |
4 Axis cnc Milling Machine Milling Drilling Machine center |
Power |
13kw |
Air Consumption |
240L/min |
X-positioning Speed |
80M/min |
Y-positioning Speed |
60M/min |
Z-positioning Speed |
60M/min |
Tool Magazine |
16 tools |
Max. Speed for Spindle |
11000rpm |
Max. Profile Section |
7000×380×300mm |
Overall Dimension |
9900×2250×2560mm |
Control System |
PA ( Germany ) |
Handwheel |
FUTURE ( Taiwan ) |
Electrical Components |
Schneider ( France ) |
Servo Motor |
YASKAWA ( Japan ) |
Guide Rail |
THK ( Japan ) |
Ball Screw |
TBI ( Taiwan ) |
Coupling |
MIKI PULLEY ( Japan ) |
Pneumatic Components |
SMC ( Japan ), AirTAC ( Taiwan ) |
Reducer |
LIMING ( Taiwan ) |
Bearing |
NSK (Japan ) |
Tool Cooling |
SAGELY ( America ) |
Tool Magazine |
KUJI ( Taiwan ) |
Spindle |
GELLS ( Taiwan ) |
Tool Handle |
ANN WAY ( Taiwan ) |
Rack |
KH ( Taiwan ) |
Tools |
DRESS / WEMARO( Germany ) |
Features:
1. aluminum profile machining center Integrated machine structure with heat styling and good rigidity.
2. Integrated design of electrical cabinet and machine structure, makes transportation, installation, operation much easier with high stability.
3. Equipped with crumb guide device, aluminum and steel crumb will be gathered at bottom drawers, which makes clean much easier.
4. Double-location design with very high efficiency, more work locations can be increased according to customer requirements.
5. X, Y, Z axis max. positioning speeds up to 80M, 60M, 60M / min, which is fastest speed in similar machine among this field.
6. Imported pneumatic circuits for clamping device, make holders have a greater lateral movement range, suitable for processing different profiles.
7. Point control for holder brake, workers can move and locate clamping device much easier.
8. All tank chains, guide rails, racks and ball screws are equipped with protective covers, which can efficiently prevent crumb and extend lifespan of these spare parts.
9. Equipped with automatic lubrication system to facilitate maintenance.
10. Equipped with SAGELY micro lubrication system (USA), vegetable lubrication oil, non-toxic, non-pollution, effectively protect milling tools and increase tool life.
11. Spindle adopts GELLS brand ( Taiwan ), maximum speed up to 12000Rpm.

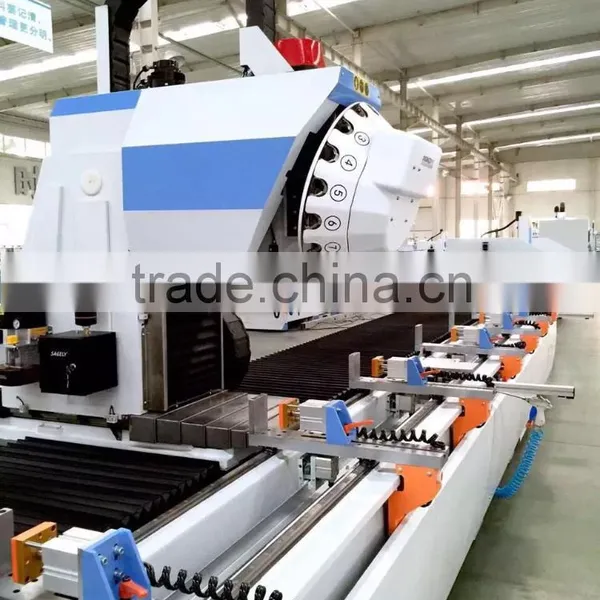

12. Tool magazine adopts KUJI brand ( Taiwan ), equipped with 16 tools, neighboring tool change speed is 2.5 seconds .
13. With rigid tapping function, much faster and precise, it is different with floating tapping.
14. Servo spindle motor can output max. 23.9Nm during low-speed, speed up to 11000rpm, fully suitable for heavy steel, copper and aluminum profiles.
15. Equipped with disc face milling tool, makes face milling much efficient.
16. Imported German PA system is equipped with standard hole database, workers can select graphics and input coordinate directly, with simple operation. For complex or non-standard graphics, workers can process with CADCAM which is equipped on machine.
17. Tool presetting is not needed before exchange tools, tool length can be input into CADCAM system for process, much easier and efficient.
18. Automatic crumb cleaning device ( Optional ).
19. Barcode scanner to scan labels on profiles, fit using CIMS system, to save labor, reduce error and improve production efficiency.

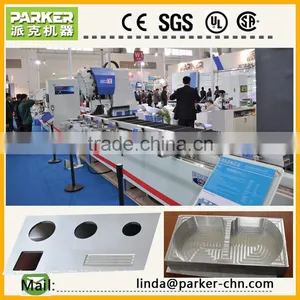

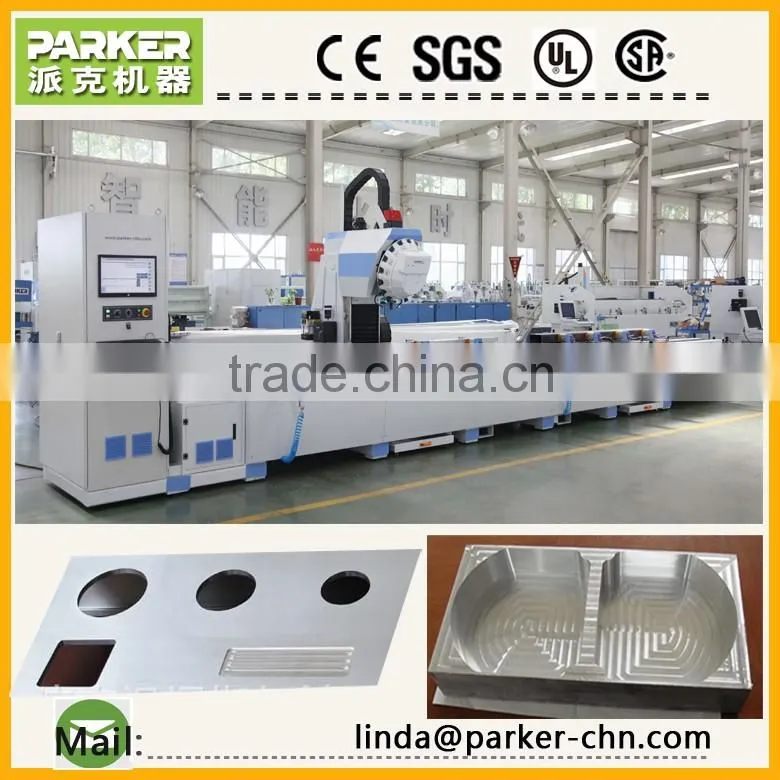

Samples:

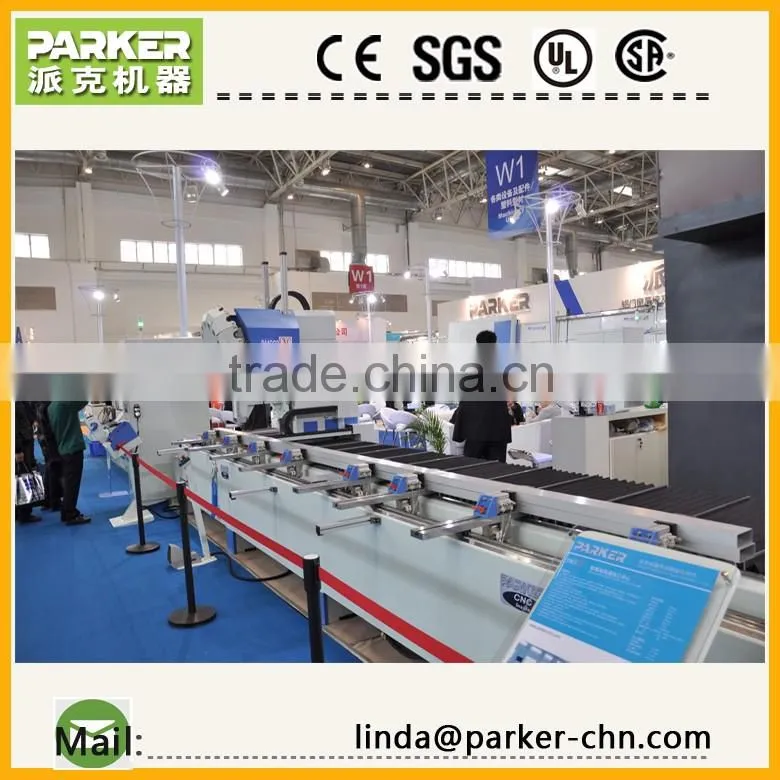

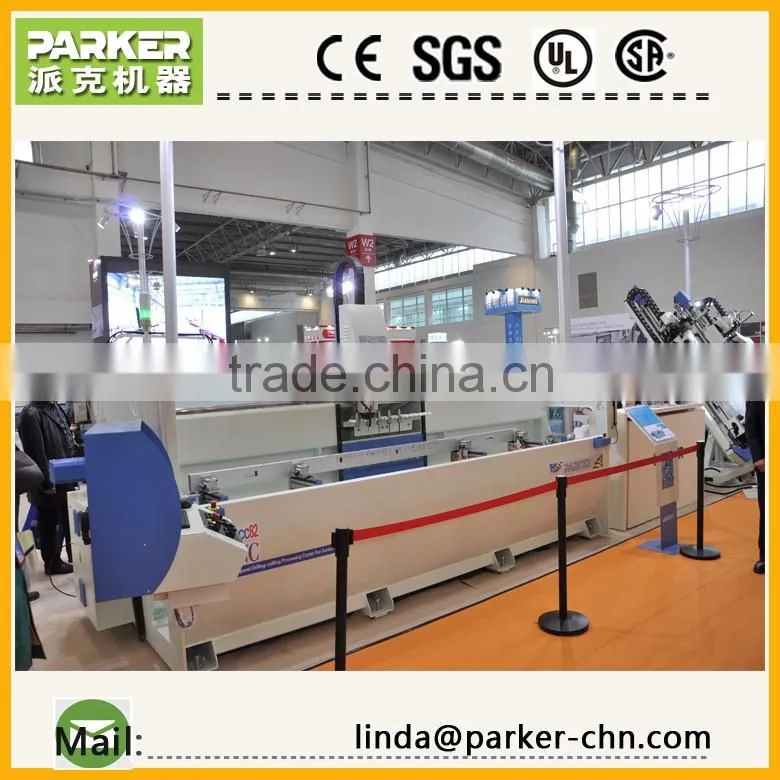

Exhibitions:
Factories of Customers:
Customers Visit:
Parker Service Team:
Packing & Loading:
Contact Information:
JINAN PARKER MACHINERY Co.,LTD
Website: ;
Contact: Linda
Cell: 0086-182-5416-1395
Skype: lindaredouble
Email: linda
