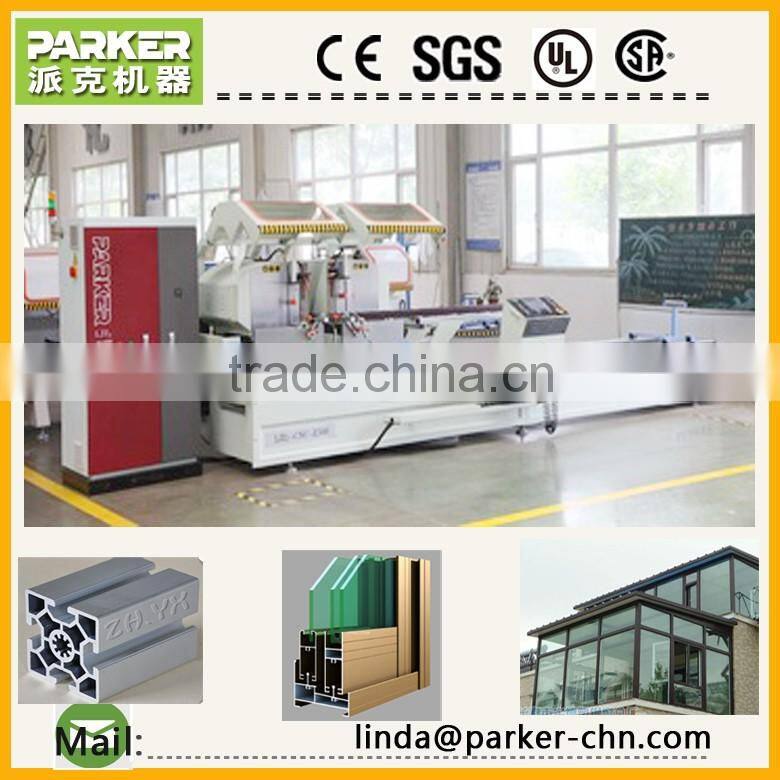

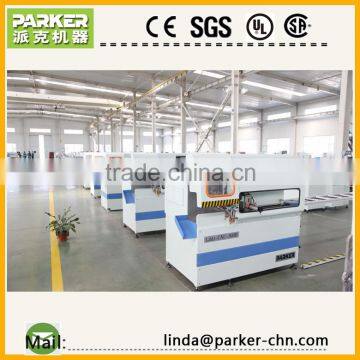

Used Aluminium Profile Cutting Saw Machine for Window and Door
Model:LJZ2-CNC-E500
Aluminium Profile Cutting Saw Machine for Window and Door
Video Links for Machines:
https://youtu.be/_SfRQ79ljh8 ( PARKER MACHINERY CO.,LTD )
https://youtu.be/eO918w0-BRc ( Aluminum double head any angle cutting machine )
https://youtu.be/bBJo8WK5US0 ( Aluminum double head digital dispaly double head cutting machine )
MAIN FEATURES:
1. Used for not only aluminum profile cutting, but also corner connector cutting.
2. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. Adopted high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4. Adopted CNC technique, can achieve various profile auto cutting off.
5. 22.5°, 45°and 90°cutting is available.
6. Imported carbide saw blade give accurate processing and high endurance.
7.Imported linear bearing motion pair ensured steady processing accuracy.
8.Saw blade rotate smoothly due to high accuracy main spindle.
9. Uniform sped feeding and smooth motion due to air-draulic damping cylinder.
10.Auto-opening guard shield ensured safety operation.
11.The two-way location-and-clamping feature high precision and steadiness
Aluminium Profile Cutting Saw Machine for Window and Door Parameters
| Item | Parameter |
| Repeating fixed length precision | ≤0.2mm |
| Cutting angle allowance |
±5′ |
| Cutting plane |
≤0.1mm |
| Cutting harshness | Ra12.5 µ m |
| Power supply | 380V 50Hz (Three phase, four wire) |
| Motor supply | 2.2KW×2 |
| Speed | 2800rpm |
| Saw blade dimension | Φ500×4.4×Φ30×Z120 |
| Air pressure | 0.5—0.8 Mpa |
| Air consumption | 200L/min |
| Cutting angle | 90° 45° 67.5° (22.5°) |
| Cutting length | Max 4200mm Min400mm or Max 5000mm Min400mm |
| Cutting width | Max140mm |
| Cutting height: | Max 300mm |
| Overall dimension | 5500mm(6300mm)×1700mm×1800mm |
| weight | 1800kg |
Production Procedures for Aluminum Window and Door:
Related Machine Pictures:
aluminum corner connector cleat cutting machine :

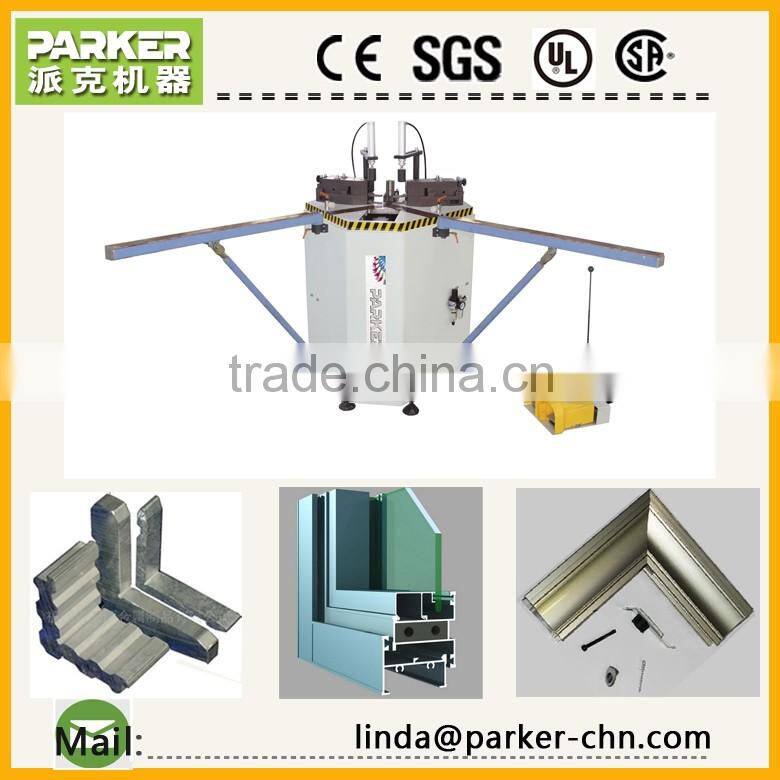

aluminum window door corner crimping machine:

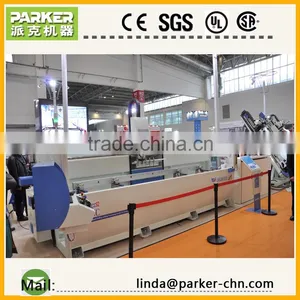

aluminum window door lock hole cnc milling drilling machine:

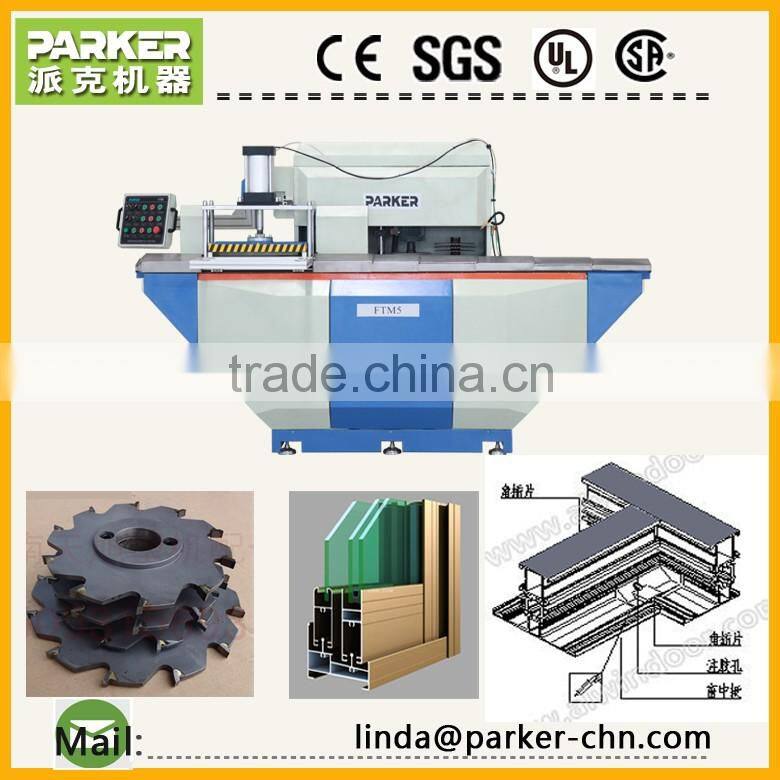

aluminum window door end milling machine:
=============================
