Aluminum Win-door Machine Aluminium Window Door Making Machine
Introduction of aluminium win-door corner crimping machine:
LJJZ2A-100×3500 automatic feeding double corner crimping machine can feed automatically and process aluminum doors and windows. It is used for riveting and crimping corners in double heads of frames or sashes synchronously. Owing to its plunger type hydraulic system, this automatic crimping machine is highly praised for efficient rivet punching and firm corner connecting. Operators can adjust the hold-down and positioning device in the vertical direction, so as to process profiles with diverse specifications. The double corner crimping machine adopts unique double foot valve design that makes pre-compaction more effective, facilitates cutting and corner crimping, and reduces the rejection rate. This automatic crimping machine can be also equipped with an auxiliary compression mechanism to help to feed materials.
Parameters:
| Model | LJJZ2A-100×3500 |
| Type | Aluminum Win-door Machine Aluminium Window Door Making Machine |
| Joint Seam Error | ≤ 0.15 mm |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure of Automatic Crimping Machine | 0.5 to 0.8 Mpa |
| Air Consumption | 60 L/min |
| Oil Tank Capacity | 40 L |
| Max. Distance between the Two Heads | Max. 3000 mm (3500 mm) Min. 450 mm |
| Min. Dimension of the Profile | 450 mm |
| Width of Profile | 100 mm |
| Overall Dimension | 4300 mm × 1200 mm × 1350 mm |
| Weight of Automatic Crimping Machine | 1200 kg |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
Video Link for Machines:
https://youtu.be/_SfRQ79ljh8 (PARKER MACHINERY CO.,LTD )
https://youtu.be/YYm0B5aBZgQ ( Single-corner crimping machine for aluminum win-door frames )
https://youtu.be/S_aNT01UDos ( Four-corner crimping machine for aluminum win-door frames )
https://youtu.be/bBJo8WK5US0 ( digital dispaly double mitre saw for aluminum profile )
https://youtu.be/eO918w0-BRc ( Any angle cutting machine for aluminum profile )
https://youtu.be/ScdzMHnyITs ( Corner connector cutting machine )
https://youtu.be/mchz0AROjRA ( End milling machine for window mullion )
https://youtu.be/3kWoCILaP5Q ( Copy router machine for lock holes )
https://youtu.be/ejSiHpYBGn8 ( CNC copy router machine with milling drilling function )
Production Procedures for Making Aluminum Windows Doors
Related Machine Pictures:
aluminum window corner key /cleat cutting saw machine:

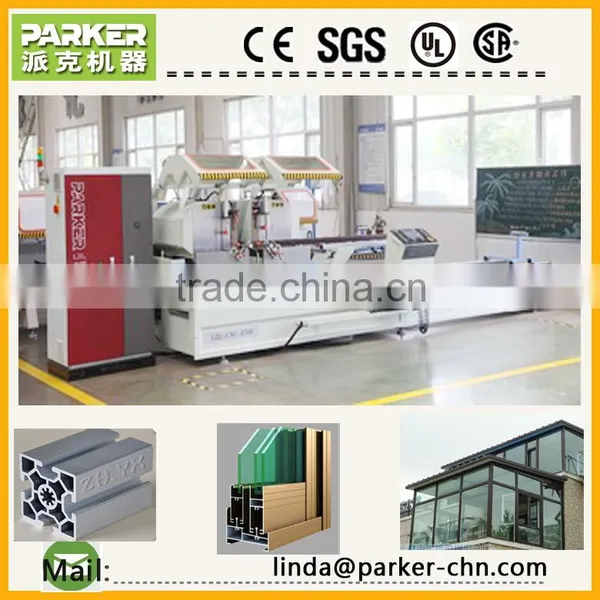

aluminum win-door profile double head mitre cutting saw machine:
aluminum window door lock hole cnc milling drilling machine:
