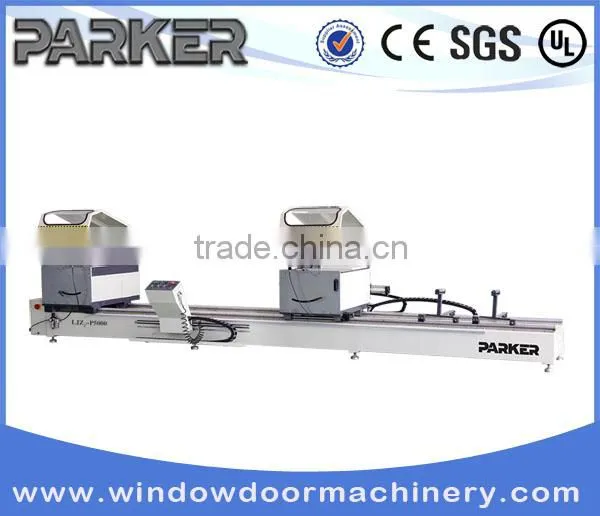

Jinan PARKER aluminium window door profile double cutting machine LJZ2-450*3700

Feature:
1、Imported carbide saw blade give accurate processing and high endurance.

2、Saw blade rotate smoothly due to high accuracy main spindle.

3、Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

4、Used for cutting aluminum at -45°,90°and 45°

5、One time processing can cut off the required length.

6、The safety devices designed specially clamp the devices when power is cut off suddenly. So the safety of operator is assured.

Parameter:

Repeating fixed length precision：≤0.2mm

Cutting angle allowance：±5′

Cutting plane：≤0.1mm

Cutting harshness：Ra12.5 µ m

Power supply：380V 50Hz (Three phase, four wire)

Motor /Trailor motor supply：1.5KW×2 /0.55kw

Speed：2800rpm

Saw blade dimension：Φ450 x 4 x Φ30mm, Z=120mm

Air pressure：0.4—0.6Mpa

Air consumption：200L/min

Cutting angle：-45°, 90° and 45°

Cutting length：Max. 3,700mm, min. 400mm

Cutting width：Max120mm

Cutting height:Max 200mm

Overall dimension：4700 x 1600 x 1600mm

Weight：1500kg
