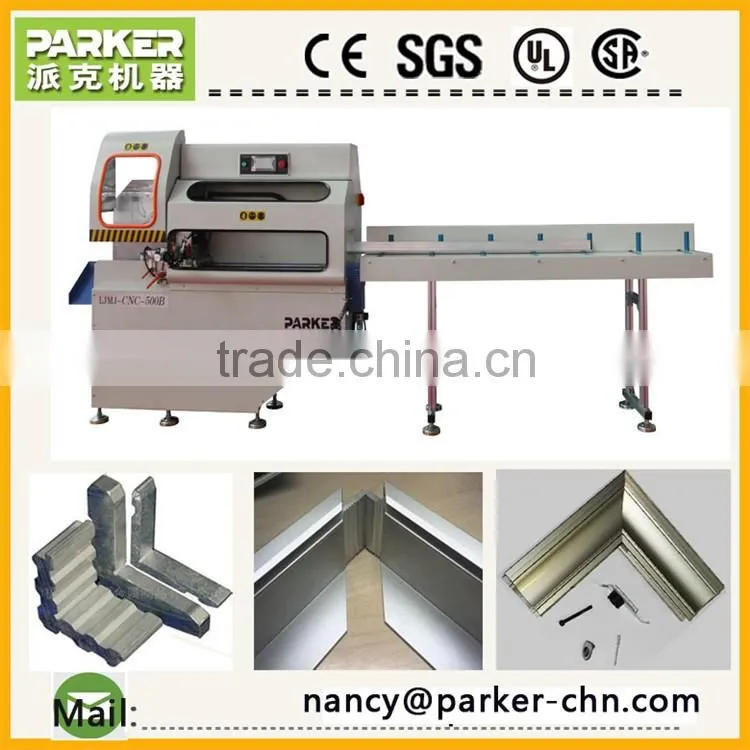

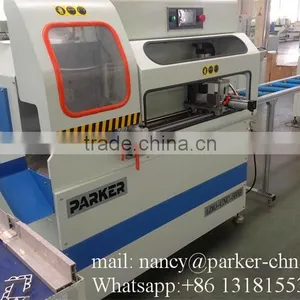

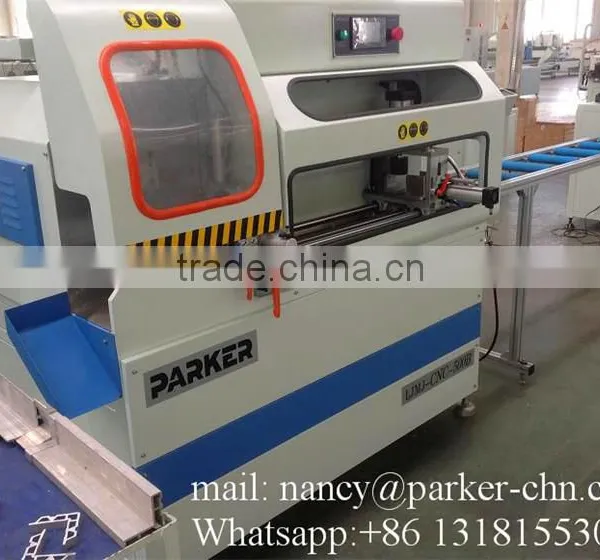

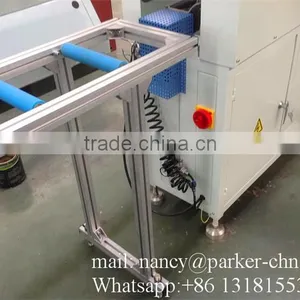

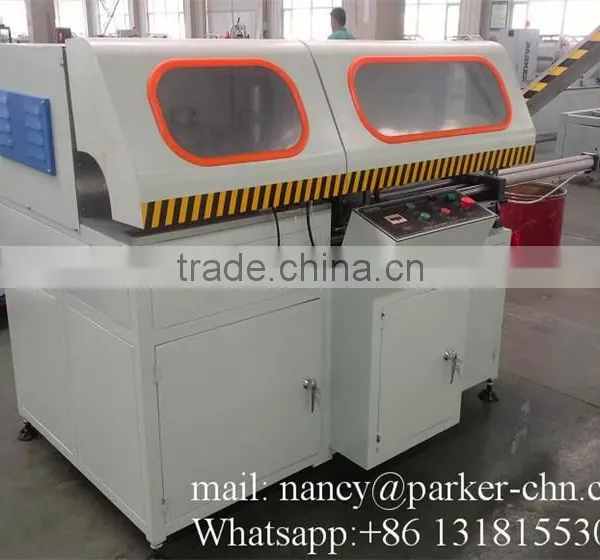

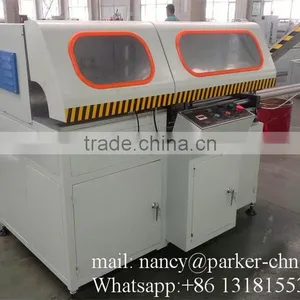

CE aluminium automatic corner key cutting machine
Features:
1.For aluminium corner key cutting.
2.High efficiency, high precision, for large scale produce.
3.Automatically cutting and counting.
4.When power is turned off suddenly, clamping devices keep fixing profiles to protect wokers and machine.
5. Safe guards get down during cutting, arise after cutting.

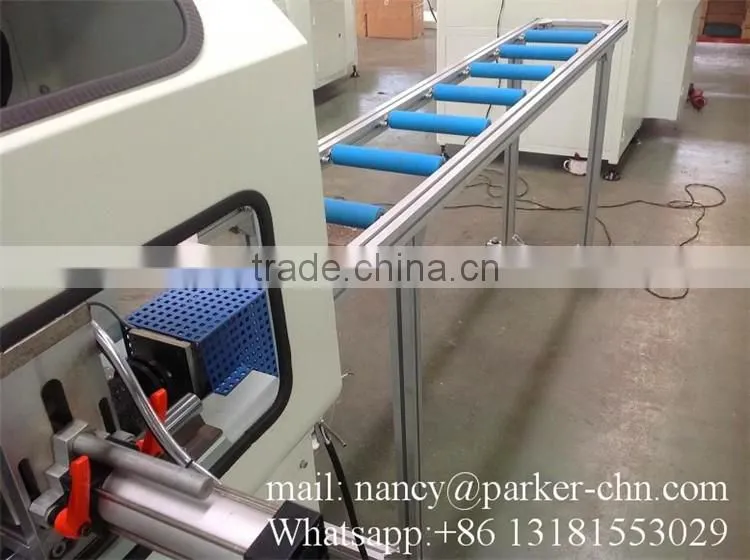

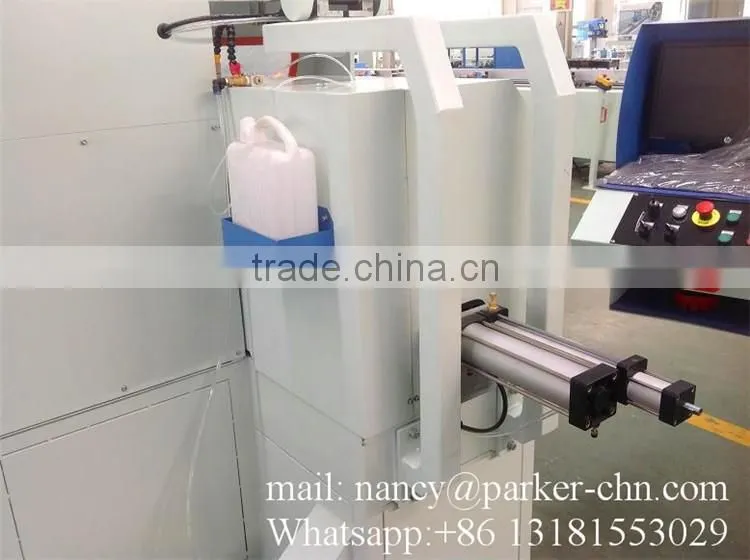

6. Automatically feeding by air cylinder.

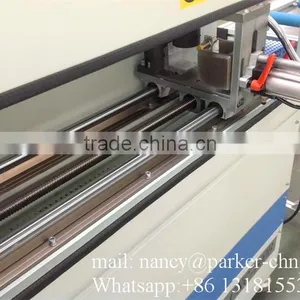

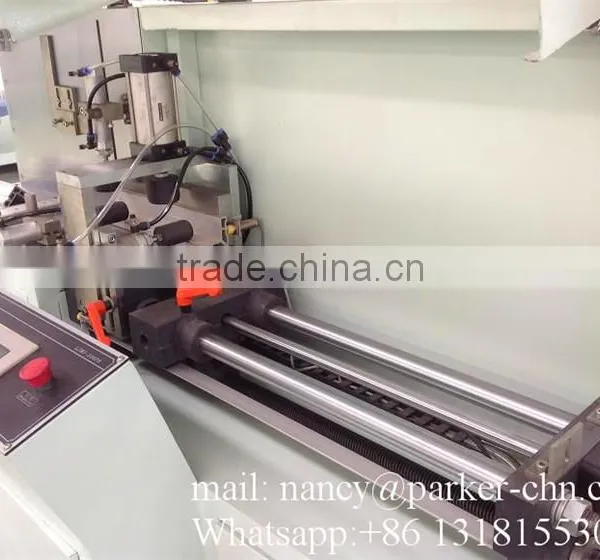

7.Imported high quality hard metal saw blade-WEMARO;PLC-OMRON; touch screen-Eview; squar guide rail-HIWIN;digital indicator-M10
Parameters:
| Name | Aluminium CNC corner key cutting machine |
| Model | LJMJ-500PS |
| Power | 380V/50HZ/2.2Kw |
| Rotary speed | 2800rpm/min |
| Air pressure | 0.5-0.8MPa |
| Air consumption | 200L/min |
| Blade specification | 500x30x4.4mm, Z=120 |
| Feeding speed | 0-3m/min |
| Feeding length | 3-600mm |
| Cutting width | Max. 140mm |
| Cutting height | Max. 140mm |
| Surface plainness | ±0.1mm |
| Surface harshness | Ra12.5 µ m |
| Overall dimension | 1750x1600x1600mm |
1.Sample service:
Engineer available overseas
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
