Circulating multi-purpose vacuum water pump

Specifications

Circulating multi-purpose vacuum water pump
1.Fast suction speed
2.The bleed air flow is large with five-way pipe in parallel

Circulating multi-purpose vacuum water pump

I. Brief description of water pump:

The pump with large bleed air flow improved on the basis of SHB-B type.

Five taps can be used alone or in parallel.

The bleed air flow is large with five-way pipe in parallel, with can meet the demand of large scale Rotary Evaporator or Reaction Kettle.

II. The classification of water pump:

SHB-B95: tee junction, back valve and gas-extraction nozzle adopt the PP material; The body of the flume adopts polyvinyl chloride (PVC) material, the casing adopts carbon constructional quality steel cold rolling plate and the surface adopts electrostatic spraying.

SHB-B95A: the casing adopts stainless steel material (ANSI standard), the rest is the same as SHB-B95.

III. Technical data:

Model	SHB-B95
Power (W)	550
Power supply (V/Hz)	220/50
Flow (L/min)	100
Lift (m)	12
Safety functions	Check valve
Materials of machine casing	Static electricity spray
Maximum vacuum degree (MPa)	0.098
Single tap air sucking amount(L/min)	10
Number of taps	5
Capacity of water storage tank (L)	57
Materials of water tank	Polyvinyl chloride
Dimensions (mm)	450L*350W*820H
Weight (kg)	36

IV.The pictures of  vacuum pump:

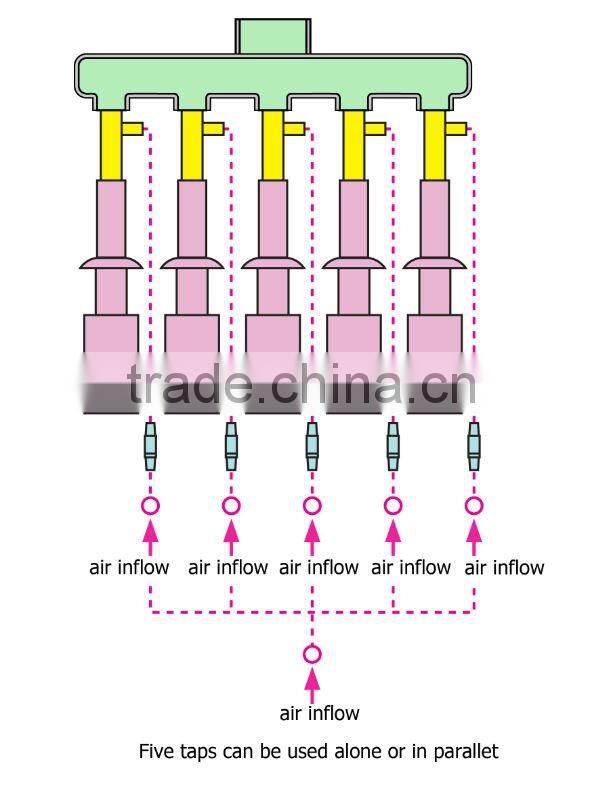

Explanation of five-way pipe connection       five connected(for supporting)

The five gas-extraction nozzle can be connected into a gas-extraction head by the five-way pipe. Conduct vacuum pumping work on a device, increase the bleed air flow and quicken the pumping speed.

V. Recommended assemble:

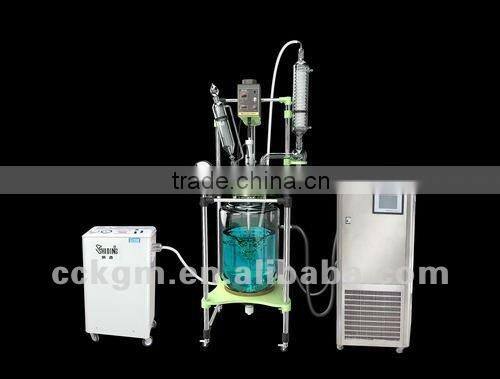

Water pump/Reaction kettle/Hermetic refrigerating and heating circulators



Refrigeration circulator/Ratary evaporator/Water pump
