Modern design SHB-IV A double surface water ring vacuum pump

Specifications

Modern design SHB-IV A water ring vacuum pump
1.Multi-purpose vacuum pump with the same side
2.Four taps,four gauges display

SHB-IV A Type Double Surface Water Circulating Multi-purpose Vacuum Pump



I. The characteristics of uses:

Our company has independent intellectual property right (Patent No. : 02326872.7; 02228289.0)

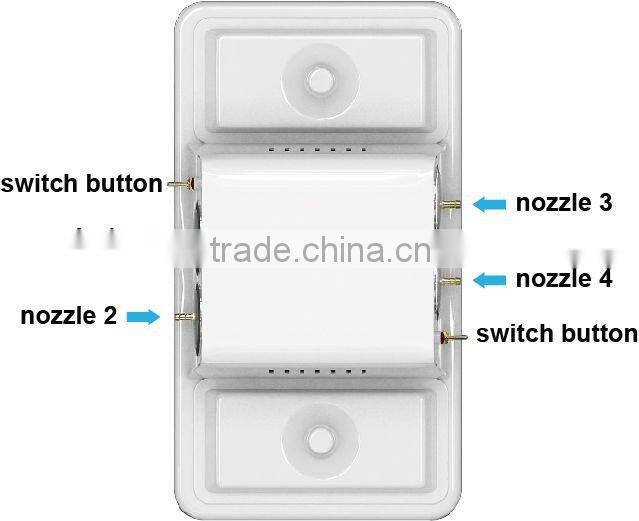

A. Multi-purpose vacuum pump with the same side.

B.The expansion of SHB-III type, the characteristics and material are the same as SHB-III type.

C.Four taps vacuumize at the same time, four gauges display, independently of each other, experiments can be conducted by four operators simultaneously, which can reduce the laboratory cost.

D.Be convenient for the teacher to demonstrate visually and monitor the experiment directly, meanwhile, the student can start and shut down the machine at any side.



II. Technical data:

Model	SHB-IV A
Power (W)	250
Power supply (V/Hz)	220/50
Flow (L/min)	80
Lift (m)	10
Maximum Vacuum Degree (MPa)	0.098
Single Tap Air Sucking Amount (L/min)	10
Number of Taps (n)	4
Safety functions	Check valve
Capacity of water storage tank (L)	18
Materials of Water Tank	PP
Dimensions (mm)	470L*260w*516h
Weight (kg)	17

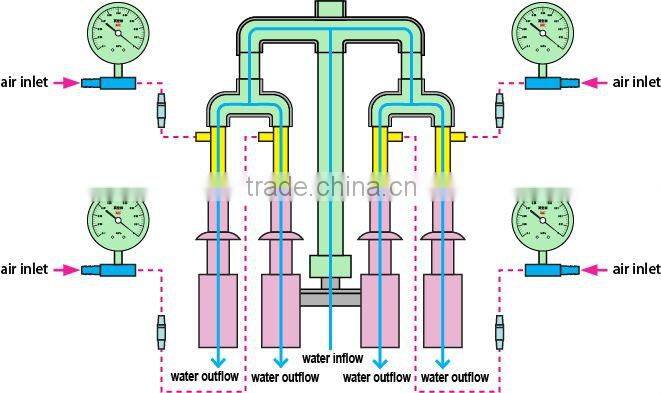

III.The working principle of vacuum pump:



IV.The company elegant demeanour:
