SHB-IIIS water circulating mini vacuum pump

Specifications

SHB-IIIS water circulating mini vacuum pump
1.double-tap,double-display
2.suitable for acid gas
3.Negative pressure instrumen

SHB-IIIS water circulating mini vacuum pump

I. Brief description of SHB-IIIS mini vacuum pump:

Our company has independent intellectual property right (Patent No.:ZL02326871.9)

The series of Multi-purpose Circulating Water Vacuum Pump takes circulating water as working fluid, uses the negative pressure created by fluid jet to eject.



Providing vacuum condition for the processes of evaporation, distillation, crystallization, drying, sublimation, filtration and decompression, degassing and so on, particularly be suitable for labs and small scale test of industries such as universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.



II. Features:

A.Cyclically use water, save the precious water resources.

B.Save more than 35% of electricity than other type of vacuum pump.

C.The fluid muffler purpose made can reduce the gas in water and make the vacuum degree higher and more stable; reduce the friction between gas and fluid, reduce the noise.

D.Double-tap, double-display, can be used alone or in parallel.

E.Resist corrosion by acid, alkali and solvents.

F.The special machine is made by the famous electric manufacture ODM with fluorine rubber sealing, the inner of which can’t be intruded by corrosive gas.



III. Attention matters:

1.Need to replace the water in the flume regularly to ensure the purity of water quality, the vacuum degree and to avoid dirt stains.

2.Can be used to extract corrosive gas, need to shorten the period of water changing.



IV. Like products:

A. SHB-III: shell, flume, ejector, tee junction, check valve and gas-extraction nozzle adopt the PP material; pump body and impeller (six flow passages, dual seal) adopt stainless steel plate pressing, the material is in accordance with the ANSI standard.



B. SHB-IIIA: ejector and gas-extraction nozzle adopt stainless steel material (ANSI standard), the rest is the same as SHB-III.



C. SHB-IIIS: pump body adopts the PP material, which is more suitable for acid gas, the rest is the same as SHB-III.



D. SHB-IIIT: lucid flume is convenient for observe water level and water quality, the rest is the same as SHB-IIIA.



V. Technical data:

Model	SHB-IIIS
Power (W)	180
Power supply (V/Hz)	220/50
Flow (L/min)	80
Lift (m)	10
Maximum Vacuum Degree (MPa)	0.098
Single Tap Air Sucking Amount (L/min)	10
Number of Taps	2
Safety functions	Check value
Capacity of water storage tank (L)	15
Materials of Water Tank	PP
Dimensions	385L*280W*420H
Weight	11

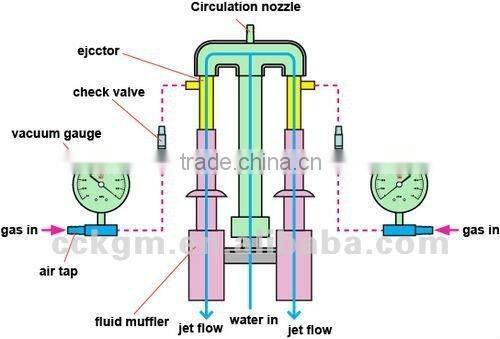

VI. Vacuum principle diagram:



VII. Connecting device:

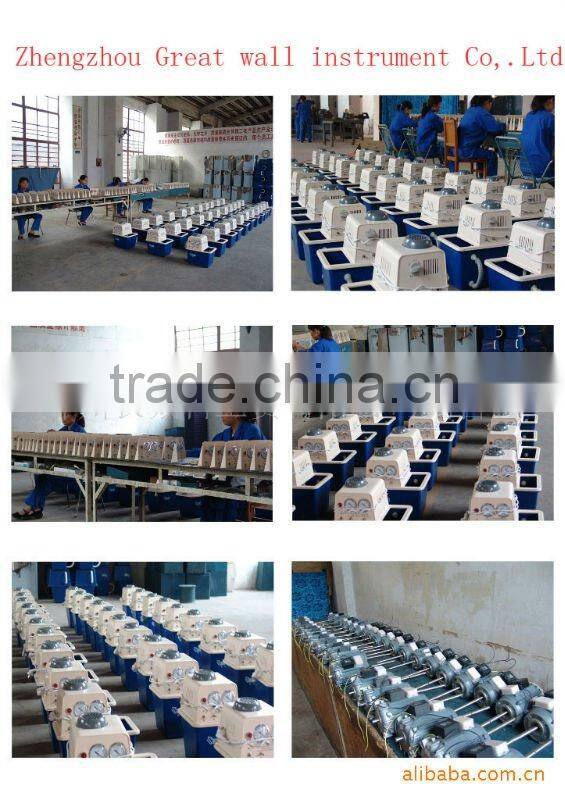

VIII. Our company:
