Specifications
I PID controlII Adopt SUS304 stainless steel heater
III Dual sensor
IV Strong magnetic stirring
I Brief introduction of Heating magnetic blenders :
Can be used as water bath and also can be used as oil bath. Strong magnetic stirring is set in trough solid.
II Main features of Heating magnetic blenders :
♦ Adopt ANSI 304 stainless steel heater which can be used for oil and water bath.

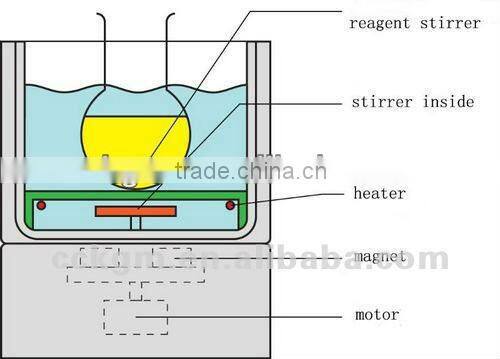

♦ Strong magnetic stirring makes the stirrings in the flume rotate synchronistically to ensure the even and precision of high viscosity solution temperature.
♦ The performance of high performance direct current brushless machine is stable and can be used continuously.
♦ High temperature magnet will not lose magnetism when continuous use in 300°C.
♦ PID control, digital display
♦ Dual sensor, temperature can be converted and displayed in flume and reaction vessel.
III Technical data of Heating magnetic blenders :
Model |
HWCL-1 |
HWCL-3 |
HWCL-5 |
Temperature range(°C) |
Room temp ~200 |
||
Temperature stability (°C) |
±1 |
||
Temperature display |
Keypad input Digital display |
||
Speed-setting |
Knob setting |
||
Speed (rpm) |
0~2000 |
||
Bath size(mm) |
140×90 |
220×110 |
250×140 |
Bath volume(L) |
1 |
4 |
6.5 |
Heater wattage (W) |
300 |
1500 |
1500 |
The max flask input (ml) |
500 |
3000 |
5000 |
Power Supply(V/Hz) |
220/50 |
||
Dimensions (mm) |
190L×200W×190H |
260L×280W×230H |
260L×280W×260H |

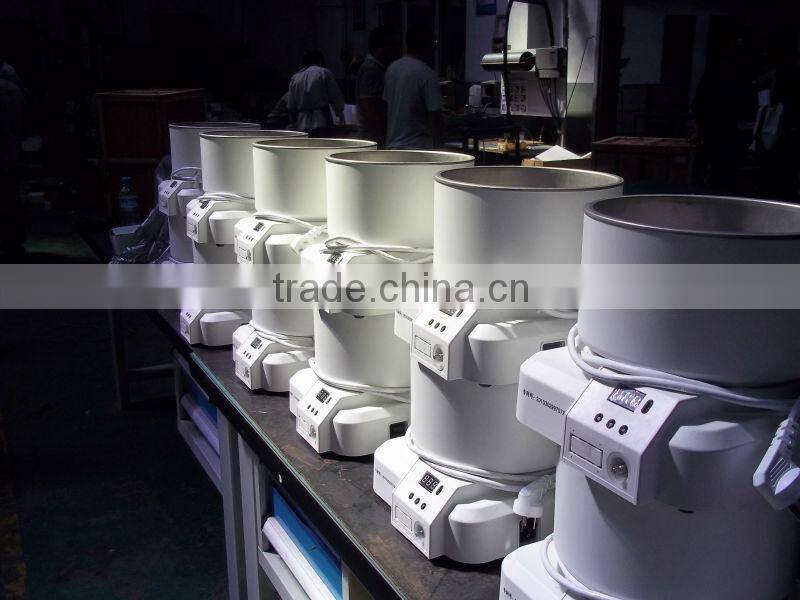

IV Working pictures
V Internal pictures:

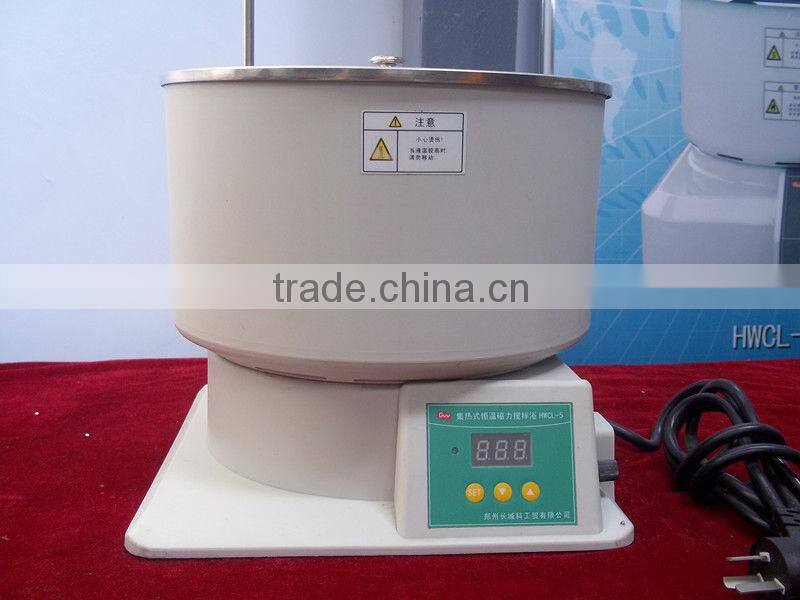

VI Pictures
