Specifications
XZS200 Vibration Sieve1.Small GMP/CE Vibration Sieve
2.Stainless steel Vibration Sieve
3.High efficiency Vibration Sieve

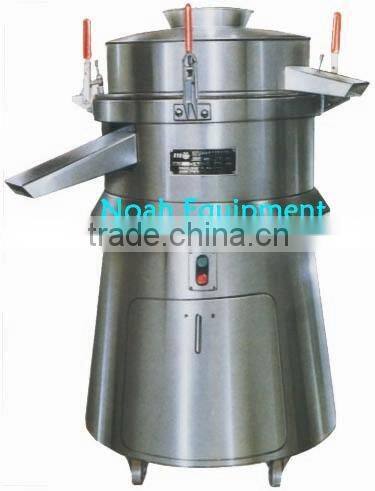

XZS200 Small Vibration Sieve
Applications:
1.The XZS200 Small Vibration Sieve consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, and main shaft bearings.
2.The adjustable centric weight can drive the central line of main shaft through motor under the unstable state. It produces centrifugal force that makes raw materials from vortex in the sieve.
3.The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials. The features of the machine are compact in structure, small in size, free of dust and with little noise. Also it is highly efficient and low energy consuming, easy of move and maintenance.
Main technical specifications:
Model |
XZS200 |
XZS400 |
XZS500 |
XZS800 |
Productivity kg/h |
>30 |
50-200 |
100-350 |
150-850 |
ScreenMeches |
3-350 |
12-200 |
12-200 |
12-200 |
Screen Diameter mm |
200 |
400 |
500 |
800 |
Power kw |
0.12 |
0.55 |
0.75 |
1.5 |
Overall Dimensions mm |
315*500 |
560*1100 |
700*1200 |
960*1300 |
Net weight kg |
22 |
100 |
180 |
250 |
Each model is provided with double,or triple outlets | ||||
Adjustment of vibratiy rang 1-6 mm | ||||
