Help CenterXZS200 Chemical Powder Vibration Sieve
Related Products
Specifications
XZS200 Vibration Sieve1.GMP/CE powder vibration sieve for all powder and fluid.
2.Small steel powder vibration sieve.

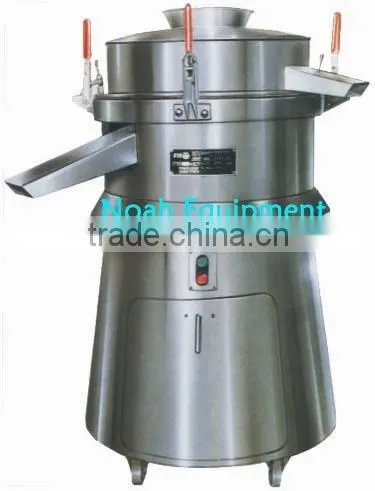

XZS200 Chemical Powder Vibration Sieve
Applications:
1.Our XZS200 Chemical Powder Vibration Sieve/XZS Whirlpool vibration sieve machine consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, and main shaft bearings.
2.The adjustable centric weight can drive the central line of main shaft through motor under the unstable state. It produces centrifugal force that makes raw materials from vortex in the sieve.
3.The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials. The features of the machine are compact in structure, small in size, free of dust and with little noise. Also it is highly efficient and low energy consuming, easy of move and maintenance.
Main technical specifications:
Model |
XZS200 |
XZS400 |
XZS500 |
XZS800 |
Productivity kg/h |
>30 |
50-200 |
100-350 |
150-850 |
ScreenMeches |
3-350 |
12-200 |
12-200 |
12-200 |
Screen Diameter mm |
200 |
400 |
500 |
800 |
Power kw |
0.12 |
0.55 |
0.75 |
1.5 |
Overall Dimensions mm |
315*500 |
560*1100 |
700*1200 |
960*1300 |
Net weight kg |
22 |
100 |
180 |
250 |
Each model is provided with double,or triple outlets | ||||
Adjustment of vibratiy rang 1-6 mm | ||||
Service
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of tablets / pills. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make dies for customers.
Contact
Looking forward to working with you!
Contact: Mr.David Shi
Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd.
TEL: 0086-514-87667998,87667808 FAX: 0086-514-87665265
ADD:No.B of ChuangXin Industry Area,XinTian Guanlan.Baoan District Shenzhen Guangdong China.
