Help CenterXZS500 Automatic Rotary Separator
Related Products
Specifications
XZS500 rotary separator1.Little noise vibro-energy Vibratory Separator.
2.Stainless steel GMP round separator.

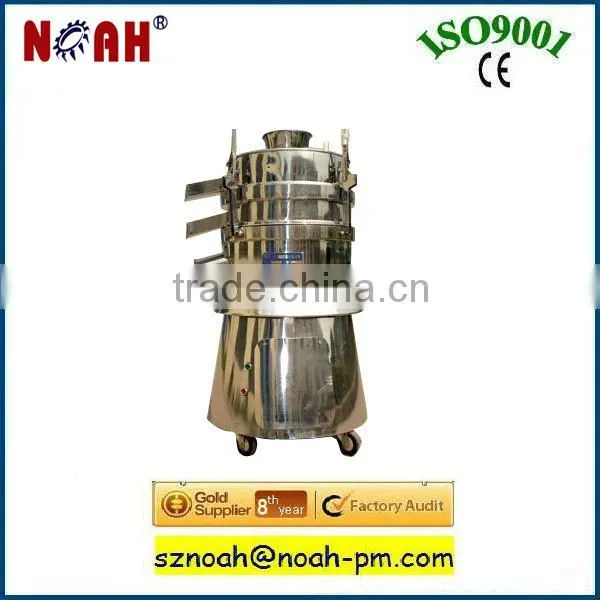

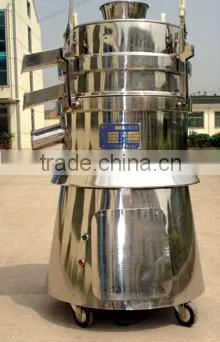

XZS500 Automatic rotary separator
Applications:
1.The XZS500 Automatic rotary separator , vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, and main shaft bearings.
2.The adjustable centric weight can drive the central line of main shaft through motor under the unstable state. It produces centrifugal force that makes raw materials from vortex in the sieve.
3.The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials. The features of the machine are compact in structure, small in size, free of dust and with little noise. Also it is highly efficient and low energy consuming, easy of move and maintenance.
Main technical specifications:
Type |
XZS500 |
Output |
100-300kg/h |
Screen mesh |
12-200 |
Screen diameter |
500mm |
Power |
0.75kW |
Overall size |
700 x 1200mm |
Net weight |
180kg |
Adjustment of vibrating range |
1-6mm |
Each model is provided with double or triple outlets | |
About us:
Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
