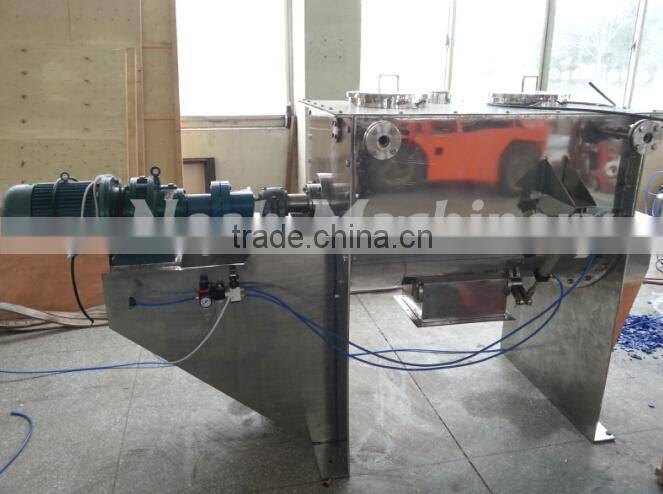

WLDH -1.5 Powder Ribbon Mixing Machine
Applications:
Our WLDH -1.5 Powder Ribbon Mixing Machine is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
It comprises of U-shaped container, transmission parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix.
Ribbon mixer has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so as to clean and change the device.
Specifications:
It is a high efficiency horizontal ribbon mixer.
Principle:
It is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing.
Features:
Big coefficient of loading, small occupied area.
It is difficult to clean when it is used to mix viscous or adhesive material.
Technical paramenters:
Model/Project |
All Volume (m3) |
Loads coefficient |
powder (kw) |
Size |
weight (kg) |
WLDH -0.1 |
0.1 |
0.4-0.8 |
3 |
1190×740×770 |
330 |
WLDH -0.3 |
0.3 |
4 |
2030×630×980 |
720 |
|
WLDH -0.5 |
0.5 |
7.5 |
2320×730×1130 |
980 |
|
WLDH -1 |
1 |
11 |
2800×920×1320 |
1700 |
|
WLDH -1.5 |
1.5 |
11 |
3180×1020×1550 |
1800 |
|
WLDH -2 |
2 |
15 |
3310×1120×1640 |
2100 |
|
WLDH -3 |
3 |
18.5 |
3750×1290×1820 |
3000 |
|
WLDH -4 |
4 |
22 |
4220×1400×1990 |
3980 |
|
WLDH -5 |
5 |
22 |
4220×1500×1990 |
4620 |
|
WLDH -6 |
6 |
30 |
4700×1610×2260 |
6180 |
|
WLDH -8 |
8 |
37 |
4420×2150×2470 |
8200 |
|
WLDH -10 |
10 |
45 |
5520×2960×2720 |
8920 |
|
WLDH -12 |
12 |
45 |
5720×3010×2840 |
9520 |
|
WLDH -15 |
15 |
55 |
5840×3540×2940 |
9950 |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship WLDH -1.5 Powder Ribbon Mixing Machine by sea way.
Our Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
In order to help client choose suitable machine model and help us service for you better, please kindly provide below information. Thanks in advance.
1)What kind of products will be mixed: our mixing machine can mix dry powder or granules, or paste material or mixing powder which needs to add liquid.
2)The mixing material is dry or wet?
3)Required production capacity.
