V-1000 Type Large Mixer Machine
- 50 Set / Sets per Month
- Shenzhen/Shanghai/Ningbo
- T/T Credit Card PayPal
Product Details
Condition: | New | Product Type: | Other, Pharmaceutical, food, chemical | Application: | Powder |
Additional Capabilities: | Other, Mixing machine | Place of Origin: | Guangdong, China | Brand Name: | NOAH |
Model Number: | V - 1000 | Max. Loading Capacity: | 600L | Voltage: | 380v, 50hz |
Power(W): | 4000 | Dimension(L*W*H): | 3000*1850*2050mm | Certification: | CE, GMP |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

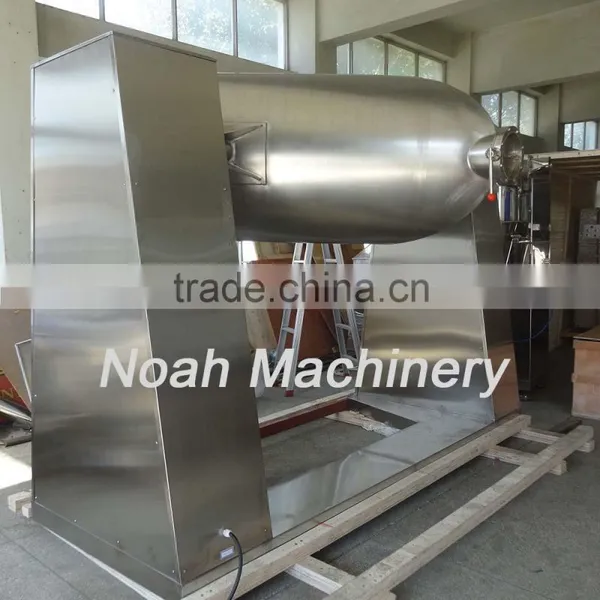

V-1000 Type Large Mixer Machine
Applications:
The V-1000 Type Large Mixer Machine is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries
Working principle:
Featuring unique structure, high mixing function and uniform mixing, the mixing barrel is made of stainless with polished internal and external walls, and this machine has beautiful appearance, uniform mixing and wide application

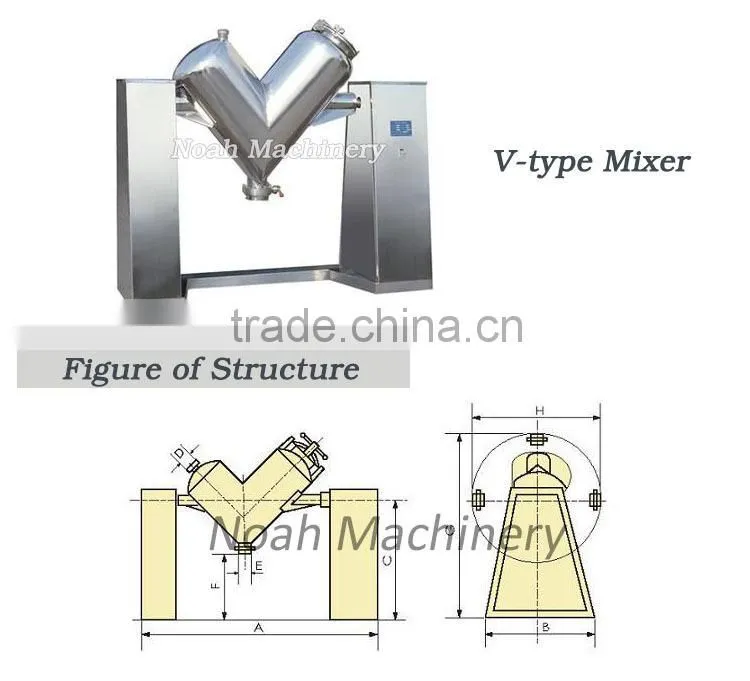

Main technical specifications:
Model | volume of | Rotor speed (r.p.m) | Power (kw) | coefficient | Overall dimesions (mm) | Net weight (Kg) |
V-2 | 2 | 15 | 0.37 | 40%~60% | 630×380×500 | 50 |
V-5 | 5 | 15 | 0.37 | 40%~60% | 660×400×520 | 60 |
V-20 | 20 | 15 | 0.55 | 40%~60% | 950×450×770 | 75 |
V-60 | 60 | 15 | 0.75 | 40%~60% | 1300×520×1100 | 150 |
V-120 | 120 | 15 | 1.5 | 40%~60% | 1770×700×1400 | 350 |
V-150 | 150 | 15 | 1.5 | 40%~60% | 2000×750×1550 | 400 |
V-180 | 180 | 15 | 1.5 | 40%~60% | 2070×780×1600 | 450 |
V-500 | 500 | 15 | 1.5 | 40%~60% | 2650×1000×2020 | 500 |
V-1000 | 1000 | 12 | 4 | 40%~60% | 3000×1850×2050 | 820 |
V-1500 | 1500 | 10 | 4 | 40%~60% | 3150×2000×2050 | 900 |
V-2000 | 2000 | 10 | 4 | 40%~60% | 3400×2400×2650 | 1000 |
V-2500 | 2500 | 9 | 4 | 40%~60% | 3700×2800×3000 | 1100 |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship V-1000 Type Large Mixer Machine by sea way
About us:Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
