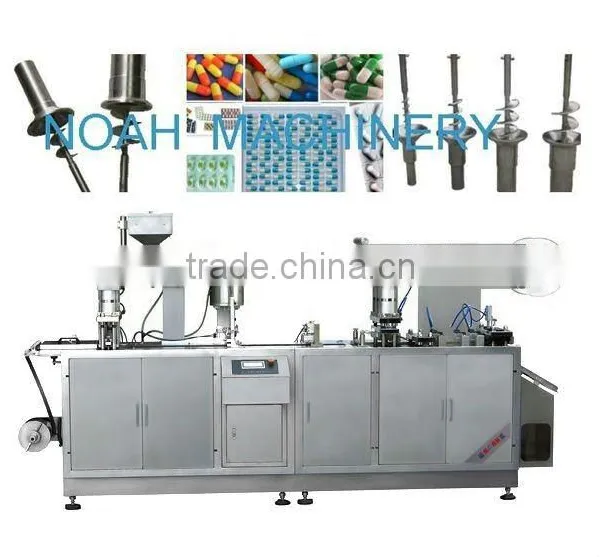

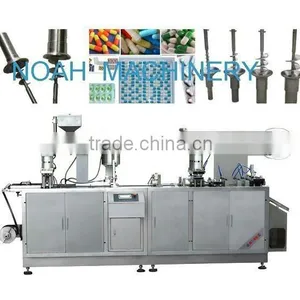

Alu-Alu blister packing machine
Applications:
Automatic blister packing machine/medicine packing machine/ flat-plate blister packing machine/Alu-Alu blister packing machine is a latest high-precision medicine packing machine in current pharmacy industry.
It is widely used for capsule, tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate in food industry, for injector, syringes, pins, small component etc. in electron or hardware industry as all kind of shapes of ALU-ALU,ALU-plastic, paper-plastic combined sealing packing.
Features:
1.The key electric appliance of his machine adapts PLC processor, temperature modular, touch screen to operate, high quality product, can be equipped with cursor device etc. as customer`s requirement.
2.Machine-tool track type of casting machine-base, taken these processing like backfire, maturing, high benchmark and without distortion.
3.Each box of section processed through professional equipment, to assure high precision and good exchangeability.
4.Forming, sealing, slitting etc. parts are all could be adjust freely on the track with triangle string and flat string, strong applicability. small oversize, save installation space.
5.Reducer adapts parallel-axes bevel wheel, to avoid loose and smooth between chain or strap when it is driving.
6.Stroke can be adjust freely, widely used, ease of operation, stable running.
7.It adapts up and down net pattern concavo-convex to conjugate, multi-step air cylinder, double-heat sealing. Quality sealing.
Main technical specifications:
Cutting Frequency(times/min) |
6-35(I) 20-60(II) |
Capacity (strip/h) |
8400(I) 12000(II) |
Max shaping areas and depth(mm) |
240*160*26 |
Stroke(mm) |
20-120(can be manufactured as user`s requirements) |
Standard Sheet(mm) |
80*57(can be manufactured as user`s requirements) |
Air Pressure(kw) |
0.4-0.6 |
Total power |
380V/220V 50Hz 6kw |
Pressure(kw) |
1.5 |
PVC hard pieces(mm) |
0.15-0.5*250 |
PTP Aluminum Foil(mm) |
0.02-0.035*250 |
Dialysis Paper(mm) |
50-100g*250 |
Mould Cooling |
tap water or back water |
Overall Dimensions(mm) |
2710*720*1600 |
weight |
1600 |
packing : wooden packing
