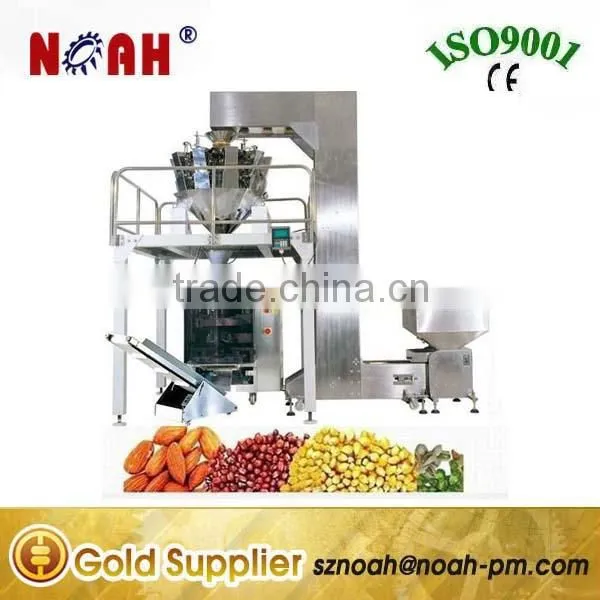

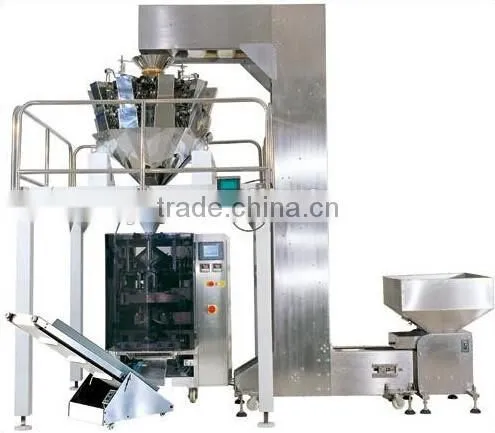

Combined Weighing Packing Machine(Full Automatic)
Use
Features
1.Imported PLC control system, simple-operating, visual touch screw.
2.Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.
3.Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4.Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5.When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6.Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags.
Main Technical parameter
Packing speed |
15-70bags/min |
Bag-making size |
(L)80-300mm(W)80-200mm |
Filling range |
150-2000ml |
Packing materials |
OPP/CPP PET/PE and other comppsite material |
Film width |
180-420mm |
Film thickness |
0.04-0.08mm |
Air consumption |
0.36m3/min 0.6MPa |
Power supply |
AC220V 50/60Hz 3.5kw |
Machine dimensions |
(L)1750×(W)1050×(H)1500mm |
Machine weight |
500kg |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship Combined Weighing Packing Machine(Full Automatic) by sea way.
Documents:
Operational manual with English will be given at the time of dispatch of machine.
Guarantee:
All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
Service:
Service after sell for free for one year, and with spare parts for one year(except human reason broken and easy broken parts).
If you need, we can dispatch our engineer to install and test machine in your country. But our clients need to pay relative fees of our engineer. Our quotations will not include these fees.
Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
