Mini Electronic Counting and Filling Machine

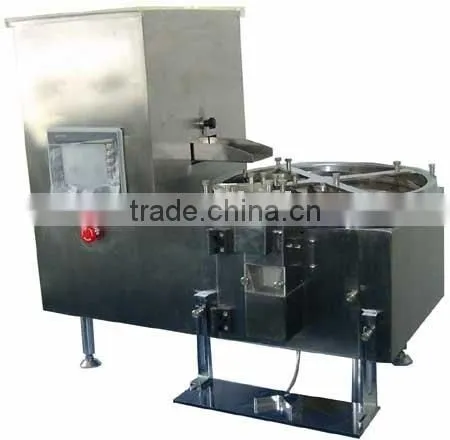

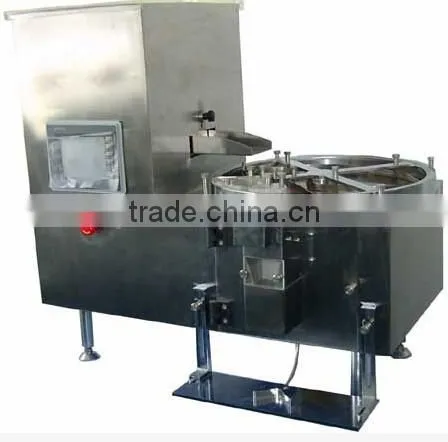

Mini Electronic Counting and Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Medical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Medical
Packaging Type Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V Single phase 50HZ.
Power 500W
Place of Origin Jiangsu, China
Brand Name NOAH
Dimension(L*W*H) 900*600*900MM
Weight 100kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Mini Electronic Counting and Filling Machine



Applications:

Our Mini electronic counting and Filling Machine is widely applied for tablet or capsule counting for mini production in hospital, small pharmaceutical factory etc.

It adopt CCD sensitization technology, PLC control, human and machine interface operating system count automatically, put bottle by manual and fill medicine automatically, high differentiate rate, fast responding speed, count accurately, it is no need to change mould when change the type of medicine. And it can set the filling quantity in the touch screen.


Technical Date:

counting plate diameter

Ø360mm

Suitable size : Tablet diameter

Tablet diameter 5mm - 12mm ,Capsule :0# - 5#

hole quantity of the plate

5-100 optional

Product capacity

12-26 bottle (bag) / min ,20ml ---300ml .60000 pcs /hour

Motor power

550W

Power

220V Single phase 50HZ.

Out size

900*600*900

Net weight

100kg
