Home > Products > Filling and packing machine > DX-520 Automatic Foodstuff/Herb/Peanuts Bag Packing Machine

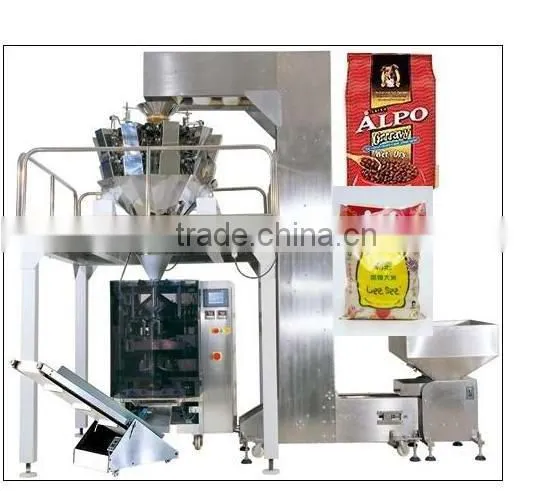

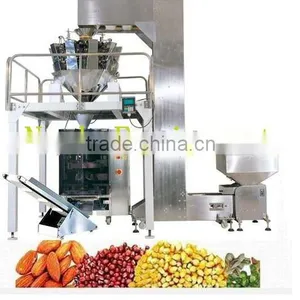

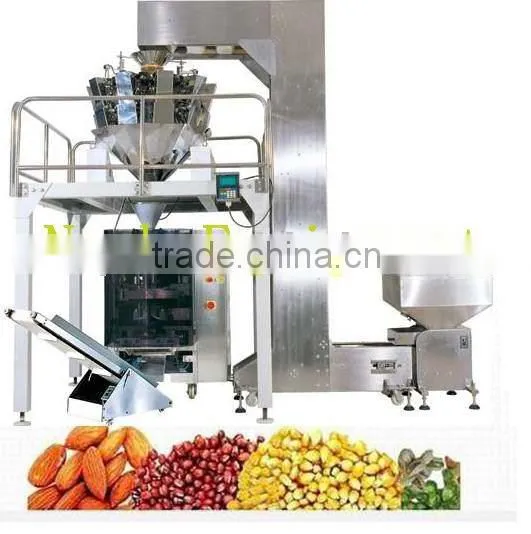

DX-520 Automatic Foodstuff/Herb/Peanuts Bag Packing Machine
- 25 Set / Sets per Month
- Shanghai Shenzhen Ningbo
- T/T Credit Card PayPal
-
Inside and outside bag packaging line Healthy teatriangle packaging linkage line
-
Pharmaceuticals industrypackaging assembly line Packaging production line
-
China teatriangle packaging linkage line Green teainternal and external package linkage line
-
Packing and palletizing linkage line Beverage industrybox and palletizing production line
-
Pharmaceuticals industrypackaging linkage line Packaging production line
-
Box code stack production line Beverage industrybox and palletizing assembly line
Product Details
| Condition: | New | Application: | Chemical, Medical, Other, Food, Chemical, Medical, automatic packaging particle, Food | Packaging Type: | Other, according to the customers |
| Packaging Material: | Other, OPP/CPP PET/PE and other comppsite material | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | AC220V 50/60Hz | Power: | 3.5kw | Place of Origin: | Guangdong, China |
| Brand Name: | NOAH | Model Number: | DX-520 | Dimension(L*W*H): | 1750*1050*1500mm |
| Weight: | 500kg | Certification: | CE, ISO9001 / CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
DX-520 Automatic Foodstuff/Herb/Peanuts Bag Packing Machine
Use:
Features:
1.Imported PLC control system, simple-operating, visual touch screw.
2.Servo film feeding system, correct register, sealing and cutting positions adopt automatic correction device, high automation.
3.Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.
4.Perfect automatic alarming protective function, reduce the consumption up to the lowest.
5.When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
6.Type of bag making: according to customer's demand, the machine can produce pillow bags, punched hanging bags.
Main Technical parameter:
Packing speed | 15-70bags/min |
Bag-making size | (L)80-300mm(W)80-200mm |
Filling range | 150-2000ml |
Packing materials | OPP/CPP PET/PE and other comppsite material |
Film width | 180-420mm |
Film thickness | 0.04-0.08mm |
Air consumption | 0.36m3/min 0.6MPa |
Power supply | AC220V 50/60Hz 3.5kw |
Machine dimensions | (L)1750×(W)1050×(H)1500mm |
Machine weight | 500kg |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship DX-520 Automatic Foodstuff/Herb/Peanuts Bag Packing Machine by sea way.
About us:
Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.
Our production, examination and supervision are strictly following the ISO9001 international quality system. Owing to high quality, beautiful appearance, warm service and reasonable price, Nuoya products have earned high confidence and reputation in the International market. Currently, Products have sold to America, Australia, Canada, Germany, New Zealand, Russia, dozens of countries and regions.
