FCM 8/2 Auto Filling-Capping Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Medical
Driven Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solid Measuring and Packaging Production LineNegotiableMOQ: 1 Set -
DPB140 Automatic Blister Packing Machinery For PillNegotiableMOQ: 1 Set
-
ZH90 Automatic Encasing MachineNegotiableMOQ: 1 Set
-
FCM 8/2 Auto Liquid Bottling Filling MachineNegotiableMOQ: 1 Set
-
ZH90 Automatic Box Packing MachineNegotiableMOQ: 1 Set
Condition
New
Application
Chemical, Medical
Driven Type
Electric
Automatic Grade
Automatic
Power
2.2KW
Packaging Type
Bottles
Packaging Material
Metal
Place of Origin
Guangdong, China
Brand Name
NOAH
Model Number
FCM 8/2
Dimension(L*W*H)
2200*1200*1600mm
Certification
CE

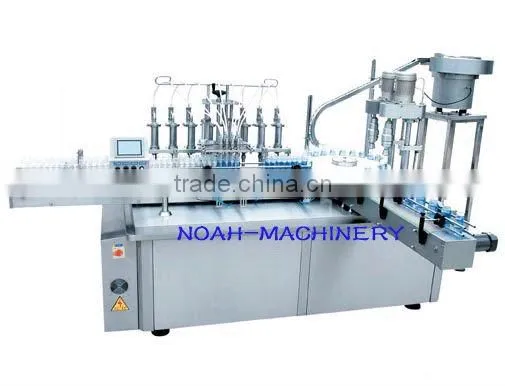

FCM 8/2 Auto Filling-Capping Machine
Applications:
FCM8/2 Auto Filling-Capping Machine is suitable to the material :coating agent ,
suspension agent, edible oil ,lubricating oil and water agent etc.
Characteristic:
1.SS316L piston pump fills high precision suitable for oral liquid and light liquid with viscosity.
2.This machine is compact design, streamline bottle conveying, more stable.
3.No bottle no fill function.
4.Auto frequency conversion adjusting speed.
5.Auto display and count.
6.Rolling sealer uses single flexible knife with 12 rolling heads, one machine can auto entry, filling, adding cap, and sealing smoothly.
7.One machine can auto entry, filling adding capper, and sealing.
8.The whole machine is designed according to the requirements of GMP.
Main Technical Specifications:
Item |
FCM 8/2 |
Number of filling heads |
8 heads |
Number of twisting heads |
Double heads |
The range of filling |
20~1000ml |
The range of perfect |
20-100ml 50-250ml100-500ml200ml-1000ml |
The choice of cover |
Burglarproof cover,screw cover ,ROPP aluminium cover |
Production capacity |
3600~5000(bottles/hour) |
Measure precision |
≤±1 |
The rate of eligible |
≥99 |
Power |
220V 50/60Hz |
Total Power |
≤2.2kw |
Air Pressure |
0.4~0.6MPa |
Weight |
1000kg |
External dimensions (mm) |
2200×1200×1600 |
