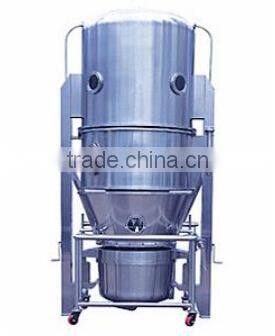

GFG Fluid Bed Dryer
Applications:
1. This fluid-bed is round structure so as to avoid died corner
2. In the bed there is stirrer. It avoids agglomeration of damp material and forming channel flow during drying
3. The bag filter at top is made from anti-static special fiber. The operation is safe
4. Discharged by turning over. It is quick, and fully
5. Operated at sealed negative pressure and designed by GMP
6. The machine can also be designed to feeding and discharge automatically in accordance with requirements
7. Quick drying speed, uniform temperature. In general, the drying time each batch is about 20 ~ 30 minutes
Technical data:
Specification |
120 |
Capacity |
120kg/batch |
Power of fan |
18.5kW |
Power of stirring |
1.1kW |
Rotating speed of stirring |
11rpm |
Consumption of steam |
170kg/h |
Working time |
15-30min |
Service:
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of tablets / pills. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make dies for customers.
