Hydraulic Swing Arm Cutting Machine For foam
- 100 Set / Sets per Month
- shanghai
- T/T
Product Details

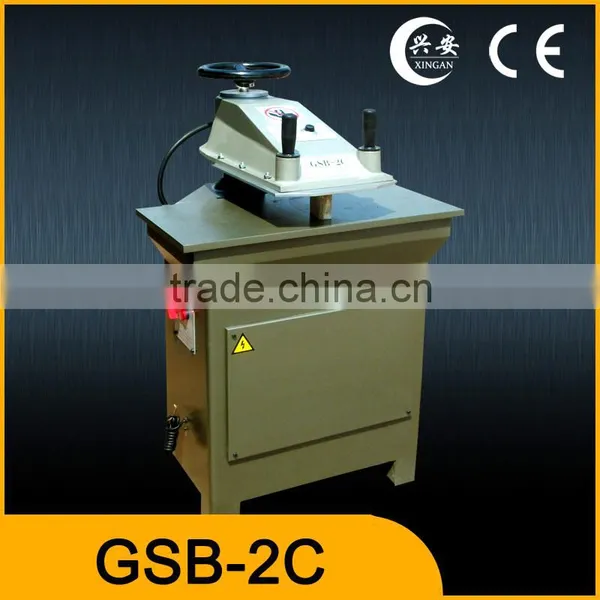

Place of Origin: | Jiangsu, China | Brand Name: | Xing'An | Model Number: | GSB-2C |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!
foam cutting machine
1. This machine is made of cast iron. High quality and durable.
2. Cutting moulds of different heights can be used without any adjustment.
3. It is equipped with an automatic lubricating system which reduces wear and prolongs its service life.
4. Pressure Sensor can adjust the cutting force according to different cutting materials.
5. High speed, low energy consumption, less failure and easy maintenance.
6. Hydraulic Press Machine for Footwear Materials with special specifications is available on request.
It is used to cut vamp, sole, leather, rubber, chemical fiber, hand paper, cotton textile, etc.
What Specifications of our cutting machie?
Technical Parameters foam cutting machine
Model number | GSB-2C/10 | GSB-2C/12 | GSB-2C/16 | GSB-2C/200 |
Maximum cutting force | 100KN | 120KN | 160KN | 200KN |
Seissor speed | 0.10m/s | 0.098m/s | 0.10m/s | 0.10m/s |
Stroke adjustment | 5-75mm | 5-60mm | 5-75mm | 5-75mm |
Distance between upper table and lower table | 60-120mm | 60-120mm | 65-150mm | 65-150mm |
Last work set size | 400*800mm | 400*900mm | 450*900mm | 500*1000mm |
Overall dimension | 850*700*1250mm | 900*800*1300mm | 900*900*1380mm | 1000*900*1380mm |
Electric suppl voltage | 3*440/415/400/380/220/200V,50/60Hz Single phase240/220V,50/60Hz | |||
MOQ | 1 | 1 | 1 | 1 |
Motor power | 0.75KW | 1.1KW | 1.1KW | 1.5KW |
Use and character foam cutting machine
1. This machine is made of cast iron. High quality and durable. |
2. Cutting moulds of different heights can be used without any adjustment. |
3. It is equipped with an automatic lubricating system which reduces wear and prolongs its service life. |
4. Pressure Sensor can adjust the cutting force according to different cutting materials. |
5. High speed, low energy consumption, less failure and easy maintenance. |
6. Hydraulic Press Machine for Footwear Materials with special specifications is available on request. |
Why Choose Us? foam cutting machine
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by Email or Telephone.
3. 24hour technical support on Internet or by Telephone, free instructions and problem solving.
How to choose the most suitable hydraulic die cutting machine for your business?
1)material: nonmetal
2)Cutting area depends on your material size.
3)Feeding system depends on your material style ( rolls or sheets).
4)The force depends on the perimeter of the die blade.
Welcome to contact us for select the right model.
Remark: We can make the machine according to your specifically order, for example the color, the motor information ,the working table etc.

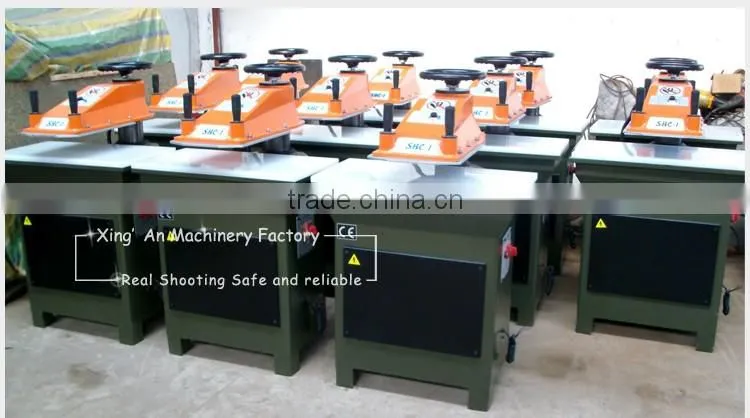

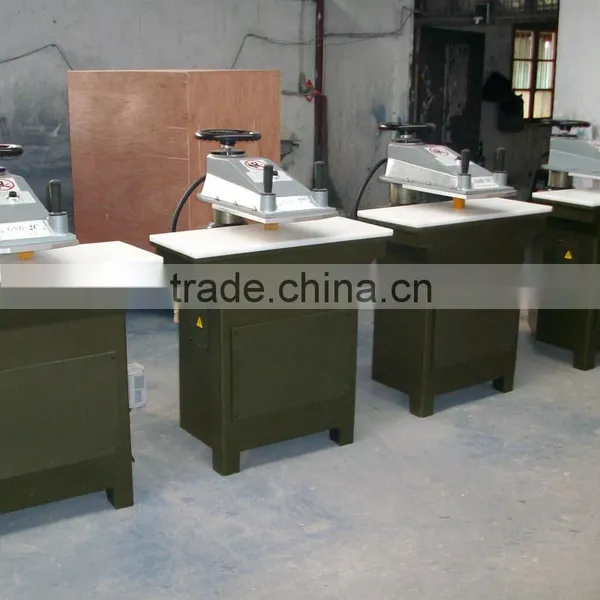

working show foam cutting machine
Field trips foam cutting machine
1.Q:Are you a factory or tarding company?
A:We are a factory
2 Q:What is your MOQ of this item?
A: 1 set per style
3 Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
4 Q:Why we choose Xingan?
A:16 years experience of cutting machine industry.
Factory direct sales,best price.
Fast,safe and timely transport supplies.
OEM and ODE service are availale.
5 Q: How to choose the most suitable machine for your business?
A: 1.Tell us the materials you use.
2.The size and thickness about your materials.
3.Which automatic grade you need, automatic or manual?
4.The perimeter of the die cutter you use, our factory also can produce the dies for your machine
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
Contact Us
- Yancheng City Xingan Machinery Factory
- Contact namejinsong zhu
- Phone0086-0515-88802628
- AddressFugang Industry Park,Dagang Town Yancheng,Jiangsu
