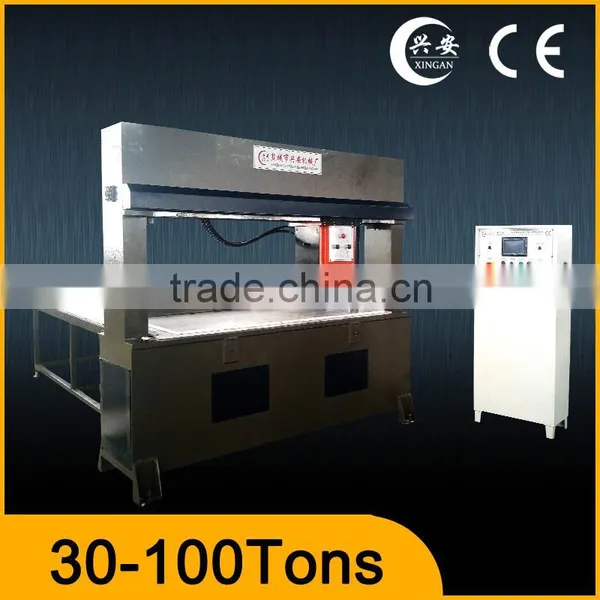

automatic hydraulic foam box inserts die cutting machine
- 10 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
Condition: | New | Type: | Hydraulic Cutting Machine | Application: | Foam |
Place of Origin: | Jiangsu, China | Brand Name: | Xing'an | Model Number: | XCLL4 |
Rated Power: | 3KW | Saw Blade Diameter: | 300mm | Voltage: | 220V/380V/415V |
Power(W): | 3KW | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Don't know how many ton you need?
Please contact us!
Don't know how the machine working?
Please contact us to see the video!

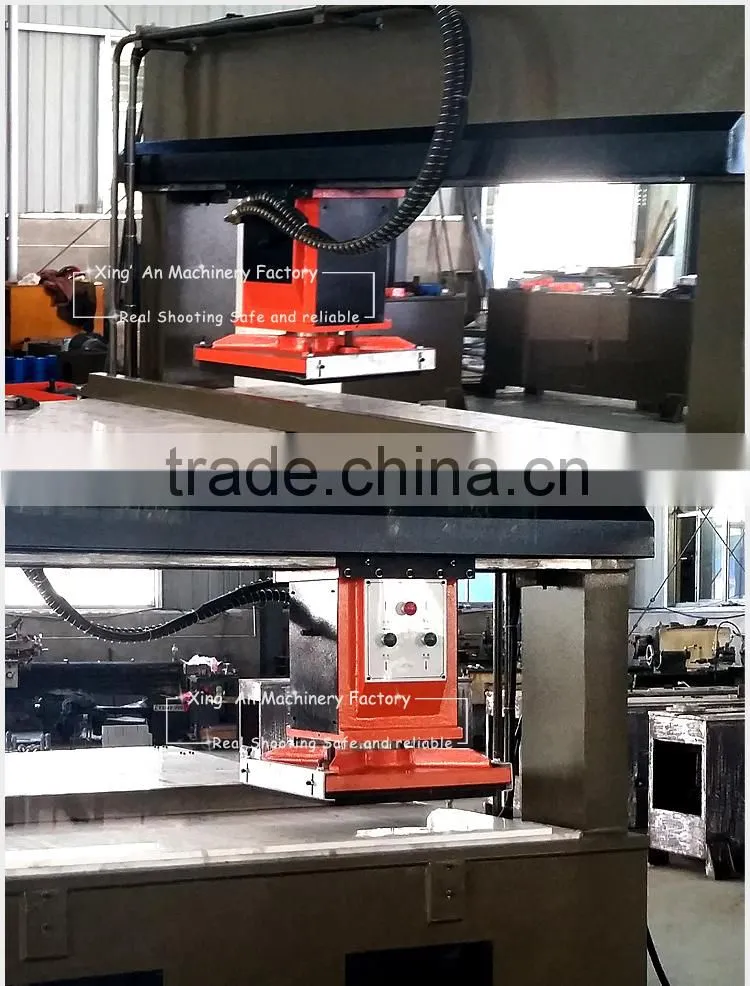

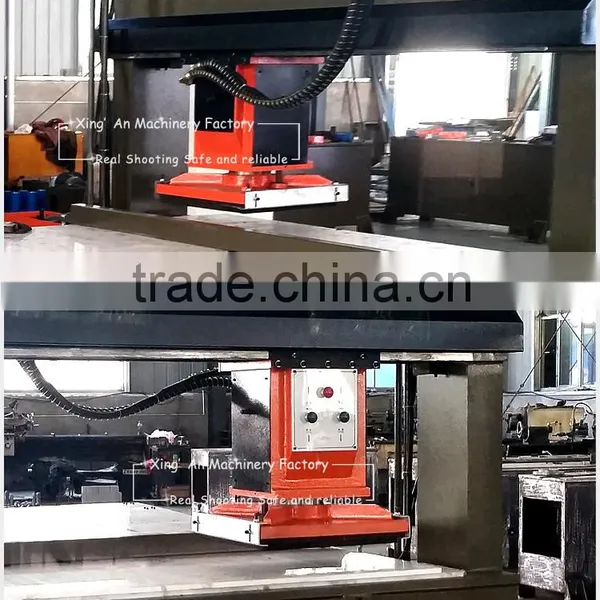

automatic foam box inserts cutting machine
Main configuration feature
1. This type is applicable to continuous cutting various non-metal roll or sheet materials with cutting die. It has high efficient and big output.
2. Whole unit applies PLC controller and human-machine interface operation. Horizontal moving is done by ball screw for transmission and by servo motor in driving to get high precision. Besides, the horizontal moving distance of press head can be input onto touch screen directly as per requirements.
3. Servo motor is applied to offer driving force. Ball screw rotates for fore-and-aft feeding actions. The feeding length can be input onto touch screen directly.
4.Working modes can be manual, automatic or jogging. Operators only need to pick finished products. This greatly raises the work efficiency and reduces labor intensity.
5.Main machine uses traveling head frame structure for high strength and no deformation.
6.Using fly wheel energy-storage can realize hi-pressure cutting, save power energy and don’t worry about rising oil temperature.
7.The special stroke setting unit matched cutting dies to set height of cutting blade for easy and accurate adjustments on cutting.
8.All key sealing parts are imported from German. Key hydraulic parts and electrical are imported famous brands. We use hi-quality parts for the durable service and longer work life.
9.Hi-frequency treatments are done for cylinder and piston rod of main machine to guarantee machine’s service life10. All moving parts of machine are equipped with safety barrier to protect operator.
What Specifications of our cutting machine?
Technical Parameters automatic foam box inserts cutting machine
Model number | XCLL2-300 |
Max scissoring force | 300KN |
Distance between upper table and lower table | 40-165mm |
Table area | 1760*500 mm |
Press board(length*width) | 500*500 mm |
Main motor power | 2.2KW |
Auxiliary motor | 0.55KW |
Over all dimension | 2000*800*1980mm |
Use and character automatic foam box inserts cutting machine
It is used to cut a layer or multi-layers of leather,rubber,plastic,hard papers,fibers,chemical fibers,etc. |
1,It is easy to adjust low voltage and set travel. |
2,Rising position of press board can be set at random to lessen idle travel. |
3, Press board can be moved towards right or left operation visibility is very good. |
Why Choose Us? automatic foam box inserts cutting machine
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by Email or Telephone.
3. 24hour technical support on Internet or by Telephone, free instructions and problem solving.
How to choose the most suitable hydraulic die cutting machine for your business?
1)material: nonmetal
2)Cutting area depends on your material size.
3)Feeding system depends on your material style ( rolls or sheets).
4)The force depends on the perimeter of the die blade.
Welcome to contact us for select the right model.
Remark: We can make the machine according to your specifically order, for example the color, the motor information ,the working table etc.

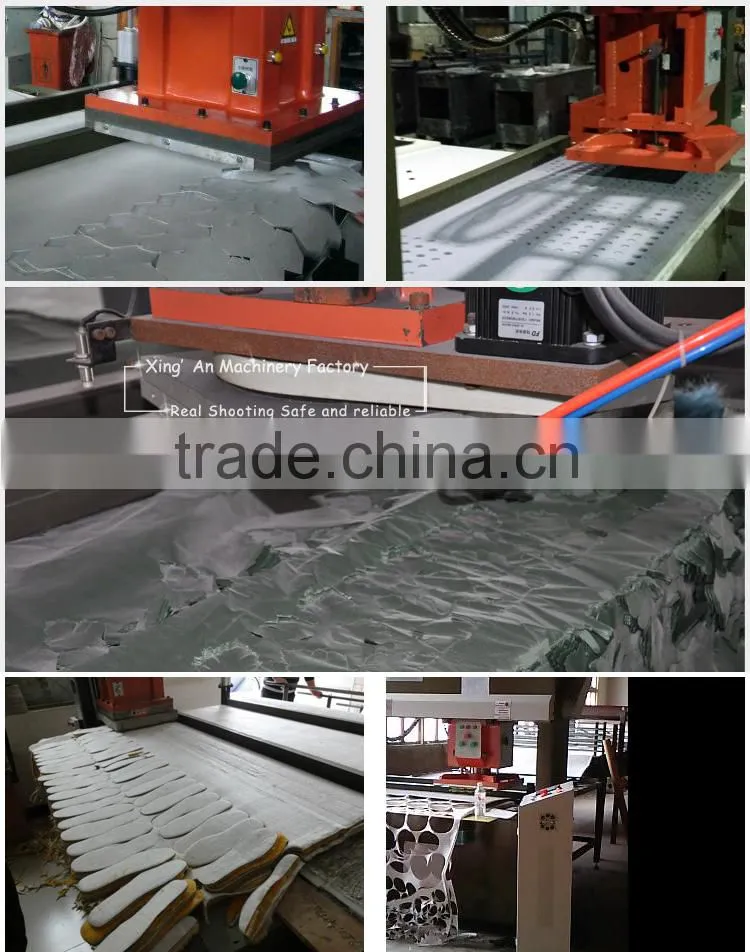

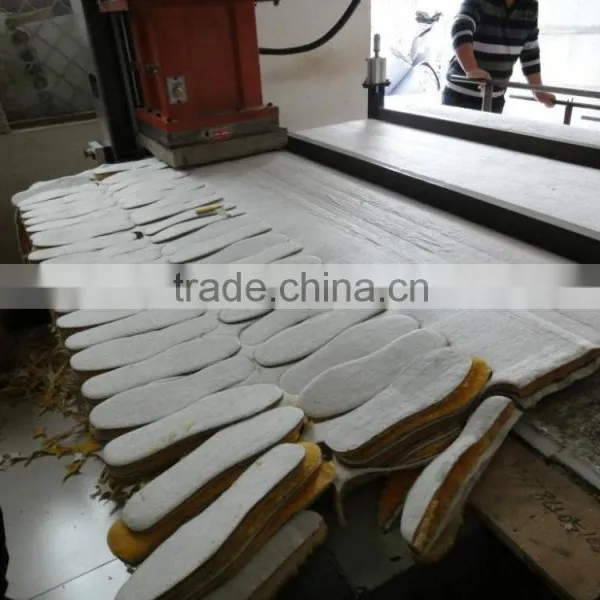

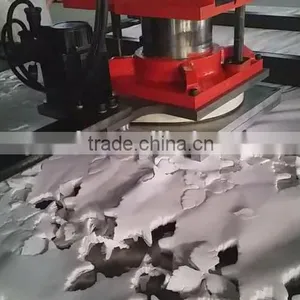

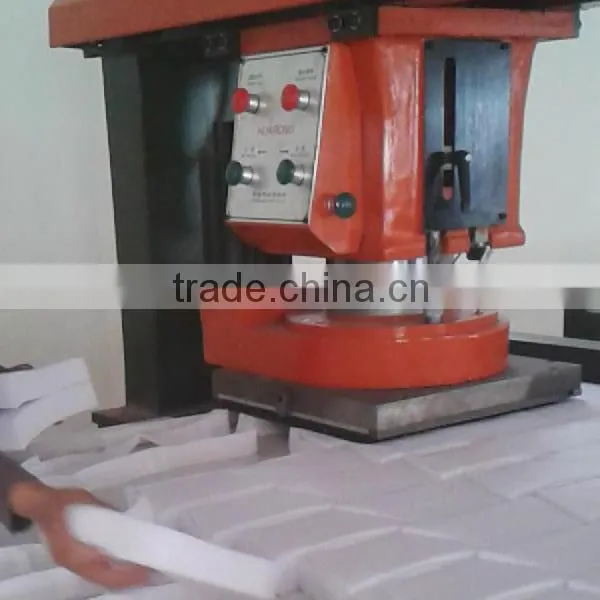

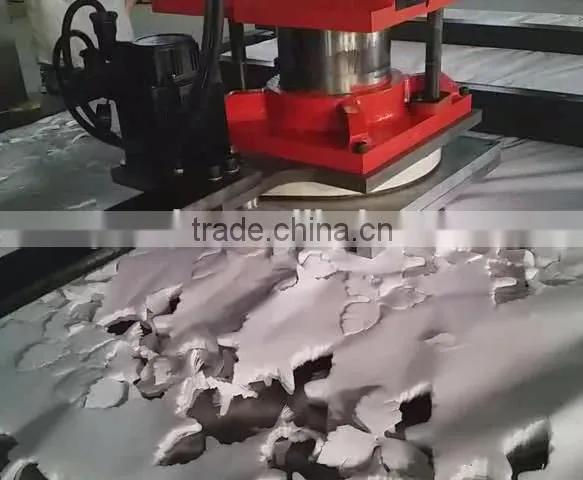

working show non woven roll cutting machine

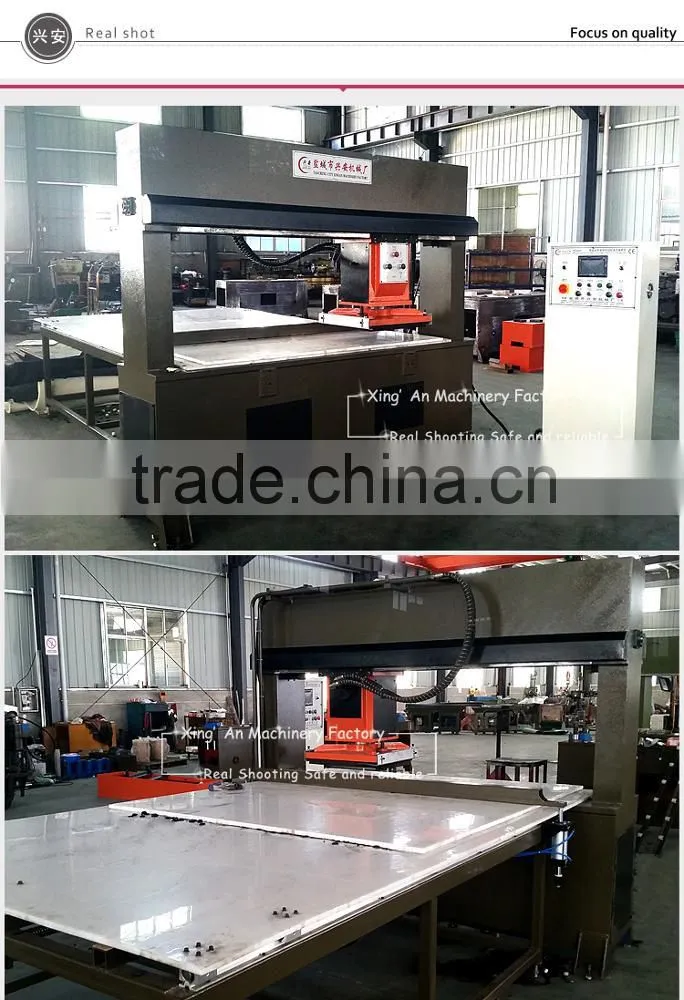

Field trips non woven roll cutting machine
1.Q:Are you a factory or tarding company?
A:We are a factory
2 Q:What is your MOQ of this item?
A: 1 set per style
3 Q: What are your payment terms?
A: 30% deposit and balance T/T before shipment or L/C at sight.
4 Q:Why we choose Xingan?
A:16 years experience of cutting machine industry.
Factory direct sales,best price.
Fast,safe and timely transport supplies.
OEM and ODE service are availale.
5 Q: How to choose the most suitable machine for your business?
A: 1.Tell us the materials you use.
2.The size and thickness about your materials.
3.Which automatic grade you need, automatic or manual?
4.The perimeter of the die cutter you use, our factory also can produce the dies for your machine
