New style new arrival interlocking brick making machine nepal
Introduction of interlocking brick making machine nepal:
QT9-15 Fully-automatic Concrete Block Making Machine is an improved production on the basic of QT8-15, while the process of cutting blocks, same number workers can increase 17% output, but don’t change the management costs, the factory area, labor costs, can make the production costs greatly reduced.
The machine can produce a larger products area due to the increase of mould effective area. QT9-15 fully-automatic concrete block making machine retain all the structure and advantage of QT8-15,mould vibrations with platform, forced feeding material,oil drive, the working principle of all computer control. QT9-15 fully-automatic concrete block making machine can combine a simple production line with PL1200 batching machine, JS500 forced double twin shaft mixer, 8 meter belt conveyor, pallet conveyor, block conveyor, 9-15 palletizing machine, 8-10 workers can make the production.
Product List
Component |
QTY |
Unit |
Automatic main block making machine(QT9-15) |
1 |
set |
Automatic pallet-conveyor |
1 |
set |
Automatic brick-conveyor |
1 |
set |
Automatic material feeding machine |
1 |
set |
Belt conveyor 8meter |
1 |
pcs |
Hydraulic station |
1 |
set |
Electric control Unit |
1 |
set |
One mould |
1 |
suit |
Control unit |
1 |
set |
Wearing parts |
1 |
suit |
Stacker |
1 |
set |
JS750 compulsory mixer |
1 |
set |
Barrow |
2 |
sets |
Free sets provided with the complete sets:
A. One set of mould;
B. 10 pcs of bamboo pallets;
C. Some gaskets, oil pipe joints, common use screws, brushes, tool box etc.
Specification of interlocking brick making machine nepal:
| Overall Dimension | 9350*2320*2950mm |
| Power | 40 KW |
| Molding pieces | 400*200*200 9pcs/mold |
| Productivity | 4000-5000pcs/day |
| Cycle Time | 25 seconds |
| Vibrating Frequency | 2800~4500 rolls/minute |
| Main vibration form | Platform vibration |
| Pallet Size | 1100*900mm |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, |
| garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. | |
| Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Productivity:
|
Sample |
Size |
Quantity |
Cycle moulding |
Per hour |
Per day |
|
Hollow brick |
|
400*200*200 |
9 |
15s |
1290pcs |
12900pcs |
|
400*150*200 |
14 |
15s |
2006 pcs |
20066pcs |
|
Standard brick |
|
225*112.5*60 |
25 |
15s |
4800pcs |
48000pcs |

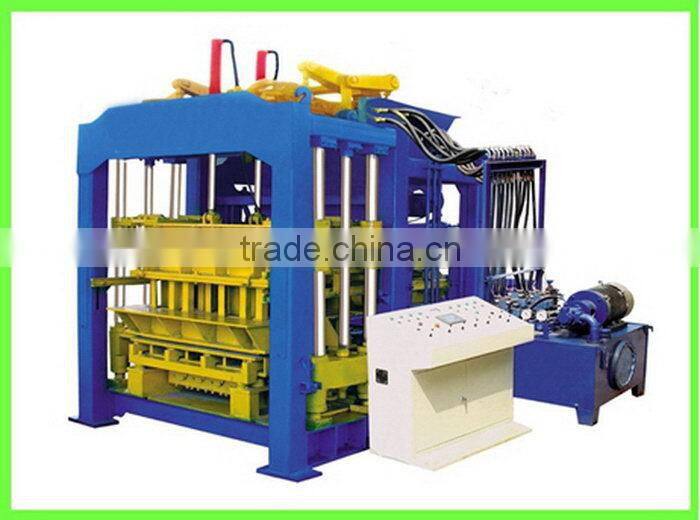

Picture of interlocking brick making machine nepal:
Products Related:
Process Flow:
Raw Material:
Scale of raw material
1. 8%-10% cement ,30%-40% sand, 50%-60% stone(less than 15mm)
2. 8% cement,60% sand,Fly ash 30%,2% gypsum.
Delivery Terms:
1.Price is based on FOB QingDao ,China
2.Payment:by irrevocable letter of credit,payable at sight for full amount of invoice value ,or T/T, 30% down payment,70% upon machinery completion.
3.Delivery:30 days upon receipt of down payment or L/C at sight.
4.Shipping Marks:We will send engineers and one translator to install the equipment;The buyer shall bear all expenses (include:visa/flight ticket/hotel/food/traffic, and extra subsidy usd 50/day/person for the first week,usd 100/day/ person fo later time)
5.We test brick making for every machine before delivery
6.Voltage and Hertz Demand: Depended on customer.
Guarantee and warranty:
1.Free technical training.
2.The machine lifetime warranty.(our maintenance team can go to your country at any time)
Certificates:
